Acerca del producto

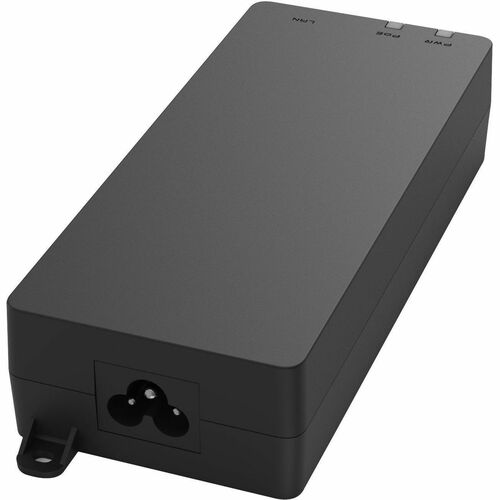

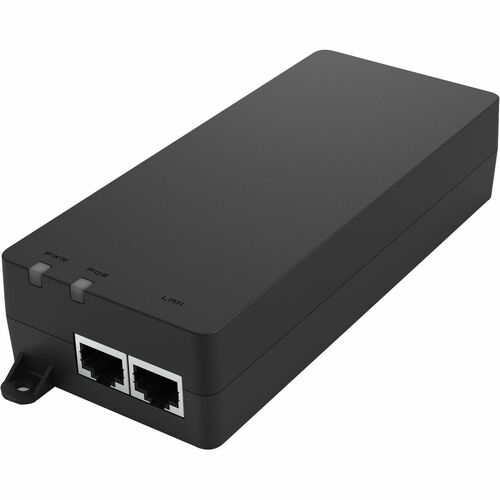

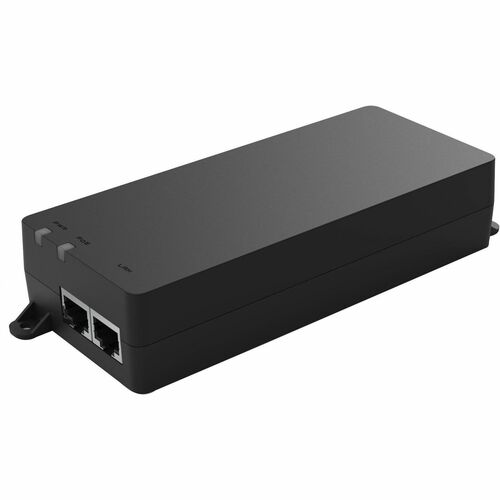

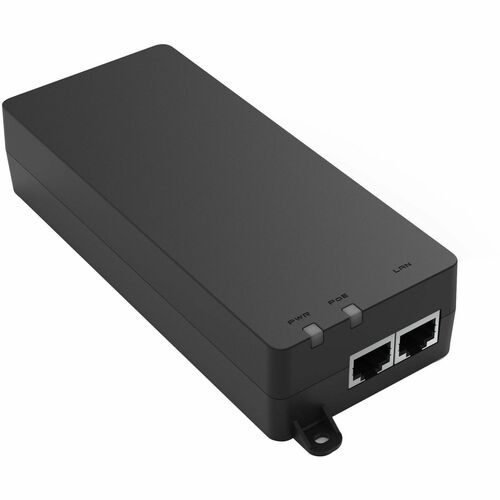

The EnGenius EPA5090XBT PoE Injector delivers 90-watts of power and 10Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
- IEEE 802.3bt Type 3 & 4 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE while future proofing network with up to 10Gb bandwidth
- Supports 10/100/1000 Mbps and 2.5/5/10 Gbps applications
- Output power up to 90W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE of up to 90W with full power capabilities
- Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
Especificaciones técnicas
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-x |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Physical Characteristics | |
| Weight (Approximate) | 12.50 oz (354.37 g) |
| Length | 5.90" (149.86 mm) |
| Height | 1.34" (34.04 mm) |
| Width | 2.56" (65.02 mm) |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Maximum Input Current | 950 mA |
| Maximum Output Power | 90 W |
| Technical Information | |
| Protection Type | Over Current |
| Over Voltage | |
| Surge Protection | |
| Short Circuit | |
| General Information | |
| Product Type | PoE Injector |
| Manufacturer Part Number | EPA5090XBT |
| Manufacturer Website Address | http://www.engeniustech.com |
| Packaged Quantity | 1 |
| Manufacturer | EnGenius Technologies, Inc |
| Product Model | EPA5090XBT |
| Product Name | EPA5090XBT PoE Injector |
| Brand Name | EnGenius |
