Acerca del producto
The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).
The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

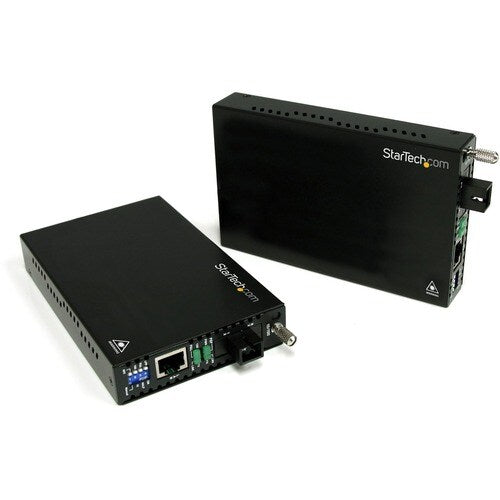

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

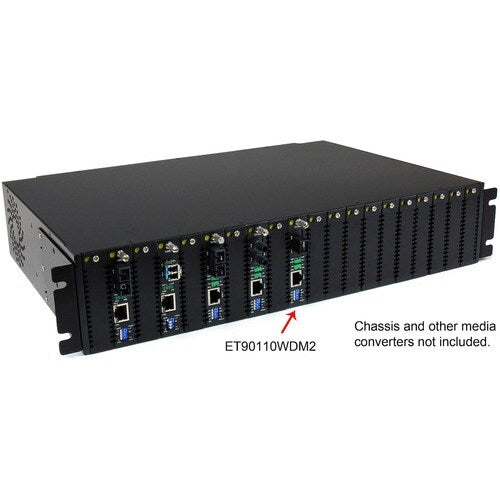

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for full-duplex bi-directional communication
- Kit includes local and remote converter module for a complete solution
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- Maximum Fiber Cable Length of 20 Km
- Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
- Supports full or half-duplex operation
- Easy to use and install
Especificaciones técnicas
| Network & Communication | |
| Network Technology | 100Base-FX |
| 10/100Base-TX | |
| Ethernet Technology | Fast Ethernet |
| Power Description | |

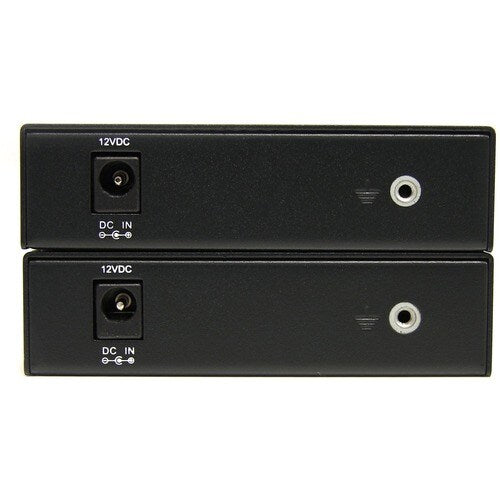

| Input Voltage | 12 V DC |
| Power Source | AC Adapter |
| Power Consumption | 19.20 W |
| Plug/Connector Type | Type M |
| Media & Performance | |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
| 0.06 mil (0 mm) | |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | ET90110WDM2 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 2.70 lb (1224.70 g) |
| Form Factor | Rack-mountable |
| Desktop | |
| Height | 1" (25.40 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 6.30" (160.02 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | ETCHS2U Rackmount Chassis |
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
