Acerca del producto

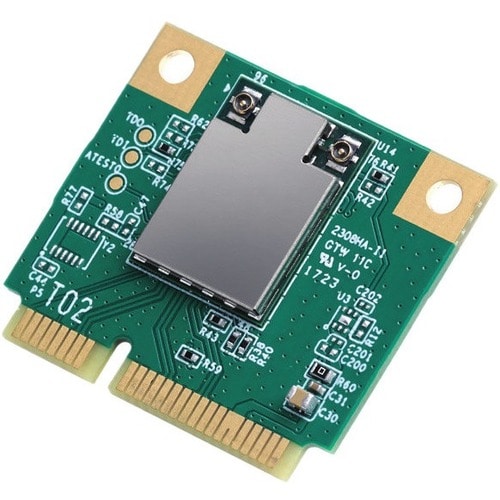

EWM-W168H01E is IEEE 802.11 a/b/g/n/ac PCIE WIFI with Bluetooth 4.2 combo HMC with a highly integrated single-chip MIMO (Multiple In, Multiple Out) wireless local area network (WLAN) solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords
It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in s single chip. It enables a high performance, cost effective, low power, compact solution that easily fits onto the PCI Express and USB half mini cardIEEE 802.11 a/b/g/n/ac + Bluetooth 4.2 HS standard2Tx/ 2RxUp to 866.7 Mbps data rateWEP/WPA2, WAPI, 802.11iOperating temperature: 0 to 70° C
Especificaciones técnicas
| Interfaces/Ports | |
| Host Interface | PCI Express |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 0.16" (3.95 mm) |
| Width | 1.18" (29.85 mm) |
| Depth | 1.05" (26.65 mm) |
| General Information | |
| Product Type | Wi-Fi/Bluetooth Combo Adapter |
| Manufacturer Part Number | EWM-W168H01E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 Pack |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EWM-W168 |
| Product Name | 802.11 a/b/g/n/ac + Bluetooth 4.2 Half-size Mini PCIe Card |
| Brand Name | Advantech |
| Technical Information | |
| Wireless Transmission Speed | 866.70 Mbit/s |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac |
| Bluetooth Standard | Bluetooth 4.2 |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Wi-Fi Generation | Wi-Fi 5 |
