Switches & Hubs
Expected delivery 3 to 7 business days (exceptions applied)
Juniper

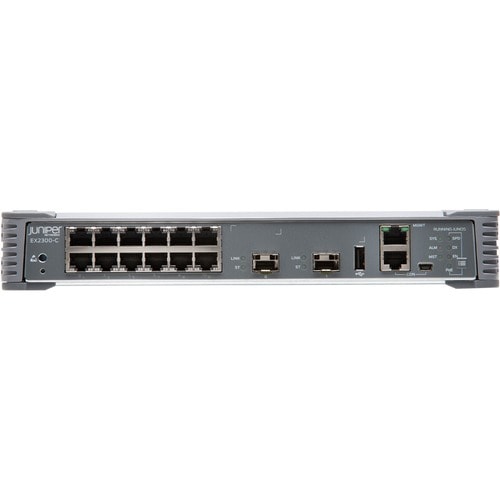

EX2300 COMPACTO SIN VENTILADOR 12 PUERTOS 10/100/1000BASE-T 2 X 1/10G SFP/SFP+
EX2300 COMPACTO SIN VENTILADOR 12 PUERTOS 10/100/1000BASE-T 2 X 1/10G SFP/SFP+
- Puerto Gigabit Ethernet para velocidades de red ultrarrápidas
- Puede funcionar como enrutamiento de capa 3 para un diseño de red escalable
- Admite conmutación de capa 3 para un mejor rendimiento y facilidad de uso.
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles
Recently Viewed
EX2300 COMPACTO SIN VENTILADOR 12 PUERTOS 10/100/1000BASE-T 2 X 1/10G SFP/SFP+
Resumen de información del producto
Acerca del producto
EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices.
Both models support Juniper's unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.
- Gigabit Ethernet port for ultra-fast network speeds
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 12 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 12 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Miscellaneous | |
| Certifications & Standards | |
| Environmentally Friendly | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 2.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 12 |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet Network |
| 2 x 10 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| 10GBase-X | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | EX2300-C-12T |
| Manufacturer Website Address | http://www.juniper.net |
| Manufacturer | Juniper Networks, Inc |
| Product Model | EX2300-C-12T |
| Product Name | EX2300-C Compact Ethernet Switch |
| Product Series | EX2300-C |
| Brand Name | Juniper |
| Physical Characteristics | |
| Weight (Approximate) | 5.45 lb (2472.08 g) |
| Form Factor | Rack-mountable |
| Magnetic Mount | |
| Wall Mountable | |
| Height | 1.72" (43.69 mm) |
| Width | 10.98" (278.89 mm) |
| Depth | 9.40" (238.76 mm) |
| Compatible Rack Unit | 1U |
