SKU DEL CHASIS PARA EX4100-H-12MP

EX4100-H Ethernet access switches: Ruggedized and reliable Fanless, secure, and cloud-ready design: Tailored for harsh indoor and outdoor environments where extended temperature, potential physical impact, and vibration conditions are common Use case examples: - EV charging stations - Petrol/gas stations - Industrial automation and manufacturing - Remote surveillance - Transportation (rail, marine, automotive) Integrated with Juniper Mist Wired Assurance for seamless cloud management Leverages Mist AI to simplify operations and enhance device visibility Delivers high-quality network services in extreme conditions including freezing and scorching temperatures.

Product description

The Juniper Networks® EX4100-H ruggedized line of Ethernet switches offers a fanless, secure, cloud-ready portfolio of access switches with extended operating temperature range that is ideal for indoor and outdoor applications, such as EV charging stations, petrol/gas stations, industrial automation and manufacturing, remote surveillance, transportation (rail, marine, automotive), where extended temperature, potential physical impact, and vibration conditions are common. The EX4100-H switches combine the simplicity of the cloud, the power of Mist AI™ , and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-H line of switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features:

• Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
• Fanless switch with extended operating temperature range -40C to +75C
• Dry Contact Alarms: two in and one out
• Dual redundant PSUs: two AC PSUs or two DC PSUs or one AC and one DC PSU
• Junos feature parity with EX4100 switches
• Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
• Standards-based microsegmentation using group-based policies (GBPs)
• Switch-to-switch encryption using Media Access Control Security (MACsec) AES256
• IEEE 802.3bz Multigigabit
• IEEE 802.3bt Power over Ethernet Plus (PoE++)
• Flow-based telemetry to monitor traffic flows for anomaly detection and the ability to measure packet delays and report drop reasons
• Precision Timing Protocol-Transparent Clock
• 10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-H enables multiple deployments, including campus and branch. As scale requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100-H switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100-H family of Ethernet switches consists of the following models:

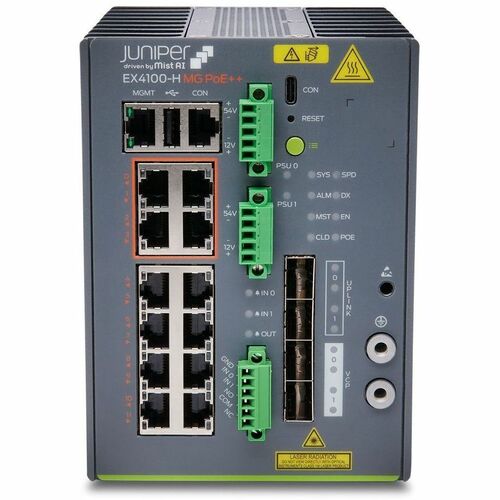

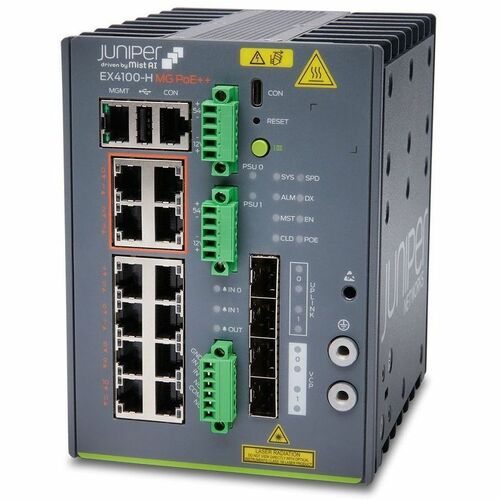

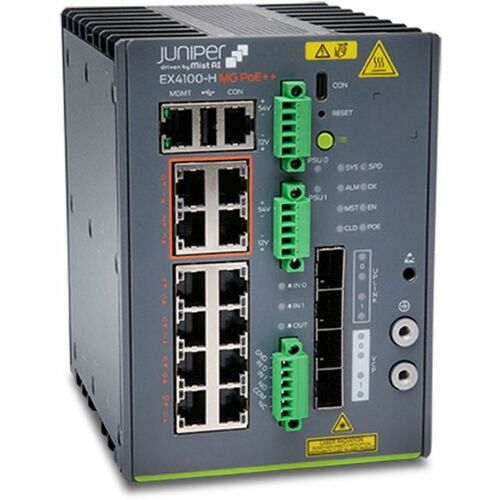

• The EX4100-H-12MP, offering 4 x 100MB/1GbE/2.5GbE and 8 x 10 MB/100 MB/1GbE PoE++ access ports, delivering up to 90 W per port with an overall total PoE budget of 360 W using two power supplies. A combination of two AC PSUs or two DC PSUs or one AC PSU and one DC PSU can be used at the same time. PSUs are external, hot swapable and field replaceable (FRU). It includes 2 x 1/10GbE SFP+ fixed uplink ports and 2 x 1/10GbE SFP+ ports to support Virtual Chassis connections that can be reconfigured for use as Ethernet ports for uplink connectivity.

• Can work as layer 3 routing for scalable network design
• Supports layer 3 switching for enhanced performance and usability
• Managed switch provides a reliable foundation for your network
• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
• Stack port provides an easy and hassle-free way to extend your office network
• Quickly and easily set up a wired network with 12 networking ports
• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 12 ports
• Cascade to other network devices through the uplink port to expand your local area network
