Simply Network Extension, Enhance Connectivity
Product Highlights

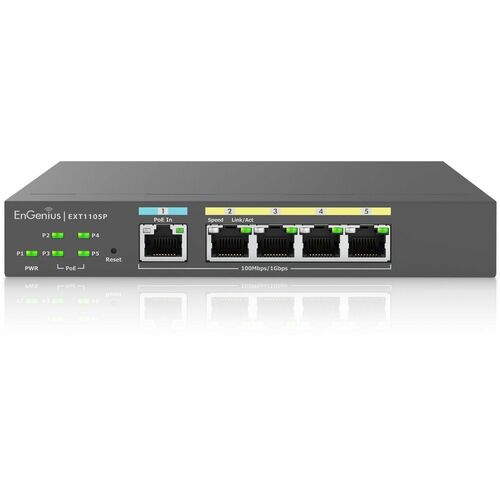

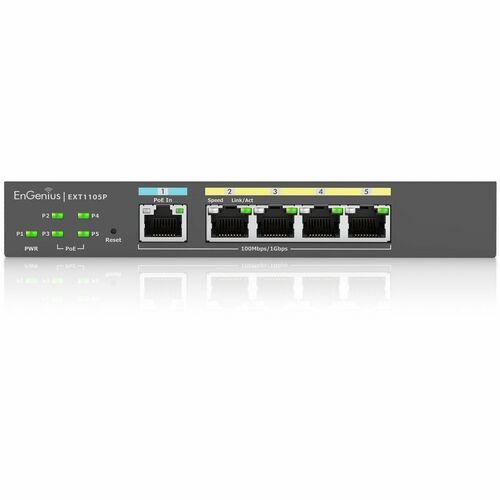

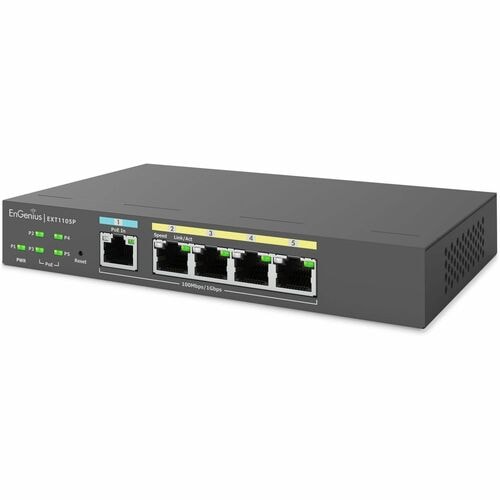

The EnGenius EXT1105P Cloud-Managed Switch Extender is a streamlined network expansion and connectivity enhancement solution designed to tackle power and connectivity challenges across diverse industries. With PoE technology and multiple PSE output ports, it eliminates network cabling and power wiring complexities and costs, offering a cost-effective, hassle-free way to extend your network reach and empower critical business applications.
Addressing Industry Challenges
Expanding networks, regardless of industry, poses significant hurdles, including:
Physical Distance: Covering vast areas requires flexible, simplified, long-distance deployment solutions.
Cost Constraints: Network expansion can be cost-prohibitive; the Switch Extender solution minimizes expenses.
Power Availability: The Switch Extender series' Power over Ethernet (PoE) technology effectively addresses power constraints and lack of power outlets.
Deployment Complexity: Technical intricacies are reduced through user-friendly design, cloud management, and simple deployment.
VLAN Trunking: Extending network segmentation to encompass every room, ensuring that each resident has VLAN-based personal networks within their apartments or dorms.
- 5x 10/100/1000 Base-T GbE ports
- Ports 2 through 4 are equipped with 802.3af/at PoE support, up to 30W per port
- Port 1 is PoE Input Port for Power and supports 802.3af/at/bt
- 10Gbps Switching Capacity
- Setup in minutes with app-based step by step instructions
- Quick-scan device register, remote monitoring, and troubleshooting
- Real-time system metrics, and remote configurations
- From anywhere cloud visibility and control
- IGMP snooping provides advanced multicast filtering & network efficiency
- Spanning Tree (RSTP) that promotes high availability and loop-free topology within Ethernet networks
- Voice VLAN for fast, reliable deployment of VoIP services
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Miscellaneous | |
| Package Contents |
|
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Power Description | |
| Power Source | PoE |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 60 W |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet PoE++ |
| 4 x Gigabit Ethernet PoE+ | |
| Physical Characteristics | |
| Weight (Approximate) | 1.01 lb (458.13 g) |
| Form Factor | Desktop |
| Wall Mountable | |
| Length | 6.69" (169.93 mm) |
| Height | 1.02" (25.91 mm) |
| Width | 4.13" (104.90 mm) |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | EXT1105P |
| Manufacturer Website Address | http://www.engeniustech.com |
| Manufacturer | EnGenius Technologies, Inc |
| Product Model | EXT1105P |
| Product Name | Cloud Managed 5-Port 60W Gigabit PoE Switch Extender |
| Brand Name | EnGenius |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| IEEE 802.3bt | |
| IEEE 802.3u | |
| IEEE 802.3az | |
| IEEE 802.3at | |
| IEEE 802.3af | |
| IEEE 802.3ab | |
| IEEE 802.3 | |
| IEEE 802.1w | |
| IEEE 802.1Q | |
| IEEE 802.1p |
