Lutron Fixture Control 0-10V Overview

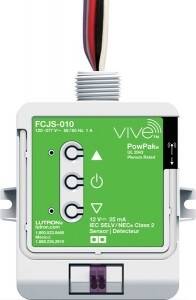

The Lutron PowPak Wireless Fixture Control for 0-10V LED drivers is a radio-frequency device that applies controls for either the Lutron EcoSystem or 0-10V electronic LED drivers. It mounts to a fixture or junction box and receives input from Pico remote controls, Radio Powr Savr wireless sensors, or wired inputs from the PowPak fixture sensor via Lutron's Clear Connect RF technology. An optional PowPak fixture sensor mounts to the ceiling or fixture to measure light and motion in the area and works with this control unit to adjust light levels as needed.
This control is also compatible with the Lutron Vive hub which enables a simple setup process via a standard web browser on any wi-fi enabled device, and allows for control and monitoring of connected Vive devices.
Lutron Fixture Control 0-10V Features
- Operating voltage: 120–277 V~ 50/60 Hz
- 1 A switching maximum, electronic ballast or LED driver for 0–10 V- load
- No more than 3 drivers or ballasts
- Standby power consumption < 1 W
- Works with all ballasts and drivers that provide a current source compliant to IEC 60629 Annex E.2, and whose inrush current does not exceed NEMA410 standards for electronic ballast/driver
- Controls up to 6 mA of 0–10 V- controlled fixtures.
- Controls up to 3 ballasts or drivers (IEC 60929 Annex E.2 requires the ballast or driver to limit the current draw to 2.0 mA maximum)
- 0–10 V- control link on FC-010 automatically sources or sinks to third-party fixtures
- Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0%–90% humidity, non-condensing; indoor use only
- Frequency: 431.0– 437.0 MHz (U.S.A., Canada)
- Range: Wireless sensors and controls must be located within 60 ft (18 m) line of sight, or 30 ft (9 m), through walls, of the
- associated control module
- Utilizes Lutron Clear Connect RF Technology
Lutron Fixture Control 0-10V Specifications
- Color: Black (BL)
- Standard: UL
- Wattage: 1875 W
- Mounting: Wallbox
- Brand Name: Lutron
- Number Of Poles: 2
- Insulation: Plastic
- Sub Brand: Designer
- Amperage Rating: 15 A
- Voltage Rating: 125 V
- Number Of Wires: 3,4,5
- Material: Plastic/Metal
- Wire Size: 10 to 14 AWG
- Connection: Screw terminal
- Type: Tamper-resistant receptacle
- Pack Description: Box
- Pack Type: EA
- Number of Sub Packs: 1
- Total Units Imperial: 1 EA
- Gross Weight per Pack Imperial: 0.35 L
- Length Imperial: 2.25 IN
- Width Imperial: 2.25 IN
- Height Imperial: 4.5 IN
- Size: 4.69 in (119 mm) x 2.94 in (75 mm)
- Temperature Rating: 0 to 40 degrees Celsius
- Environmental Conditions: 0 to 90% humidity, non-condensing
- Country of Origin: CN
