The FG-1625F from Honeywell is a flush mount glassbreak detector that utilizes the latest technology, providing faster response times and better alarm immunity. It’ll work on all glass types including plate, tempered, laminated, wired, film-coated and sealed with insulating glass.
HIGHLY ACCURATE PERFORMANCE
The detector uses FlexCore Signal Processor to provide high accuracy when sensing potential breaks. The processor’s combination of proven performance and speed provide unmatched false alarm immunity without compromising detection. Two DIP switches on the unit help in setting the sensitivity of the detector to match the acoustics of the room, further aiding in optimizing operation. The range can be verified remotely using the FlexGuard FG-701 Glassbreak Simulator.
EASY INSTALLATION

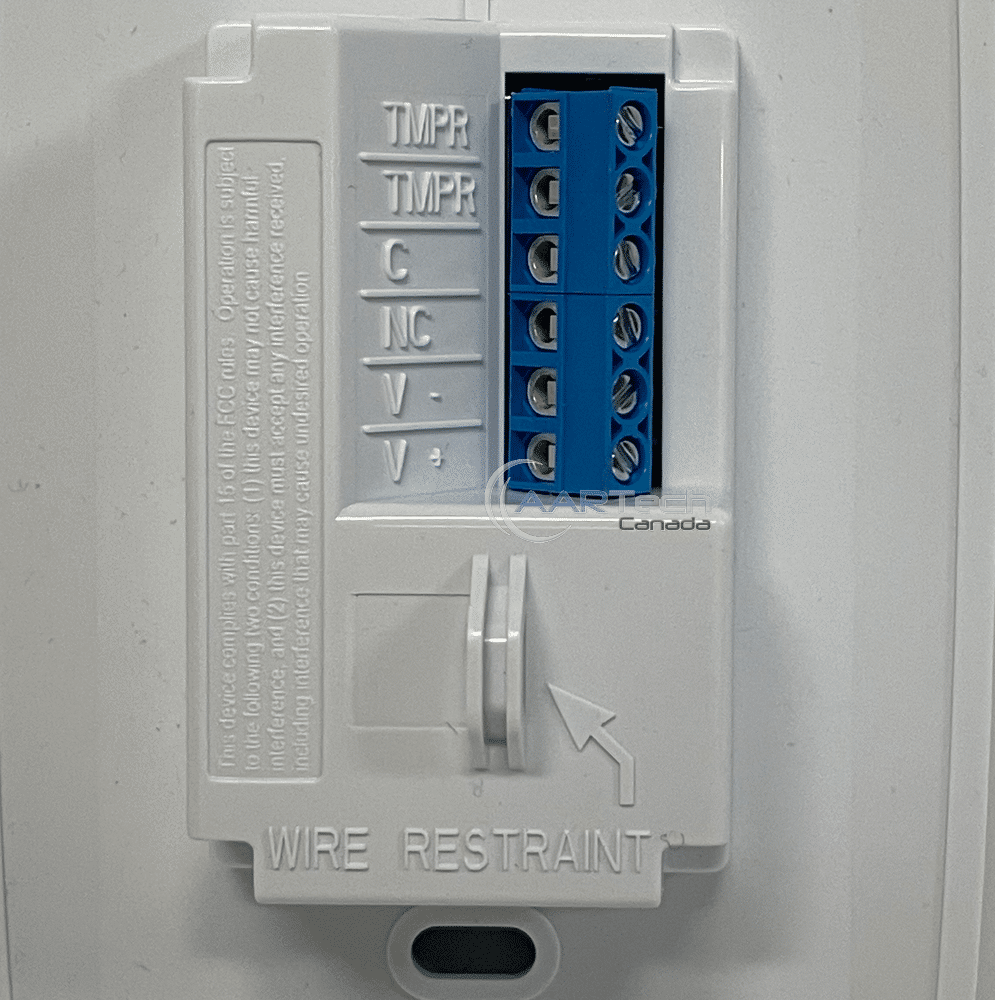

Using Honeywell’s patented technology, the FG-1625F can be set up with ease. It has a centred wire entry hole, 45° terminal blocks and EOL terminals. Its highly versatile nature means it can be mounted on the ceiling, opposite wall, adjoining wall or the same wall as the glass.
This model is meant for flush mounting.
Honeywell FG-1625F Glassbreak Detector Features:
- FlexCore Signal Processor for higher detection accuracy
- Form A Relay when not powered. Normally Closed output when powered and not in alarm. Opens when in alarm.
- 2 DIP switches
- Flush mounting
- 25’ (7.6m) maximum omnidirectional range
- RFI Immunity 30V/m, 10MHz - 1000MHz
- FCC, IC verified
- UL, ULC listed
- Operating temperature: 14° to 122° F (-10° to 50° C)
- Dimensions: 3 7/8"" x 2 2/5"" x 7/8"" (98mm x 62mm x 21.8mm)
Especificaciones técnicas
The FG-1625F from Honeywell is a flush mount glassbreak detector that utilizes the latest technology, providing faster response times and better alarm immunity. It’ll work on all glass types including plate, tempered, laminated, wired, film-coated and sealed with insulating glass.
HIGHLY ACCURATE PERFORMANCE
The detector uses FlexCore Signal Processor to provide high accuracy when sensing potential breaks. The processor’s combination of proven performance and speed provide unmatched false alarm immunity without compromising detection. Two DIP switches on the unit help in setting the sensitivity of the detector to match the acoustics of the room, further aiding in optimizing operation. The range can be verified remotely using the FlexGuard FG-701 Glassbreak Simulator.
EASY INSTALLATION
Using Honeywell’s patented technology, the FG-1625F can be set up with ease. It has a centred wire entry hole, 45° terminal blocks and EOL terminals. Its highly versatile nature means it can be mounted on the ceiling, opposite wall, adjoining wall or the same wall as the glass.
This model is meant for flush mounting.
Honeywell FG-1625F Glassbreak Detector Features:
- FlexCore Signal Processor for higher detection accuracy
- Form A Relay when not powered. Normally Closed output when powered and not in alarm. Opens when in alarm.
- 2 DIP switches
- Flush mounting
- 25’ (7.6m) maximum omnidirectional range
- RFI Immunity 30V/m, 10MHz - 1000MHz
- FCC, IC verified
- UL, ULC listed
- Operating temperature: 14° to 122° F (-10° to 50° C)
- Dimensions: 3 7/8"" x 2 2/5"" x 7/8"" (98mm x 62mm x 21.8mm)
