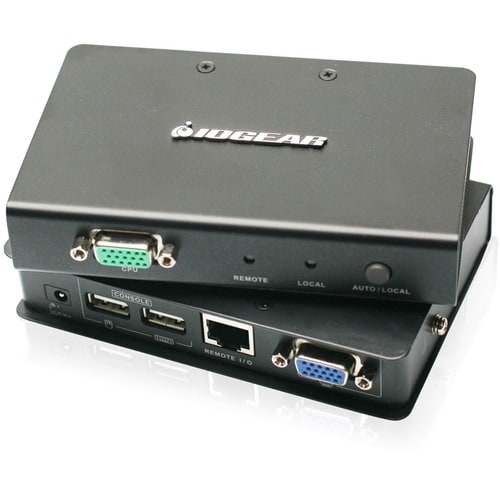

The Iogear's GCE500U KVM Cosole/Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard, and USB mouse) via Cat5e/6 cable up to 500 feet away. This unit is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location that may be more comfortable and quieter.
- Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables
- Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
- Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
- Dual Console Operation - Control your system from either the local or remote console
- Built-in 8KV ESD protection and 2KV surge protection
- Maximum video resolution up to:1920 x 1200 @ 60Hz (100 ft. - 30m),1600 x 1200 @ 60HZ (330 ft. - 100m),1280 x 1024 @ 60Hz (500 ft. - 150m)
- USB over-current detection and prevention
- Easy To Operate - Push button selection between local and remote console
- Rack Mountable (rack mount kit included)
- Plug-N-Play - No need for any software driver installation
Especificaciones técnicas
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Power Description | |
| Input Voltage | 5.3 V DC |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Graphic Mode | WUXGA |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 500 ft (152400 mm) |
| KVM Technology | Analog |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 4 |
| Proprietary Interface | Yes |
| Number of VGA Ports | 2 |
| General Information | |
| Product Type | KVM Console/Extender |
| Manufacturer Part Number | GCE500U |
| Manufacturer Website Address | http://www.iogear.com |
| Packaged Quantity | 1 |
| Manufacturer | IOGEAR, Inc |
| Product Model | GCE500U |
| Product Name | GCE500U KVM Cosole/Extender |
| Brand Name | IOGEAR |
