IOGEAR's GCL1908 is an integrated LCD console with an 8-port KVM (keyboard, video, and mouse) switch that offers secure access to 8 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 19" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. The GCL1908 fits into a universal 1U rack mount space.
The GCL1908 supports both PS/2 and USB keyboards and mice for the connected computers, and supports USB peripheral devices for the attached computers. A single GCL1908 can control up to 8 computers, but as many as 8 additional compatible KVM switches can be cascaded to reach up to 128 computers* controlled from a single keyboard, monitor and mouse console.

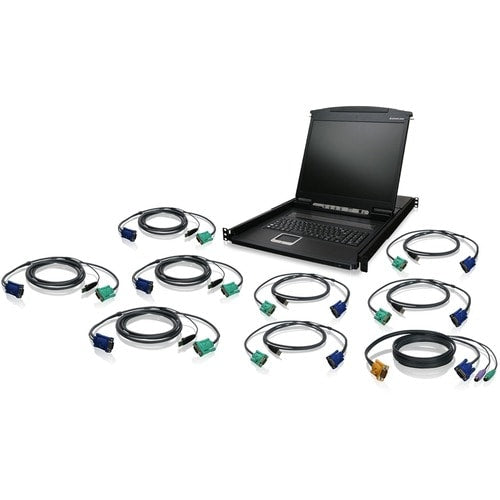

Additional USB KVM CablesThis kit includes an additional 7 USB KVM cables (3 x 6ft, 4 x 10ft). Our custom-made cables are designed to provide the highest signal capacity with the lowest signal loss. This important technology produces the highest quality video output - even after long distance transmission or in the most electronically noisy environments such as server cabinets. IOGEAR's premium custom-made KVM cables guarantee optimum signal integrity for high-grade server needs. The keyboard and mouse cables are made of double-sealed 22-gauge wire and are neatly wrapped with a heavy-duty video cable for simplified connections.
- Integrated 8-port KVM console featuring a 19" TFT LCD active matrix monitor, keyboard and touchpad
- 1280x1024 resolution on 19" rack mount LCD provides a sharp video display
- Adjustable mounting rail to fit different sizes of racks
- Multiplatform OS support - Windows®, Mac and Linux®
- Easy to operate - computer selection via front panel pushbutton LED's, intuitive OSD (on-screen display) and hotkeys
- External USB or PS/2 with VGA Console port
- Cascade up to 2 levels - control up to 128 computers from a single console*
- Security - 2 level password protection for OSD
- DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
- Rack mountable in a 19" (1U) system rack
Especificaciones técnicas
| Input Devices | |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Interfaces/Ports | |
| Proprietary Interface | Yes |
| Number of Proprietary Ports | 8 |
| Display & Graphics | |
| Screen Resolution | 1280 x 1024 |
| Screen Size | 19" (482.60 mm) |
| Display Screen Type | LCD |
| Technical Information | |
| KVM Switch | Yes |
| Number of Computers Supported | 8 |
| Device Type | LCD Rack Console |
| Physical Characteristics | |
| Weight (Approximate) | 27.75 lb (12587.19 g) |
| Rack Height | 1U |
| Height | 27" (685.80 mm) |
| Width | 17.75" (450.85 mm) |
| Depth | 1.75" (44.45 mm) |
| Product Material | Metal |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | Mac |
| PC | |
| Sun | |
| Linux | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | LCD Rack Console |
| Manufacturer Part Number | GCL1908KITU |
| Manufacturer Website Address | http://www.iogear.com |
| Packaged Quantity | 1 |
| Manufacturer | IOGEAR, Inc |
| Product Model | GCL1908 |
| Product Name | 8-Port 19" LCD KVM Drawer Kit with USB KVM Cables |
| Brand Name | IOGEAR |
