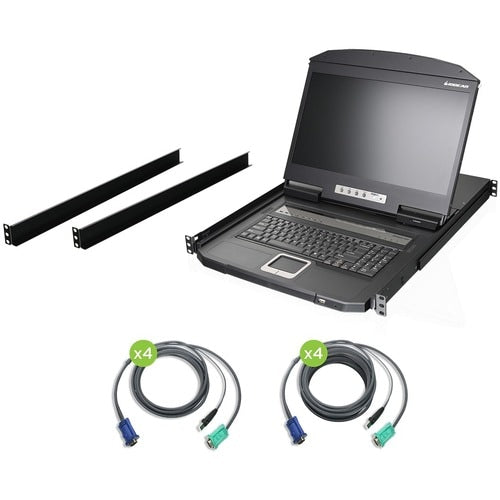

8-Port Widescreen Short Depth LCD KVM Switch
IOGEAR's GCL1908WKITU, is an integrated 18.5" Widescreen LCD console with an 8-port KVM (keyboard, video, and mouse) switch with eight (8) USB KVM cables that offers secure access to eight (8) VGA, USB or PS/2 computers. The KVM supports both PS/2 and USB keyboards and mice for the connected computers and supports USB peripheral devices for the attached computers.
Saving Space in the Rack
The GCL1908WKITU features a convenient rack mountable retractable 18.5" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving, streamlined integration. The GCL1908WKITU Switch fits into a universal 1U rack mount space and features a convenient rack mountable, retractable 18.5" TFT LCD active matrix monitor and keyboard with a built-in touchpad for a space-saving, streamlined integration. With the included rack mount kit, the Switch fits rack environments of varying depths ranging between 16.5" to 28.3".
The LCD KVM Switch:
- Is an easy, efficient way to organize and streamline a growing or expanding server operation
- Increases space, improves productivity, and provides an energy-cost saving solution
- Contributes to a greener environment by reducing the amount of waste generated by multiple components
Control, View & Expand
A single GCL1908WKITU can control up to eight (8) computers, but as many as two (2) additional compatible KVM switches can also be cascaded to reach up to 128 computers controlled from a single keyboard, monitor and mouse console.
- Integrated VGA 8-port LCD KVM console with 18.5" widescreen LCD monitor & cables
- Single rail housing; top/bottom clearance for smooth operation in a 1U high system rack
- Control up to 128/256 computers by cascading up to 2 levels with IOGEAR's GCS1808 or GCS1716
- LCD monitor supports resolution of 1366 x 768 @60Hz
- Short depth design allows for rack-mounting in narrow spaces
- Supports VGA video input; supports an external console with USB/VGA connectors
- Built-in USB Type-A port on front panel for peripheral sharing HID devices
- Dual Interface - Supports computers with PS/2 or USB Keyboards and Mice
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 & USB) for smooth switching and simultaneously booting multiple computers even when the console's focus is elsewhere
Especificaciones técnicas
| Input Devices | |
| Keyboard | Yes |
| Physical Characteristics | |
| Rack Height | 1U |
| Product Material | Plastic |
| Metal | |
| Technical Information | |
| Daisy Chain | Yes |
| KVM Switch | Yes |
| Number of Computers Supported | 8 |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 2 |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 2 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Input Current | 1 A |
| Input Voltage Range | 100V AC to 240V AC |
| Display & Graphics | |
| Aspect Ratio | 4:3 |
| Screen Resolution | 1366 x 768 |
| Screen Size | 18.5" (469.90 mm) |
| Screen Mode | HD |
| Display Screen Type | LCD |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | LCD Rack Console |
| Manufacturer Part Number | GCL1908WKITU |
| Manufacturer Website Address | http://www.iogear.com |
| Manufacturer | IOGEAR, Inc |
| Product Model | GCL1908WKITU |
| Product Name | 8-Port 18.5" Widescreen Short Depth LCD KVM Switch |
| Brand Name | IOGEAR |
