CONMUTADOR KVM OSD USB DE 16 PUERTOS CON CABLE USB DE 16 PULGADAS

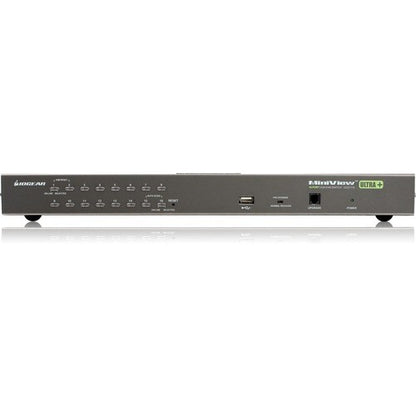

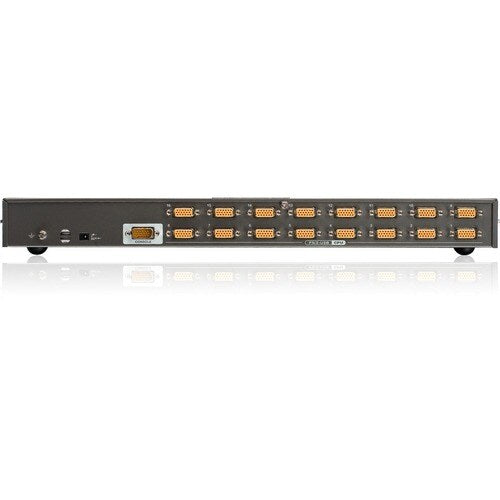

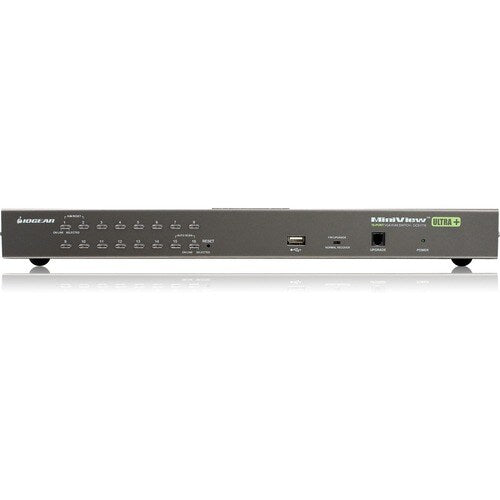

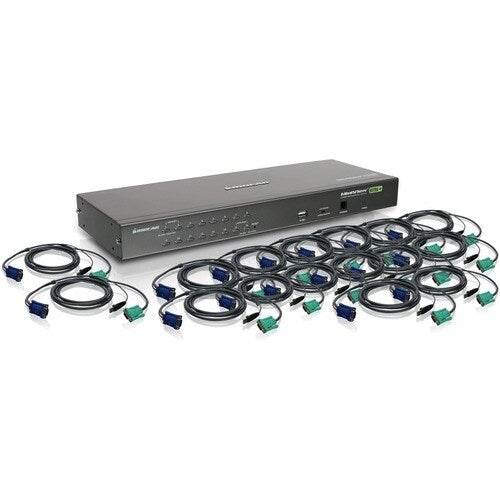

The GCS1716KITU KVM is a combo switch with USB KVM cables included; allowing access and control of up to 16 directly connected computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

• Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
• Auto Scan Mode to monitor connected computers
• Broadcast Mode to send commands to all connected computers
• Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and hotkeys
• *Cascade up to 2 levels - control up to 256 computers from a single console
• Security - 2 level password protection for OSD
• Maximum video resolution: up to 2048 x 1536
• Supports both USB and PS/2, VGA computers
• ** Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals
• Rack mountable in a 19" (1U) system rack
