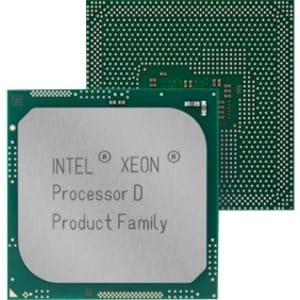

Intel® Xeon® Processor D-1500 Product Family
Formerly Broadwell DE
The Intel® Xeon® processor D-1500 product family is Intel's third-generation 64-bit system on a chip (SOC) and the first Intel® Xeon® SoC based on Intel® 14 nm silicon technology. This lineup offers hardware and software scalability from two up to sixteen cores, making it the perfect choice for a broad range of high-performing, low-power solutions that will bring intelligence and Intel® Xeon® reliability, availability, and serviceability (RAS) to the edge. For applications where space is a premium, an integrated Platform Controller Hub (PCH) technology and Intel® Ethernet in a ball grid array (BGA) package offer an inspiring level of design simplicity. The Intel® Xeon® processor D-1500 product family is offered with a seven-year extended supply life and 10-year reliability for Internet of Things designs.
- 24 MB of L3 cache to boost the instruction processing and system performance
- 14 nm design offers great efficiency for computing, delivers nimble processing with balanced cost, performance, and power
- The processor features Socket BGA-1667 socket for installation on the PCB
Especificaciones técnicas
| Power Description | |
| Thermal Design Power | 45 W |
| Physical Characteristics | |
| Width | 1.48" (37.50 mm) |
| Depth | 1.48" (37.50 mm) |
| Technical Information | |
| Process Technology | 14 nm |
| Clock Speed | 1.30 GHz |
| Processor Socket | Socket BGA-1667 |
| L2 Cache | 4 MB |
| L3 Cache | 24 MB |
| Processor Core | Hexadeca-core (16 Core) |
| 64-bit Processing | Yes |
| Processor Manufacturer | Intel |
| Overclocking Speed | 2.10 GHz |
| General Information | |
| Product Type | Processor |
| Manufacturer Part Number | GG8067402570503 |
| Manufacturer Website Address | http://www.intel.com |
| Manufacturer | Intel Corporation |
| Product Model | D-1577 |
| Product Name | Xeon D Hexadeca-core D-1577 1.3Ghz Server Processor |
| Package Type | OEM |
| Product Line | Xeon D |
| Product Series | D-1500 |
| Brand Name | Intel |
