Acerca del producto

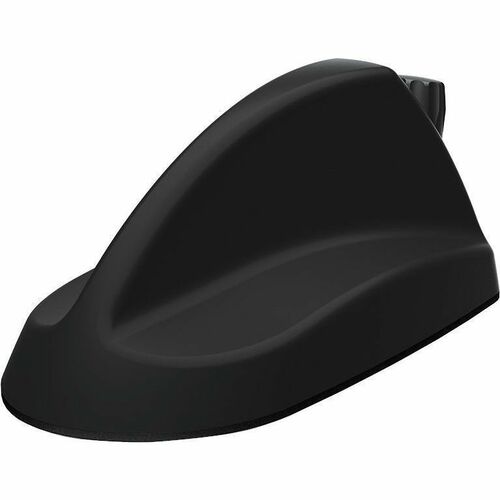

The GPSB5G Sharkee® provides antenna coverage for multiple technologies including GPS, WiFi and LTE within one OEM sharkfin style housingThe GPSB5G Sharkee® provides antenna coverage for multiple technologies within one antenna housing. The GPSB range is trusted by public safety, utilities and transportation companies all over the world and the GPSB5G upgrades the range with an improved GPS/GNSS module with advanced filtering and 4G/5G coverage.The GPSB5G offers three internal antenna systems
GPS/GNSS, 4G/5G cellular (698-960/1710-3800MHz), dual band WiFi (2.4/5.0GHz) and an optional whip mounting for VHF or UHF whips. Requiring only a single hole fixing, the GPSB5G reduces vehicle damage, cost of installation and visual impact whilst protecting vehicle resale value.The GPSB5G is suitable for the public safety (covert and discreet), industrial and transportation sectors, where a cost effective, efficient and robust antenna is essential to the application. Fitted with flame retardant pigtail cables compliant to UNECE R118 the GPSB5G is suitable for fitment to M3 category vehicles.Even with its extremely durable design and weather resistant features, this flexible and thin antenna is easy to installProvides gain of up to 26 dBThis antenna is ideal for use and provide connectivity to your gps
Especificaciones técnicas
| Interfaces/Ports | |
| Connector Type | SMA |
| FME | |
| Technical Information | |
| Antenna Gain | 26 dB |
| Operating Frequency Range | 1710 MHz to 3800 MHz |
| 698 MHz to 960 MHz | |
| Miscellaneous | |
| Application/Usage | Vehicle |
| Two-way Radio Communication | |
| GPS | |
| Cellular Network | |
| Physical Characteristics | |
| Form Factor | Panel Mount |
| Whip | |
| Height | 1.97" (50.04 mm) |
| Width | 2.28" (57.91 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Antenna |
| Manufacturer Part Number | GP-IN2858 |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Manufacturer | Panorama Antennas Ltd |
| Product Model | GPSB5G |
| Product Name | Sharkee GPSB5G Antenna |
| Product Line | Sharkee |
| Brand Name | Panorama Antennas |
