Acerca del producto

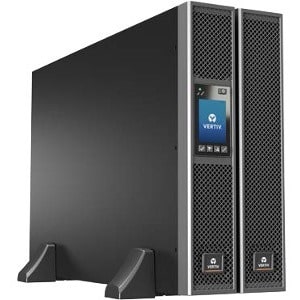

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 10kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.
- HIGH POWER FACTOR (0.9-1.0): More usable power allows more connected loads saving space and costs.
- REMOTE MANAGEMENT: Optional Vertiv RDU101 network communications card with advanced features.
- 3-YEAR WARRANTY: 3-year comprehensive coverage including battery with options for 2-year extension.
- ENERGY EFFICIENT (up to 95%): Energy Star 2.0 certified with high normal operating efficiency.
- EASY-TO-USE INTERFACE: Tower/rack mount design with gravity sensing graphical color display.
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | LED/Full Color Graphic LCD:
|
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| Management | |
| Bypass Switch | Automatic & Manual |
| Internal | |
| Maintenance | |
| Emergency Power OFF | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Environmental Sensors | Leak Detection Sensor |
| Humidity Sensor | |
| Temperature Sensor | |
| Physical Characteristics | |
| Weight (Approximate) | 224.80 lb (101967.56 g) |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 10.20" (259.08 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 25.60" (650.24 mm) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 12.50 Minute |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Battery Characteristics | Valve-regulated/Non-spillable/Flame-retardant/Hot-swappable |
| Replaceable Battery | Yes |
| Number of External Battery Cabinets | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 13 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 33.50 Minute |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT5-10KMVRT6UXLN |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 Pack |
| Manufacturer | Vertiv |
| Product Name | GXT5 10kVA 208/120V OL-Double Conversion R/T UPS |
| Product Series | GXT |
| Brand Name | Vertiv Liebert |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 10 kVA |
| User Selectable Output | 208/120VAC |
| Utility (AC) Mode Overload |
|
| Technical Information | |
| Application/Usage | Network |
| Data Center | |
| Mission Critical Equipment | |
| Plug/Connector Type | Terminal Block |
| Phase | Single Phase |
| Receptacle Type | Hardwired |
| Transfer Time | 0 ns |
| Receptacle Detail | 1 x Hardwired |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
