Acerca del producto

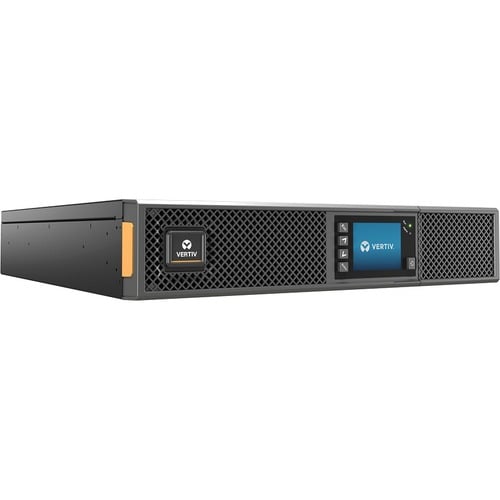

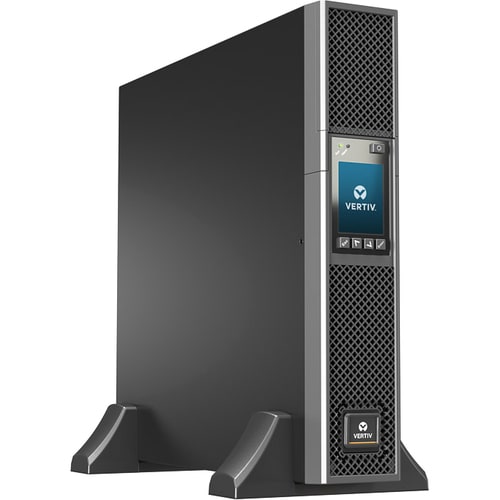

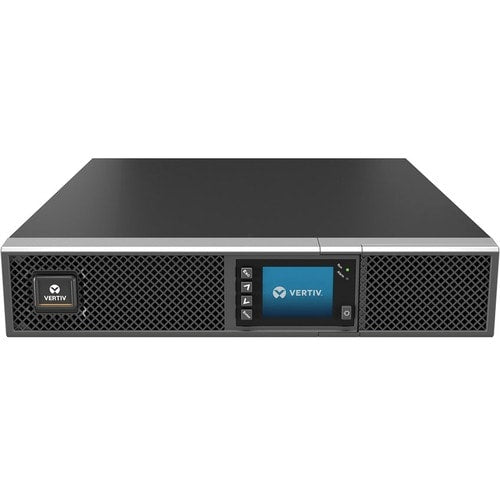

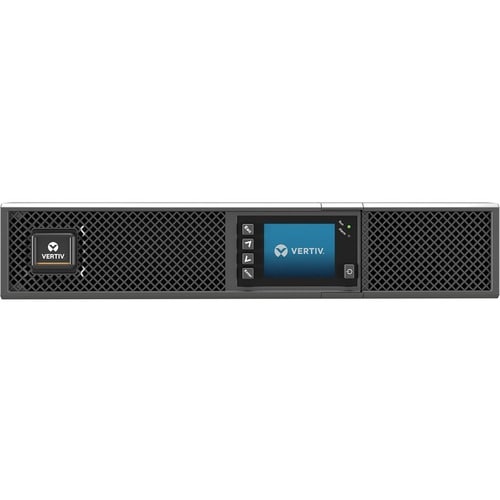

The Vertiv Liebert GXT5 UPS, with a capacity of 2000VA/1800W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.
- 2 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 1.80 kW load capacity
- Keep your sensitive devices powered with a backup of up to 3 minute at full load
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | Color LCD |
| Interfaces/Ports | |
| VGA | No |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Environmental Sensors | Leak Detection Sensor |
| Humidity Sensor | |
| Temperature Sensor | |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT5-2000LVRT2UXL |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Name | GXT5 2000VA 120V UPS |
| Product Series | GXT |
| Brand Name | Vertiv Liebert |
| Physical Characteristics | |
| Weight (Approximate) | 47.50 lb (21545.64 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 18.50" (469.90 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Application/Usage | Mission Critical Equipment |
| IT Equipment | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA L5-20P |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Receptacle Type | NEMA L5-20R |
| NEMA 5-15/20R | |
| Transfer Time | 0 ns |

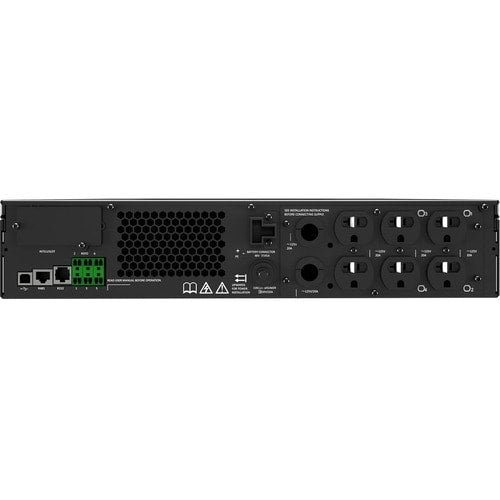

| Receptacle Detail | 6 x NEMA 5-15/20R |
| 1 x NEMA L5-20R | |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 16 A |
| Waveform Type | Pure Sine Wave |
| Output Current | 16.70 A |
| Input Voltage Range | 60 V AC - 150 V AC |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.80 kW |
| User Selectable Output | Typical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3% |
| Utility (AC) Mode Overload |
|
| Battery Information | |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Hot Pluggable | Yes |
| Number of Batteries | 3 |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Typical Battery Recharge Time | 3 Hour |
| Number of External Battery Cabinets | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 17 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 42 Minute |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | Free Download - Power Insight 2.2 |
| Certifications & Standards |
|
| Country of Origin | China |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
