Acerca del producto

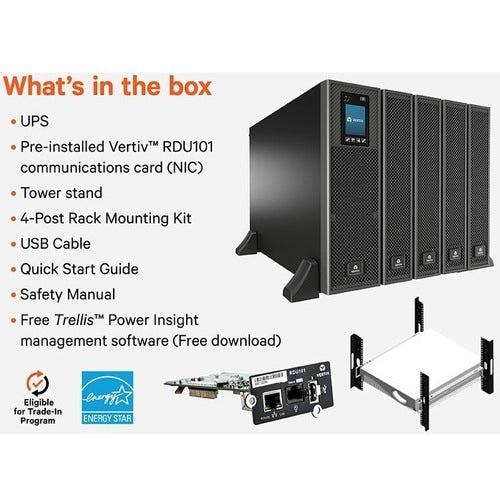

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 20kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card with the free Vertiv Power Insight software for remote monitoring to help you make more informed decisions and faster event resolution. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with External Battery Cabinet (EBC) Autodetection to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with a color/graphic LCD HMI display. It offers battery heath status and has optional Power Output Distribution (POD) selections with NEMA or IEC outlet receptacles.
- With high power capacity, this 20kVA UPS offers enough power for row and room-based applications.
- It has more usable power (1.0 PF), which allows more connected loads to save space and costs.
- It is Energy Star 2.0 certified with higher efficiency, for energy savings and improved reliability.
- It comes with 3-year factory warranty with optional 2-year extension for a total of 5 years in coverage.
- It has scalable runtime options with external battery cabinets and autodetection features.
Especificaciones técnicas
| Battery Information | |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Valve Regulated Lead Acid (VRLA) |
| Management | |
| Bypass Switch | Automatic |
| Manual | |
| Internal | |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Waveform Type | Pure Sine Wave |
| Load Capacity (VA) | 20 kVA |
| Technical Information | |
| Application/Usage | Mission Critical Equipment |
| Room | |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Receptacle Type | Hardwired |
| Interfaces/Ports | |
| Modular Slots | 1 x Expansion Slot |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 396.60 lb (179894.73 g) |
| Form Factor | Rack/Tower |
| Rack Height | 11U |
| Height | 19" (482.60 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 26.70" (678.18 mm) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT5-20KMVRT11UXLN |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 Pack |
| Manufacturer | Vertiv |
| Product Name | GXT5 20kVA Rack/Tower UPS |
| Product Series | GXT |
| Brand Name | VERTIV |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
