Acerca del producto
The Vertiv Liebert GXT5 UPS 3000VA/3000W is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a three-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor's product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
- Offers reliable, easy-to-manage power protection and battery backup with 3000VA(3000W) capacity.
- Has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- Includes four individual programmable output receptacles for device control and optimum battery usage.
- ENERGY STAR 2.0 certified with higher efficiency, for energy savings and improved reliability.
- Tower/rack mount design with gravity sensing feature and color graphic display.
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | Colored Graphic LCD Display:
|
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Environmental Conditions | |
| Sound Emission | 48 dB |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Interfaces/Ports | |
| VGA | No |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 62.83 lb (28500 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.35" (85 mm) |
| Width | 16.93" (430 mm) |
| Depth | 21.26" (540 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT53000IRT2UXL |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | GXT5-3000IRT2UXL |
| Product Name | GXT5 UPS - 3000VA/3000W 230V | Online Rack Tower |
| Product Series | GXT5 |
| Brand Name | Vertiv Liebert |
| Product Condition | New |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Free Download - Power Insight 2.2 |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 200 V AC | |
| 220 V AC | |
| 208 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 115 V AC - 288 V AC |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Battery Information | |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Hot Pluggable | Yes |
| Number of Batteries | 6 |

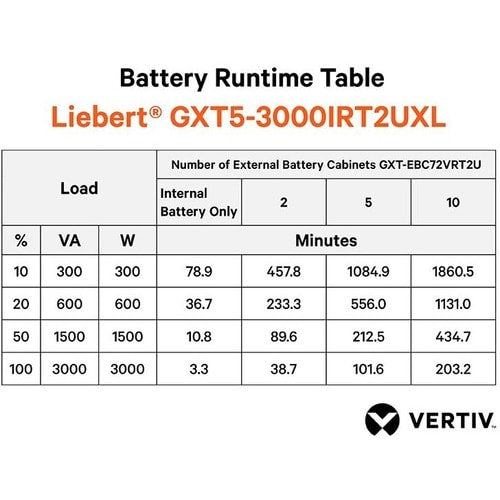

| Backup/Run Time (Half Load) | 10.80 Minute |
| Backup/Run Time (Full Load) | 3.30 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Replaceable Battery | Yes |
| DC System Voltage | 72 V DC |
| Typical Battery Recharge Time | 3 Hour |
| Technical Information | |
| Application/Usage | Network Workstation |
| Network Closet | |
| Mission Critical Equipment | |
| Large Network Peripheral | |
| Edge Computing | |
| VoIP | |
| Server | |
| Protection Type | Output Over Voltage |
| Output Short Circuit | |
| Over Charge | |
| Over Current | |
| Over Loading | |
| Short Circuit | |
| Sag | |
| RFI | |
| Quad | |
| Power Failure | |
| Over Voltage | |
| Over Power | |
| Over Temperature | |
| Under Voltage | |
| Under Current | |
| Transient | |
| Thermal Overload | |
| Temperature | |
| Surge | |
| Spike | |
| AC Noise | |
| AC Surge | |
| Black Out | |
| Brownout | |
| Dataline Surge | |
| Deep Discharge | |
| Discharge | |
| Electric Shock | |
| Electronic Current Limit | |
| EMI | |
| EMI / RFI | |
| Excessive Low Battery | |
| Fuse | |
| Harmonics | |
| High/Low Voltage | |
| Inrush Current | |
| Lightning | |
| Line Noise | |
| Low Battery | |
| No Load | |
| Noise | |
| Output Over Current | |
| Soft Start | |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 6 x IEC 60320 C13 |
| 1 x IEC 60320 C19 |
