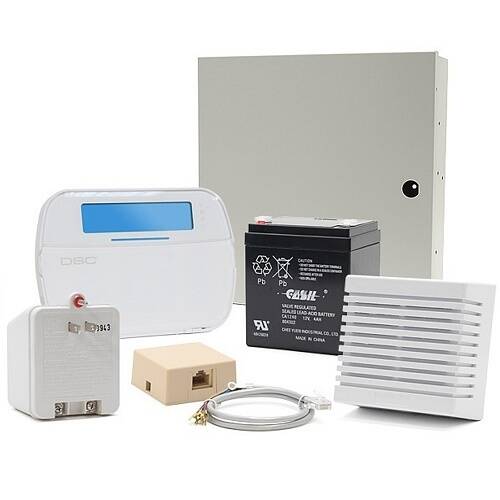

The DSC Neo Kit with 8 to 32 zone expandable panel and Full Message Hardwired LCD Keypad with Built-in PowerG Transceiver kit includes the essential hardware required to start building a wireless PowerG-equipped DSC PowerSeries NEO system, including:
1x HS2032NK PowerSeries NEO Alarm Panel
1x PC5003C metal alarm cabinet
1x HS2LCDRF9 N Full Message Hardwired LCD Keypad with PowerG Transceiver
1x 12V backup battery
1x Plug-in transformer
1x Indoor surface-mount siren
Designed for commercial and residential security solutions. PowerG wireless technology allows a maximum of 2km between sensor and keypad—ideal for high-footprint properties like warehouses, or even rural properties.
NOTE: PowerSeries NEO requires professional monitoring and will only work as a local alarm without a service contract. NEO systems are NOT backwards compatible with legacy PowerSeries 433 MHz keypads or expanders. Please ensure compatibility before purchasing in retrofit installs.
HS32-119CAN Kit Specs and Features
HS2032NK NEO Panel
- 8 hardwire inputs can be expanded to 32 zones
- 2 PGM outputs
- Supports 4 partitions
- 500 event buffer
- Allows for remote firmware upgrades (panel/keypads/transceiver)
- 128 bit AES encryption for the highest level of protection
- Operating Temperature: 0 to 40 degrees C (32 to 120 F)
- Requires 16.5 VAC transformer (not included)
- Supports up to 8 wired keypads
- Supports up to 72 user access codes
- FCC/IC, SIA CP-01, CSFM, CNC, Anatel Control Panel Approvals
HS2LCDRF9N Wired Keypad with PowerG
- Includes built-in PowerG Wireless Transceiver
- Large, white backlit keypad buttons
- I/O for either zone or programmable output
- 5 programmable function keys
- 3 Separate panic keys
- Low-temperature sensor
- Adjustable backlight and keypad buzzer
- Multiple door chimes per zone
- Connects to control panel Corbus via 4 wires
- 1 configurable zone input or PGM output
- 8 Partition support
- 6 languages
- Front and rear mount tamper
- Wire channel
- Wall mount tamper
- Easy-to-install mounting hinge
- Surface or single-gang box mount
- Ready (Green LED), Armed (Red LED), Trouble (Yellow LED), AC (Green LED)
- Package includes: 1x keypad, 4x mounting screws, 2x EOL resistors, 1x tamper switch, installation instructions
- Dimensions (L x W x D): 6 1/16"" x 4 7/16"" x 13/16"" in (168 mm x 122 mm x 20 mm)
- Weight: 260g
- Zones: Up to 128
- LCD Viewable Area: 99 mm x 24 mm (3 9/10"" x 15/16"")
- Current Draw: 125mA (Max)
- Current Draw (HS2LCD): 60mA
- Voltage: 12 VDC Nominal
- Voltage Rating: 13.8 VDC nominal (power provided by the compatible control panel)
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Humidity: 5 to 93% RH
- Plastic Enclosure Rating: IP30, IK04
- Frequency:
- 433 MHz (HS2ICNRF4/HS2LCDRF4)
- 868 MHz (HS2ICNRF8/HS2LCDRF8)
- 912-010 MHz (HS2ICNRF9/HS2LCDRF9)
- Approvals: FCC/IC, UL/ULC, SIA CP-01 CSFM
Especificaciones técnicas
The DSC Neo Kit with 8 to 32 zone expandable panel and Full Message Hardwired LCD Keypad with Built-in PowerG Transceiver kit includes the essential hardware required to start building a wireless PowerG-equipped DSC PowerSeries NEO system, including:
1x HS2032NK PowerSeries NEO Alarm Panel
1x PC5003C metal alarm cabinet
1x HS2LCDRF9 N Full Message Hardwired LCD Keypad with PowerG Transceiver
1x 12V backup battery
1x Plug-in transformer
1x Indoor surface-mount siren
Designed for commercial and residential security solutions. PowerG wireless technology allows a maximum of 2km between sensor and keypad—ideal for high-footprint properties like warehouses, or even rural properties.
NOTE: PowerSeries NEO requires professional monitoring and will only work as a local alarm without a service contract. NEO systems are NOT backwards compatible with legacy PowerSeries 433 MHz keypads or expanders. Please ensure compatibility before purchasing in retrofit installs.
HS32-119CAN Kit Specs and Features
HS2032NK NEO Panel
- 8 hardwire inputs can be expanded to 32 zones
- 2 PGM outputs
- Supports 4 partitions
- 500 event buffer
- Allows for remote firmware upgrades (panel/keypads/transceiver)
- 128 bit AES encryption for the highest level of protection
- Operating Temperature: 0 to 40 degrees C (32 to 120 F)
- Requires 16.5 VAC transformer (not included)
- Supports up to 8 wired keypads
- Supports up to 72 user access codes
- FCC/IC, SIA CP-01, CSFM, CNC, Anatel Control Panel Approvals
HS2LCDRF9N Wired Keypad with PowerG
- Includes built-in PowerG Wireless Transceiver
- Large, white backlit keypad buttons
- I/O for either zone or programmable output
- 5 programmable function keys
- 3 Separate panic keys
- Low-temperature sensor
- Adjustable backlight and keypad buzzer
- Multiple door chimes per zone
- Connects to control panel Corbus via 4 wires
- 1 configurable zone input or PGM output
- 8 Partition support
- 6 languages
- Front and rear mount tamper
- Wire channel
- Wall mount tamper
- Easy-to-install mounting hinge
- Surface or single-gang box mount
- Ready (Green LED), Armed (Red LED), Trouble (Yellow LED), AC (Green LED)
- Package includes: 1x keypad, 4x mounting screws, 2x EOL resistors, 1x tamper switch, installation instructions
- Dimensions (L x W x D): 6 1/16"" x 4 7/16"" x 13/16"" in (168 mm x 122 mm x 20 mm)
- Weight: 260g
- Zones: Up to 128
- LCD Viewable Area: 99 mm x 24 mm (3 9/10"" x 15/16"")
- Current Draw: 125mA (Max)
- Current Draw (HS2LCD): 60mA
- Voltage: 12 VDC Nominal
- Voltage Rating: 13.8 VDC nominal (power provided by the compatible control panel)
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Humidity: 5 to 93% RH
- Plastic Enclosure Rating: IP30, IK04
- Frequency:
- 433 MHz (HS2ICNRF4/HS2LCDRF4)
- 868 MHz (HS2ICNRF8/HS2LCDRF8)
- 912-010 MHz (HS2ICNRF9/HS2LCDRF9)
- Approvals: FCC/IC, UL/ULC, SIA CP-01 CSFM
