Acerca del producto

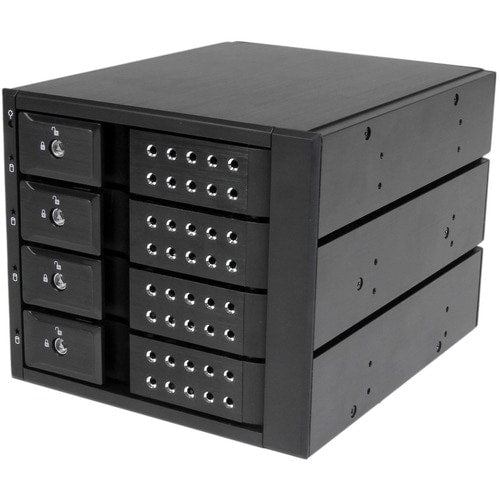

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Solid aluminum construction

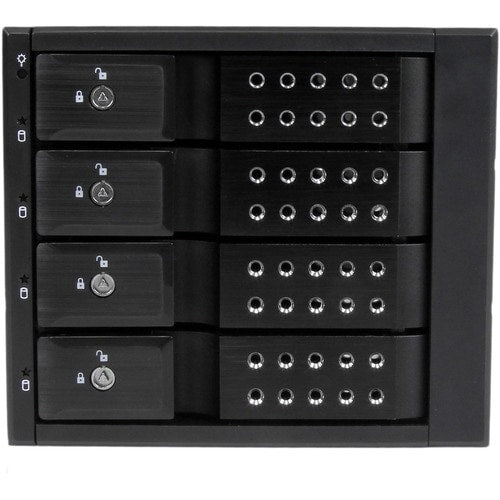

- Key lock design

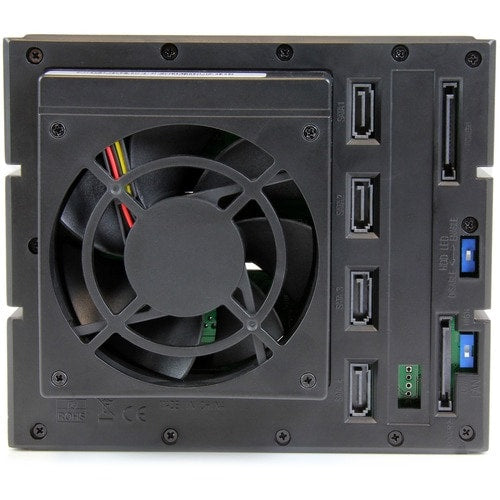

- Built-in fan
- 4 drive bay design
- Installs in three 5.25" drive bays

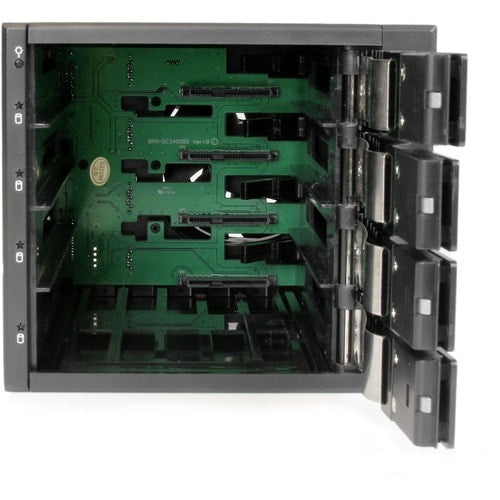

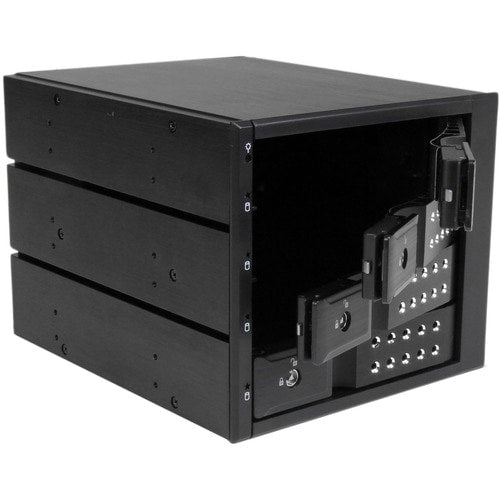

- Trayless design for easier hot swapping
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Support for SAS revision I/II (3.0/6.0 Gbps)
- Power and Activity LEDs for each drive
- UL94 - V0 flammability rating
Especificaciones técnicas
| Network & Communication | |
| Wireless LAN | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| "Number of 3.5"" Bays" | 4 |
| Technical Information | |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | No |
| Interfaces/Ports | |
| Host Interface | 6Gb/s SAS |
| Serial ATA/600 | |
| Drive Interface | SATA/600 |
| Serial Attached SCSI (SAS) | |
| General Information | |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | HSB4SATSASBA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 4 Drive Trayless 3.5in SATA/SAS Mobile Rack |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 2.80 lb (1270.06 g) |
| Form Factor | Internal |
| Height | 5" (127 mm) |
| Width | 5.70" (144.78 mm) |
| Depth | 7.80" (198.12 mm) |
| Compatible Drive Bay Width | 5.25" |
| Cooling Fan | Yes |
| Product Color | Black |
| Color Family | Black |
| Product Material | Aluminum |
