Acerca del producto

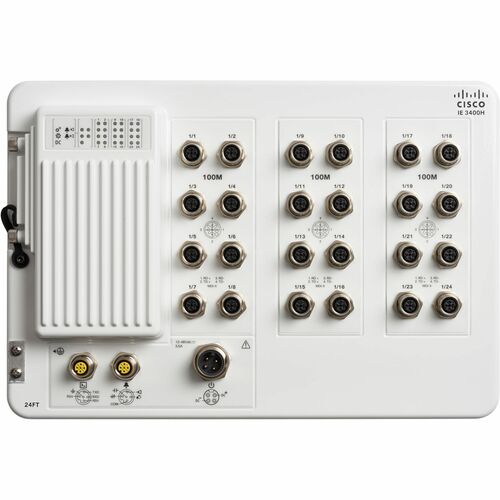

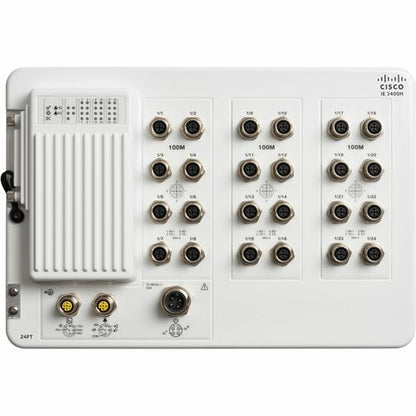

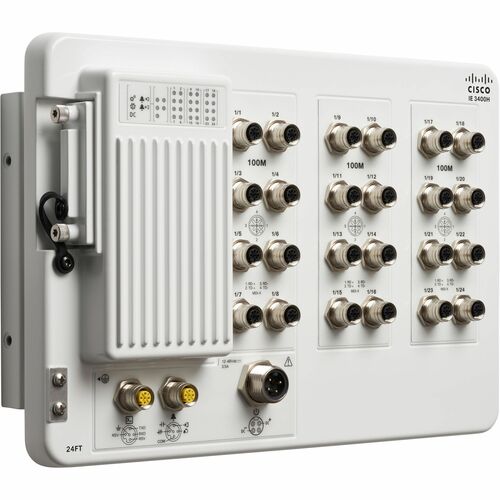

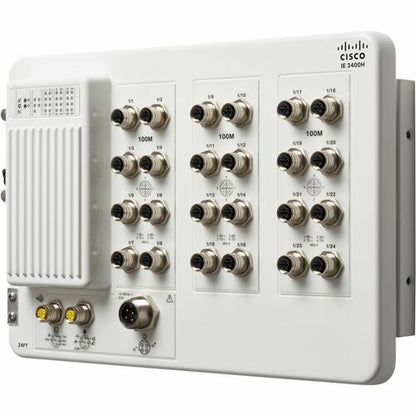

The Cisco Catalyst IE3400 Heavy Duty Series is Cisco's next-generation, IP67-rated switching platform designed to provide enhanced network-based security, segmentation, and visibility in the most demanding industrial environments. The Cisco Catalyst IE3400 Heavy Duty Series switches extend the power of intent-based networking to the harshest Internet of Things (IoT) edge.
Product overview

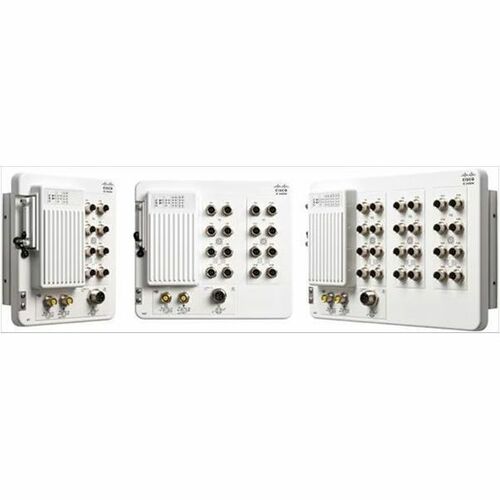

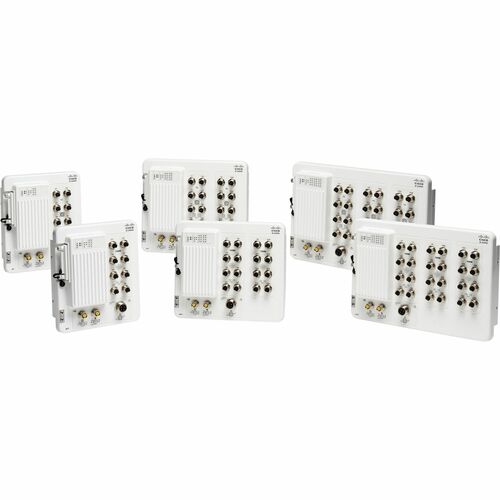

The Cisco Catalyst IE3400 Heavy Duty Series switches deliver the advanced capabilities similar to the Cisco Catalyst IE3400 Rugged Series in environments that have heavy exposure to dust and water. These switches are available with 8, 16, or 24 Fast Ethernet (D-coded) or Gigabit Ethernet (X-coded) M12 interfaces. The switches can be wall mounted and deployed without a housing cabinet.
The IE3400 Heavy Duty Series switches are powered by Cisco IOS XE, a next-generation operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The IE3400 Heavy Duty Series can be managed with powerful tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI. The platform also supports Flexible NetFlow for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch.
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Quickly and easily set up a wired network with 24.0 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24.0 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Interfaces/Ports | |
| Total Number of Network Ports | 24.0 |
| Port/Expansion Slot Details | 24 x Fast Ethernet Network |
| Media & Performance | |
| Network Technology | 1000Base-X |
| Ethernet Technology | Fast Ethernet |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Power Description | |
| Input Voltage | 60 V DC |
| 9.6 V DC | |
| Power Source | DC |
| Power Consumption | 49.80 W |
| Physical Characteristics | |
| Weight (Approximate) | 13.89 lb (6300 g) |
| Form Factor | Wall Mountable |
| Height | 9.58" (243.33 mm) |
| Width | 13.90" (353.06 mm) |
| Depth | 3.15" (80.01 mm) |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE3400H24FTA |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-3400H-24FT |
| Product Name | Catalyst IE-3400H-16FT Ethernet Switch |
| Product Line | Catalyst |
| Product Series | IE3400 |
| Brand Name | Cisco |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3x |
| IEEE 802.3u | |
| IEEE 802.3ad | |
| IEEE 802.3ab | |
| IEEE 802.3 | |
| IEEE 802.1x | |
| IEEE 802.1w | |
| IEEE 802.1s | |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.1ab | |
| IEEE 802.1D |
