Switches & Hubs

Expected delivery 3 to 7 business days (exceptions applied)

Startech

Switch de 8 puertos 4x PoE + GBE Switch gestionado L2 Montaje en pared

Switch de 8 puertos 4x PoE + GBE Switch gestionado L2 Montaje en pared

Precio habitual $457.10 CAD
Precio habitual $511.96 CAD Precio de oferta $457.10 CAD
-10% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
StarTech.com Switch Industrial Gigabit PoE de 8 Puertos - 4 x PoE+ 30W - Switch de Red Administrable por Capa GbE/L2 con Alimentación a Través de Ethernet -40 °C a +75 °C - Switch Industrial Gigabit PoE de 8 puertos Hasta 30 W por 4 puertos Power over Ethernet Temperatura de +75 °C a -40 °C Red de 10/100/1000 Mbps Carcasa IP-30 automática MTBF 500 000+ horas - Clasificación contra vibraciones/golpes/caída libre - ESD de 6 kV Administrado por Capa completa/L2 Montaje DIN/pared Garantía de 2 años

VPN:IES81GPOEW SKU:801389NDN UPC:65030871112

  • ALIMENTACIÓN A TRAVÉS DE ETHERNET: Switch PoE gigabit industrial de hasta 30 W/4 puertos PoE (PSE) a IEEE 802.3af (PoE) e IEEE 802.3at (PoE+) para cámaras, sensores, puntos de acceso Wi-Fi con cable Cat5e o superior. Presupuesto total de energía 120 W
  • DISEÑO PLANO: Carcasa compacta de acero IP-30 con clasificación ESD/vibración/choque/caída libre de 6 kV que permite acceso frontal con fácil instalación; opciones de montaje en riel DIN/pared con hardware incluido; temperaturas de funcionamiento de -40 °C a 75 °C
  • ALIMENTACIÓN FLEXIBLE: El conmutador de red GbE robusto y reforzado se puede cablear mediante alimentación por bloque de terminales (48-56 VCC) o mediante un conector cilíndrico tipo M (12-48 V); kit de bloque de terminales incluido.

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Switch de 8 puertos 4x PoE + GBE Switch gestionado L2 Montaje en pared

Resumen de información del producto

Switch de 8 puertos 4x PoE + GBE Switch gestionado L2 Montaje en pared

Acerca del producto

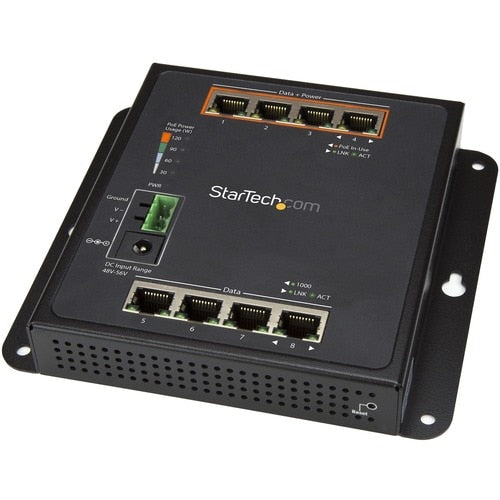

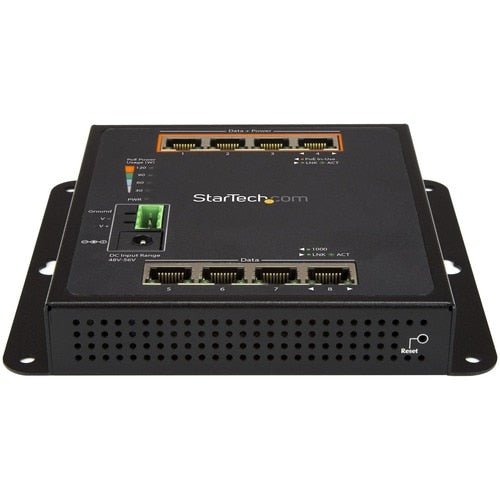

Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your network

This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.

Supports PoE+ for flexible use

The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).

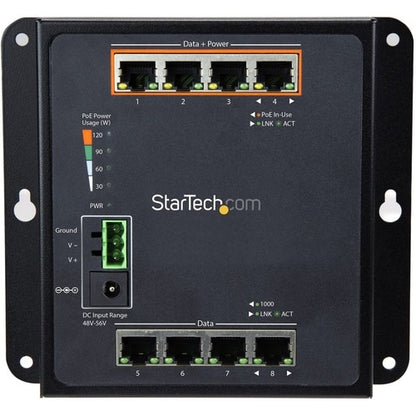

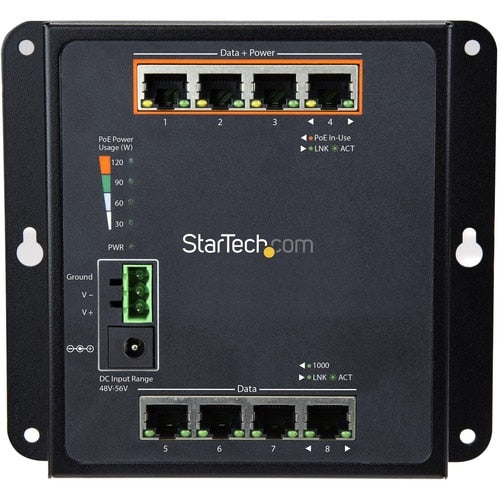

Wall-mountable with front access

With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.

Efficient Layer 2 management

The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.

Rugged industrial design

This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.

Reliable connection for seamless network performance

With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.

To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.

The IES81GPOEW is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

  • POWER OVER ETHERNET: Industrial gigabit PoE switch up to 30W/4 PoE ports (PSE) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) for cameras sensors wi-fi APs w/Cat5e or higher cable Total power budget 120W
  • FLAT DESIGN: Compact IP-30 steel housing w/6kV ESD/Vibration/shock/free fall rating allows for front access w/easy install; DIN rail/wall mounting options w/hardware incl; -40C to 75C operating temps
  • FLEXIBLE POWER: Rugged/hardened GbE network switch can be hardwired using terminal block (48-56VDC) power or by Type-M barrel plug (12-48v); terminal block kit included
  • TECH SPECS: 8 port Gigabit switch | 4 PoE+ ports | 10/100/1000 Mbps auto negotiation | Managed Layer/L2 | VLAN | MTBF 100000+ hrs @ 25"C | Web GUI/SSH/Telnet |Link Aggregation/SNMP/QoS/Spanning Tree
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 8 port Gigabit switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Especificaciones técnicas

Management & Protocols
ManageableYes
Power Description
PoE (RJ-45) PortYes
Media & Performance
Network Technology10/100/1000Base-T
Ethernet TechnologyGigabit Ethernet
Media Type SupportedTwisted Pair
Interfaces/Ports
Network (RJ-45)Yes
Total Number of Network Ports8
Port/Expansion Slot Details4 x Gigabit Ethernet PoE+
4 x Gigabit Ethernet Network
General Information
Product TypeEthernet Switch
Manufacturer Part NumberIES81GPOEW
Manufacturer Website Addresshttp://www.startech.com
Packaged Quantity1 Each
ManufacturerStarTech.com
Product Name8-Port (4 PoE+) Gigabit Ethernet Switch - Managed - Wall Mount with Front Access
Brand NameStarTech.com
Miscellaneous
Package Contents
  • 8-Port (4 PoE+) Gigabit Ethernet Switch - Managed - Wall Mount with Front Access
  • 1 x Terminal block Connector
  • 4 x Screw Anchors
  • 4 x Screws
  • 4 x Attaching Pins
  • 4 x Locking Pins
  • 4 x Washers
  • 4 x Magnets
  • 1 x DIN Rail
  • 3 x DIN Rail Screws
  • 8 x RJ45 Dust Caps
  • 1 x Quick Start Guide
Country of OriginTaiwan
Environmentally FriendlyYes
TAA CompliantYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
Weight (Approximate)1.43 lb (649.20 g)
Form FactorRail-mountable
Wall Mountable
Magnetic Mount
Length5.30" (134.62 mm)
Height1" (25.40 mm)
Width5.80" (147.32 mm)
Product MaterialSteel
Network & Communication
Layer Supported2
Networking StandardsIEEE 802.1w
IEEE 802.1x
IEEE 802.1D
IEEE 802.1p
IEEE 802.3ad
IEEE 802.1Q
IEEE 802.1ab
IEEE 802.1s
