This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.
For Demanding Environments Where No Fiber Connections Are RequiredUsing Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
- Cameras
- Sensors
- Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh ConditionsIndustrial features include:
- Operating Temperature Range: -40 C to 75 C
- IP-30 rated housing
- Vibration, shock, and free-fall standard testing
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.
More from the Manufacturer
- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) | Use with devices like cameras & access points using Cat 5e/6
- TECH SPECS: 8 port GbE PoE switch | 8 PoE ports | IEEE 802.3af / IEEE 802.3at | 10/100/1000 Mbps | Unmanaged | Error Alarm Relay | Redundant Power Input | Terminal Block Power | 200W power budget
- ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount

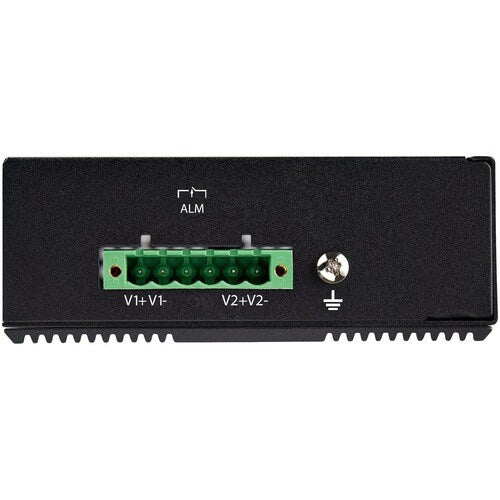

- REDUNDANT POWER: Dual terminal block power inputs (48-56VDC) provide redundancy for high-availability applications
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Especificaciones técnicas
| Management & Protocols | |
| Manageable | No |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Power Description | |
| Power Source | PoE+ |
| Power Consumption | 206 W |
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 200 W |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IESC1G80UP |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Ethernet Switch |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 1.18 lb (535.81 g) |
| Form Factor | DIN Rail Mountable |
| Wall Mountable | |
| Length | 5.60" (142.24 mm) |
| Height | 1.60" (40.64 mm) |
| Width | 4.10" (104.14 mm) |
| Product Material | Steel |
