Acerca del producto
The IMC-370 series offers the most compact media converters. They can extend the 10, 100 and 1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370 series serves as a media and data rate converter.
The IMC-370I-SFP supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.
The IMC-370I supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in a centrally-powered media converter chassis.
- Metal enclosure with compact size
- Industrial grade design that supports an extended operating temperature range (IMC-370I series)
- Provides status LED
- Supports multiple power options: AC or DC adapter and dual USB cable
- Supports Link Fault Pass Through (LFPT) (IMC-370I-SFP)
- Centralized powered IMC-318I chassis
Especificaciones técnicas
| Power Description | |
| Power Source | AC/DC |
| Network & Communication | |
| Network Technology | 10/100/1000Base-TX |
| Ethernet Technology | Gigabit Ethernet |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Media & Performance | |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.03 mil (0 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 11.18 oz (317 g) |
| Form Factor | Rail-mountable |
| Wall Mountable | |
| Height | 0.83" (21.10 mm) |
| Width | 1.80" (45.70 mm) |
| Depth | 3.35" (85.10 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | IMC-371-MM-PS |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IMC-371-MM-PS |

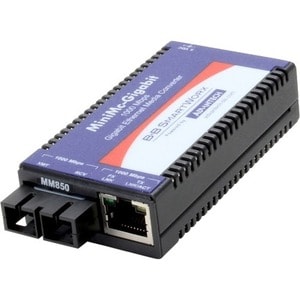

| Product Name | 10/100/1000Mbps Miniature Media Converter |
| Product Series | IMC-370I |
| Brand Name | B+B SmartWorx |
