Acerca del producto

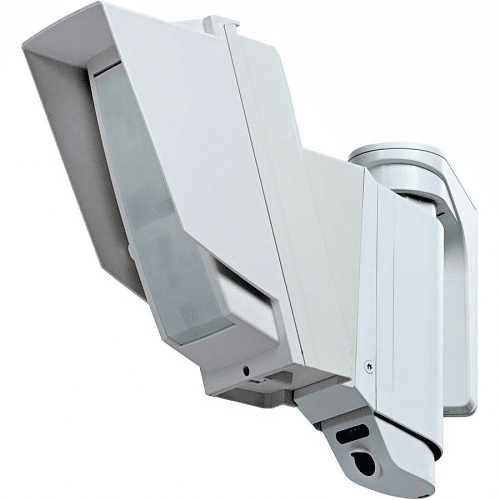

The OPTEX Outdoor PIR Camera with Intelligent VCA is a sensor-based visual verification solution with a built-in PIR sensor that integrates directly with the Optex Bridge and CHeKT Visual Verification platform to virtually eliminate false alarms and dispatches-- it can also run as a standalone compliment to a variety of DVR, NVR or VMS security systems using ONVIF. The InSight Outdoor PIR system is not affected by lights, wind, rain or snow, features automatic small animal tolerance technology to eliminate common outdoor nusiance alarms; and by combining both VCA detection and PIR detection the InSight PIR Camera greatly improves the reliability of alarm signals. Paired with the OPTEX Bridge & CHeKT Visual Verification portal, the InSight provides a totally comprehensive intelligent visual monitoring solution.
INS-HX-80N Features and Specs:
- Image Sensor: 1/2.8'' CMOS
- Max Resolution: 1920 x 1080 @ 30 FPS
- Angle of View: 114° (Horizontal), 61° (Vertical)
- IR Illumination: 18m
- PIR Coverage: 24m x 2m (80' x 6'7'') narrow
- PIR Zones: 20 zones
- PIR Distance Limit: 6.5m (22'), 10m (33'), 13m (43'), 18m (60') selectable, default 13m (43')
- Sensitivity: 2°C (3.6°F) at 0.6 m/s
- Image Compression: H.264, H.265, MJPEG
- Alarm Output: N.C/N.O switchable, 28VDC @ 0.1A max
- Weatherproofing: IP55
- Mounting: Wall (Outdoor, Indoor), Gang box
- Mounting height: 2.5 to 3m (8'2'' to 10')
- Network Protocol: IPv4: TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, SNMPv1/v2/v3(MIB-2), ONVIF
- Power Supply: PoE (802.3af), Mini-jack 12VDC 420 mA max, Terminal 9.5 to 18 VDC/35 mA max @ 12VDC
- Dimensions: 92mm x 353mm x 255mm
- Weight: 1.2 kg
Especificaciones técnicas
The OPTEX Outdoor PIR Camera with Intelligent VCA is a sensor-based visual verification solution with a built-in PIR sensor that integrates directly with the Optex Bridge and CHeKT Visual Verification platform to virtually eliminate false alarms and dispatches-- it can also run as a standalone compliment to a variety of DVR, NVR or VMS security systems using ONVIF. The InSight Outdoor PIR system is not affected by lights, wind, rain or snow, features automatic small animal tolerance technology to eliminate common outdoor nusiance alarms; and by combining both VCA detection and PIR detection the InSight PIR Camera greatly improves the reliability of alarm signals. Paired with the OPTEX Bridge & CHeKT Visual Verification portal, the InSight provides a totally comprehensive intelligent visual monitoring solution.
INS-HX-80N Features and Specs:
- Image Sensor: 1/2.8'' CMOS
- Max Resolution: 1920 x 1080 @ 30 FPS
- Angle of View: 114° (Horizontal), 61° (Vertical)
- IR Illumination: 18m
- PIR Coverage: 24m x 2m (80' x 6'7'') narrow
- PIR Zones: 20 zones
- PIR Distance Limit: 6.5m (22'), 10m (33'), 13m (43'), 18m (60') selectable, default 13m (43')
- Sensitivity: 2°C (3.6°F) at 0.6 m/s
- Image Compression: H.264, H.265, MJPEG
- Alarm Output: N.C/N.O switchable, 28VDC @ 0.1A max
- Weatherproofing: IP55
- Mounting: Wall (Outdoor, Indoor), Gang box
- Mounting height: 2.5 to 3m (8'2'' to 10')
- Network Protocol: IPv4: TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, SNMPv1/v2/v3(MIB-2), ONVIF
- Power Supply: PoE (802.3af), Mini-jack 12VDC 420 mA max, Terminal 9.5 to 18 VDC/35 mA max @ 12VDC
- Dimensions: 92mm x 353mm x 255mm
- Weight: 1.2 kg
