Acerca del producto

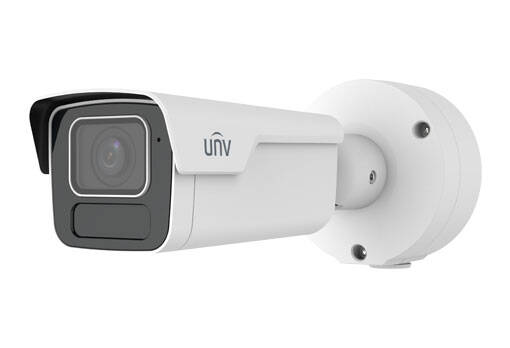

The Uniview 4MP HD Intelligent LightHunter IR60 Autofocus Bullet Camera with motorized 2.7mm to 12.5mm lens covers dynamic and evolving scenes, providing sharp 4MP HD video (2688 x 1520p) along with automatic focusing and motorized zoom lens for wide area coverage or precise, cropped monitoring—ideal for entrances, vestibules, exterior parking lots, and more.
LightHunter technology ensures high-precision imaging in low light environments, including colour retrieval, while built-in IR works in total darkness, capturing subjects up to 60m away. Smart features like perimeter protection, line crossing (including enter/leave area) and intrusion protection captures subjects based on target algorithms—prioritizing human and vehicle subjects, while ignoring debris and animals.
Additional analytic options like people counting, flow rate and crowd density monitoring are ideal for high-traffic or high-volume installs like parks and other public places, while the IP67 water ingress protection and IK10 vandal resistance allows for versatile indoor/outdoor use while preventing equipment damage from trespassers or troublemakers.
Alarm I/O allows for linkage into larger alarm systems, built-in mic and audio-out ports enable full two-way audio—ideal for front line installation. PoE powered, DC 12V option also available (not included).
IPC2B24SS-ADZK-I1 Specs and Features
- Sensor: 1/3"", 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Colour: 0.002lux (F1.2, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s
- Adjustment angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotate: 0° ~ 360°
- WDR: 130dB
- S/N: >56 dB
- Lens: 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
- Iris: Fixed
- Field of View:
- Horizontal: 103.8°~29.7°
- Vertical: 56.7°~16.7°
- Diagonal: 108.3°~33.7°
- DORI Distance: 303.8’, 121.5’, 60.8’, 30.4’ (60.8m, 24.3m, 12.2m, 6.1m)
- IR Range: Up to 60m (196ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 code profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Triple streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication, HTTP Authentication
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported (Additional hardware required for audio output)
- Suppression: Supported
- Sampling Rate: 8KHZ
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client: EZStation, EZView, EZLive
- Audio I/O: 1x Input: impedance 35k?; amplitude 2V [p-p], 1x Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Yes
- Built-in Speaker: No
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 9.5W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (L × W × H): 324 × 126 × 130mm (12.8” × 5.0” × 5.1”)
- Weight: 1.48kg (3.26lb)
- Material: Metal+Plastic
- Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 6KV
- Reset Button: Supported
- EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130); FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529); IK10 (IEC 62262)
Especificaciones técnicas
The Uniview 4MP HD Intelligent LightHunter IR60 Autofocus Bullet Camera with motorized 2.7mm to 12.5mm lens covers dynamic and evolving scenes, providing sharp 4MP HD video (2688 x 1520p) along with automatic focusing and motorized zoom lens for wide area coverage or precise, cropped monitoring—ideal for entrances, vestibules, exterior parking lots, and more.
LightHunter technology ensures high-precision imaging in low light environments, including colour retrieval, while built-in IR works in total darkness, capturing subjects up to 60m away. Smart features like perimeter protection, line crossing (including enter/leave area) and intrusion protection captures subjects based on target algorithms—prioritizing human and vehicle subjects, while ignoring debris and animals.
Additional analytic options like people counting, flow rate and crowd density monitoring are ideal for high-traffic or high-volume installs like parks and other public places, while the IP67 water ingress protection and IK10 vandal resistance allows for versatile indoor/outdoor use while preventing equipment damage from trespassers or troublemakers.
Alarm I/O allows for linkage into larger alarm systems, built-in mic and audio-out ports enable full two-way audio—ideal for front line installation. PoE powered, DC 12V option also available (not included).
IPC2B24SS-ADZK-I1 Specs and Features
- Sensor: 1/3"", 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Colour: 0.002lux (F1.2, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s
- Adjustment angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotate: 0° ~ 360°
- WDR: 130dB
- S/N: >56 dB
- Lens: 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
- Iris: Fixed
- Field of View:
- Horizontal: 103.8°~29.7°
- Vertical: 56.7°~16.7°
- Diagonal: 108.3°~33.7°
- DORI Distance: 303.8’, 121.5’, 60.8’, 30.4’ (60.8m, 24.3m, 12.2m, 6.1m)
- IR Range: Up to 60m (196ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 code profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Triple streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication, HTTP Authentication
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported (Additional hardware required for audio output)
- Suppression: Supported
- Sampling Rate: 8KHZ
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client: EZStation, EZView, EZLive
- Audio I/O: 1x Input: impedance 35k?; amplitude 2V [p-p], 1x Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Yes
- Built-in Speaker: No
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 9.5W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (L × W × H): 324 × 126 × 130mm (12.8” × 5.0” × 5.1”)
- Weight: 1.48kg (3.26lb)
- Material: Metal+Plastic
- Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 6KV
- Reset Button: Supported
- EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130); FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529); IK10 (IEC 62262)
