UNV Uniview

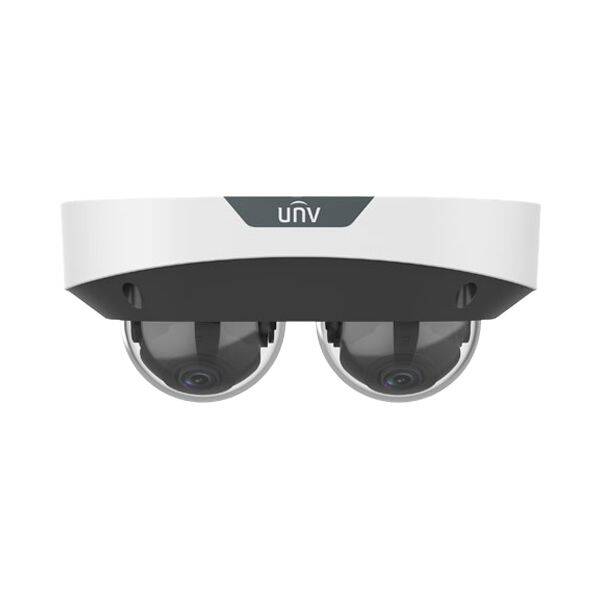

Cámara IP Uniview de red, 2 x 4 MP, doble canal, sin concreción, serie Multiview, 2,8 mm (IPC3224SS-ADF28K-I1)

Name: Cámara IP Uniview de red, 2 x 4 MP, doble canal, sin concreción, serie Multiview, 2,8 mm (IPC3224SS-ADF28K-I1)
Brand: UNV Uniview
SKU: AT351630
Price: 371.99 CAD
Availability: InStock

$371.99 CAD

~~$416.99 CAD~~ $371.99 CAD

-10% OFF Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cámara IP Uniview de red, 2 x 4 MP, doble canal, sin concreción, serie Multiview, 2,8 mm (IPC3224SS-ADF28K-I1)

VPN: IPC3224SS-ADF28K-I1 SKU: AT351630 UPC: 810093323913

Bloque de texto

Cantidad

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Resumen de información del producto

Cámara IP Uniview de red, 2 x 4 MP, doble canal, sin concreción, serie Multiview, 2,8 mm (IPC3224SS-ADF28K-I1)

Acerca del producto

2*4MP Dual-channel Non-Splicing Multiview Series IR Fixed Intelligent Network Camera

Uniview IP Network 2 x 4MP Dual-channel Non-Spicing Multiview Series, 2.8mm Features:

High quality image with 2*4MP resolution, 1/3.0""CMOS sensor
Single IP with dual channels
4MP (2688*1520)@25/20fps; 4MP(2560*1440)@25/20fps; 3MP(2304*1296) @30/25fps;2MP(1920*1080)@30/25fps
Ultra 265, H.264,H.265, MJPEG
Both channels support intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduces false alarms caused by leaves, birds lights etc., accurately focuses on human and motor vehicle and non-motor vehicle
Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
130dB true WDR technology enables clear images in the strong light scene
Built-in two Mics
Supports 256 GB Micro SD card
DC12V or PoE(IEEE 802.3af) power supply
IP67 protection and IK10 vandal resistant
3-Axis

Uniview IP Network 2 x 4MP Dual-channel Non-Spicing Multiview Series, 2.8mm Specifications:

Camera
- Sensor: 1/3.0"", 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
  - Colour:0.002 (F1.6, AGC ON)
  - 0 lux with IR
- Day/Night IR-cut filter with auto switch (ICR)
- Shutter Auto/Manual, 1 ~ 1/100000s
- Adjustment angle
  - Pan: 0° ~ 180°
  - Tilt: 0° ~ 66°
  - Rotate: 0° ~ 346°
- WDR: 130dB
- S/N: >52dB
Lens:
- Lens type
  - 2.8mm@F1.6
  - 4.0mm@F1.6
- Iris: Fixed
- Field of View (H)
  - 97.7°
  - 81.4°
- Field of View (V)
  - 52.7°
  - 43.4°
- Field of View (O)
  - 102.5°
  - 86.9
DORI:
- DORI Distance:
  - Lens (mm): 2.8, 4.0
  - Detect (m): 63.0m(206.7ft), 90.0m(295.3ft)
  - Observe (m): 25.2m(82.7ft), 36.0m(118.1ft)
  - Recognize (m): 12.6m(41.3ft), 18.0m(59.1ft)
  - Identify (m): 6.3m(20.7ft), 9.0m(29.5ft)
Illuminator
- IR Range: Up to 30m (98ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
Video
- Video Compression Ultra 265, H.265, H.264, MJPEG
- H.264 code profile Baseline profile, Main profile, High profile
- Frame Rate Main Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate 128 Kbps~16 Mbps
- U-code Support
- OSD Up to 8 OSDs
- Privacy Mask Up to 4 areas
- ROI Up to 8 areas
- Video Stream Triple streams
- White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction 2D/3D DNR
- Smart IR Support
- Flip Normal/ Flip Vertical/ Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping N/A
- HLC Support
- BLC Support
- Defog Digital Defog
Intelligent
- Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area Detection
- Statistical Analysis People counting, support people flow counting and crowd density monitoring(Only Channel 1)
Events:
- Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Audio
- Audio Compression G.711U, G.711A
- Audio Bitrate 64 Kbps
- Two-way audio Support
- Suppression Support
- Sampling Rate 8KHZ
Storage
- Edge Storage Micro SD, up to 256GB
- Network Storage ANR, NAS(NFS)
Network:
- Protocols IPv4,IPv6, IGMP, ICMP ,ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration ONVIF (Profile S, Profile T, Profile G), API,SDK
- User/Host Up to 32 users. 3 user levels: administrator, common user and operator
- Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client EZStation, EZView, EZLive
- Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Audio I/O Input: impedance 35k?; amplitude 2V [p-p] Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O 1/1
- Serial Port N/A
- Built-in Mic Built-in two Mics
- Built-in Speaker N/A
- WIFI N/A
- Network 1 RJ45 10M/100M Base-TX Ethernet
- Video Output N/A
Certifications:
- EMC CE-EMC (EN 55032, EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)
- Safety CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
- Protection IP67 (IEC 60529) IK10 (IEC 62262)
General
- Power DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 9.1w
- Power Interface Ø 5.5mm coaxial power plug
- Dimensions 176×104×72mm (6.9"" × 4.1"" ×2.8"")
- Weight 0.62kg(1.37lb)
- Material Metal
- Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Surge Protection 4KV
- Reset Button Support

Especificaciones técnicas

2*4MP Dual-channel Non-Splicing Multiview Series IR Fixed Intelligent Network Camera

Uniview IP Network 2 x 4MP Dual-channel Non-Spicing Multiview Series, 2.8mm Features:

High quality image with 2*4MP resolution, 1/3.0""CMOS sensor
Single IP with dual channels
4MP (2688*1520)@25/20fps; 4MP(2560*1440)@25/20fps; 3MP(2304*1296) @30/25fps;2MP(1920*1080)@30/25fps
Ultra 265, H.264,H.265, MJPEG
Both channels support intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduces false alarms caused by leaves, birds lights etc., accurately focuses on human and motor vehicle and non-motor vehicle
Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
130dB true WDR technology enables clear images in the strong light scene
Built-in two Mics
Supports 256 GB Micro SD card
DC12V or PoE(IEEE 802.3af) power supply
IP67 protection and IK10 vandal resistant
3-Axis

Uniview IP Network 2 x 4MP Dual-channel Non-Spicing Multiview Series, 2.8mm Specifications:

Camera
- Sensor: 1/3.0"", 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
  - Colour:0.002 (F1.6, AGC ON)
  - 0 lux with IR
- Day/Night IR-cut filter with auto switch (ICR)
- Shutter Auto/Manual, 1 ~ 1/100000s
- Adjustment angle
  - Pan: 0° ~ 180°
  - Tilt: 0° ~ 66°
  - Rotate: 0° ~ 346°
- WDR: 130dB
- S/N: >52dB
Lens:
- Lens type
  - 2.8mm@F1.6
  - 4.0mm@F1.6
- Iris: Fixed
- Field of View (H)
  - 97.7°
  - 81.4°
- Field of View (V)
  - 52.7°
  - 43.4°
- Field of View (O)
  - 102.5°
  - 86.9
DORI:
- DORI Distance:
  - Lens (mm): 2.8, 4.0
  - Detect (m): 63.0m(206.7ft), 90.0m(295.3ft)
  - Observe (m): 25.2m(82.7ft), 36.0m(118.1ft)
  - Recognize (m): 12.6m(41.3ft), 18.0m(59.1ft)
  - Identify (m): 6.3m(20.7ft), 9.0m(29.5ft)
Illuminator
- IR Range: Up to 30m (98ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
Video
- Video Compression Ultra 265, H.265, H.264, MJPEG
- H.264 code profile Baseline profile, Main profile, High profile
- Frame Rate Main Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate 128 Kbps~16 Mbps
- U-code Support
- OSD Up to 8 OSDs
- Privacy Mask Up to 4 areas
- ROI Up to 8 areas
- Video Stream Triple streams
- White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction 2D/3D DNR
- Smart IR Support
- Flip Normal/ Flip Vertical/ Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping N/A
- HLC Support
- BLC Support
- Defog Digital Defog
Intelligent
- Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area Detection
- Statistical Analysis People counting, support people flow counting and crowd density monitoring(Only Channel 1)
Events:
- Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Audio
- Audio Compression G.711U, G.711A
- Audio Bitrate 64 Kbps
- Two-way audio Support
- Suppression Support
- Sampling Rate 8KHZ
Storage
- Edge Storage Micro SD, up to 256GB
- Network Storage ANR, NAS(NFS)
Network:
- Protocols IPv4,IPv6, IGMP, ICMP ,ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration ONVIF (Profile S, Profile T, Profile G), API,SDK
- User/Host Up to 32 users. 3 user levels: administrator, common user and operator
- Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client EZStation, EZView, EZLive
- Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Audio I/O Input: impedance 35k?; amplitude 2V [p-p] Output: impedance 600?; amplitude 2V [p-p]
- Alarm I/O 1/1
- Serial Port N/A
- Built-in Mic Built-in two Mics
- Built-in Speaker N/A
- WIFI N/A
- Network 1 RJ45 10M/100M Base-TX Ethernet
- Video Output N/A
Certifications:
- EMC CE-EMC (EN 55032, EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)
- Safety CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
- Protection IP67 (IEC 60529) IK10 (IEC 62262)
General
- Power DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 9.1w
- Power Interface Ø 5.5mm coaxial power plug
- Dimensions 176×104×72mm (6.9"" × 4.1"" ×2.8"")
- Weight 0.62kg(1.37lb)
- Material Metal
- Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Surge Protection 4KV
- Reset Button Support
