Acerca del producto

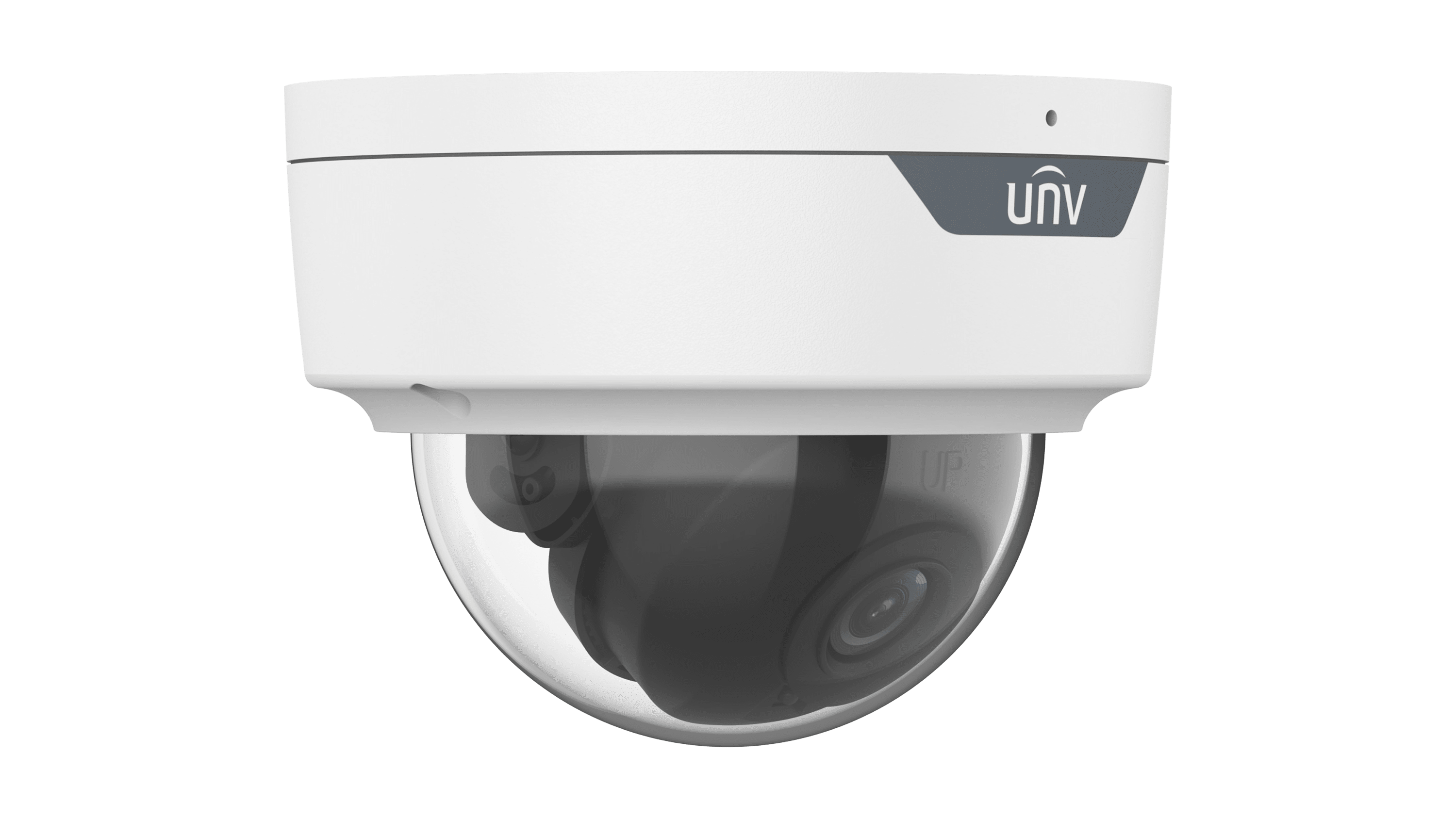

The Uniview 5MP LightHunter Fixed IR Dome Network Camera is a high-fidelity PoE network camera with analytics and vandal-resistance designed for low-light indoor or outdoor installation in high-traffic public areas, like stairwells or parking garages.
Smart features like intelligent perimeter protection (cross line, intrusion, enter/exit area) can be linked into alarm systems natively via 1x alarm I/O, and the built-in mic and audio output options can be tied into speaker systems to directly address intruders or trespassers.
Additional features include human/vehicle (motor and non-motor vehicle) detection, intelligent people flow counting and density monitoring.
Smart IR up to 40m along with LightHunter technology ensures high-quality recording in dark or no-light environments, and the IP67 ingress protection paired with IK10 vandal resistance makes it ideal for semi-open or non-conditioned buildings, external walkways, employee-only entrances and more. 130 dB true WDR technology even ensures clear imaging in harsh lighting conditions like direct sunlight, glare or car headlights—preventing common nuisances like shadowed subjects or blown-out, muddy recordings.
PoE powered, optional DC 12V power via Ø5.5mm coax (not included). Supports up to 512GB microSD card for local or backup recording.
IPC325SS-ADF40K-I1 Specs and Features
- Max Resolution: 5 MP
- Sensor: 1/2.7"" CMOS
- Min. Illumination
- Colour: 0.002 lux (F1.6, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle: Pan: 0° ~ 352°, Tilt: 0° ~ 70°, Rotate: 0° ~ 350°
- S/N: >52 dB
- WDR: 130 dB
- Focal Length: 4mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View
- Horizontal: 91.2°
- Vertical: 41.7°
- Diagonal: 95.3°
- DORI Distance
- Detect: 90m (295 feet)
- Observe: 36m (118.1 feet)
- Recognize: 18.m (59 feet)
- Identify: 9m (30 feet)
- Supplemental Light: IR
- Illumination Distance (IR): 40 m (131.2 ft)
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported (additional audio output hardware required)
- Suppression: Supported
- Sampling Rate: 8 kHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Audio I/O: 1 Input: impedance 35 k?, amplitude 2 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Yes
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 6.5W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø111 x 83mm (Ø4.4” x 3.3”) (Ø x H)
- Weight: 0.42kg (0.93lb)
- Material: Metal
- Working Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Surge Protection: 4 KV
- Reset Button: Supported
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
Especificaciones técnicas
The Uniview 5MP LightHunter Fixed IR Dome Network Camera is a high-fidelity PoE network camera with analytics and vandal-resistance designed for low-light indoor or outdoor installation in high-traffic public areas, like stairwells or parking garages.
Smart features like intelligent perimeter protection (cross line, intrusion, enter/exit area) can be linked into alarm systems natively via 1x alarm I/O, and the built-in mic and audio output options can be tied into speaker systems to directly address intruders or trespassers.
Additional features include human/vehicle (motor and non-motor vehicle) detection, intelligent people flow counting and density monitoring.
Smart IR up to 40m along with LightHunter technology ensures high-quality recording in dark or no-light environments, and the IP67 ingress protection paired with IK10 vandal resistance makes it ideal for semi-open or non-conditioned buildings, external walkways, employee-only entrances and more. 130 dB true WDR technology even ensures clear imaging in harsh lighting conditions like direct sunlight, glare or car headlights—preventing common nuisances like shadowed subjects or blown-out, muddy recordings.
PoE powered, optional DC 12V power via Ø5.5mm coax (not included). Supports up to 512GB microSD card for local or backup recording.
IPC325SS-ADF40K-I1 Specs and Features
- Max Resolution: 5 MP
- Sensor: 1/2.7"" CMOS
- Min. Illumination
- Colour: 0.002 lux (F1.6, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle: Pan: 0° ~ 352°, Tilt: 0° ~ 70°, Rotate: 0° ~ 350°
- S/N: >52 dB
- WDR: 130 dB
- Focal Length: 4mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View
- Horizontal: 91.2°
- Vertical: 41.7°
- Diagonal: 95.3°
- DORI Distance
- Detect: 90m (295 feet)
- Observe: 36m (118.1 feet)
- Recognize: 18.m (59 feet)
- Identify: 9m (30 feet)
- Supplemental Light: IR
- Illumination Distance (IR): 40 m (131.2 ft)
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported (additional audio output hardware required)
- Suppression: Supported
- Sampling Rate: 8 kHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Audio I/O: 1 Input: impedance 35 k?, amplitude 2 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Yes
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 6.5W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø111 x 83mm (Ø4.4” x 3.3”) (Ø x H)
- Weight: 0.42kg (0.93lb)
- Material: Metal
- Working Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- Surge Protection: 4 KV
- Reset Button: Supported
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
