Acerca del producto

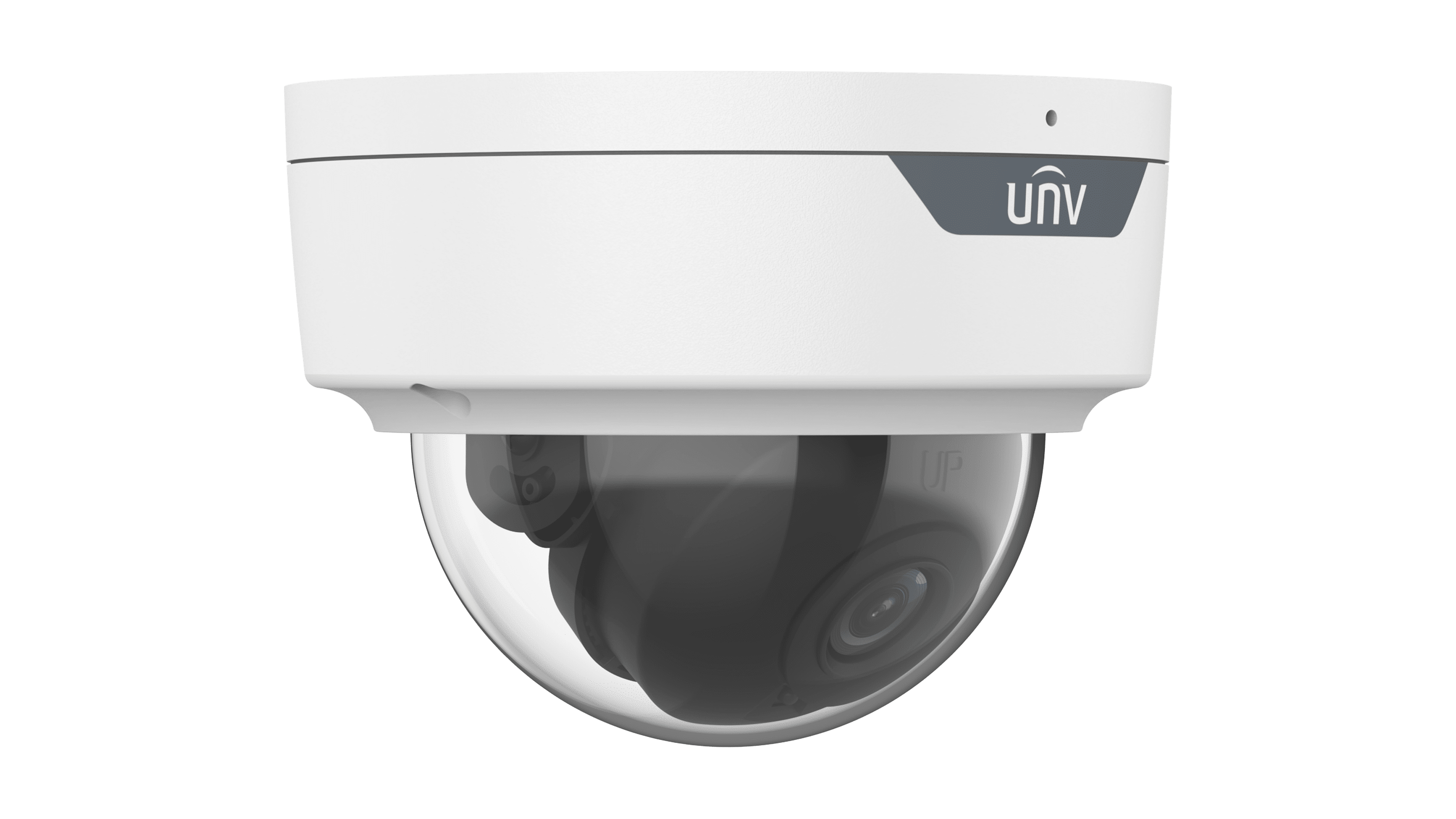

The Uniview 8MP 4K HD IP Fixed Dome Network Camera with LightHunter and IR packs high quality imaging and smart features alongside full-colour night/low-light recording and advanced alarm I/O outputs for integration into larger security systems. Built-in mic and 1x audio output can link the camera into a sound system for two-way addressing of trespassers and visitors alike.
LightHunter technology ensures high-precision imaging in low light environments, including colour retrieval, while built-in IR works in total darkness, capturing subjects up to 40m away. Smart features like perimeter protection, line crossing (including enter/leave area) and intrusion protection captures subjects based on target algorithms—prioritizing human and vehicle subjects, while ignoring debris and animals.
IP67 protection ensures year-round indoor/outdoor installation, while the IK10 vandal resistance makes it ideal for public installs like parking structures and stairwells. Additional smart features like intelligent people flow counting and crowd density monitoring makes it ideal for monitoring high-traffic public areas.
IPC328SS-ADF28K-I1 Specs and Features
- Max Resolution: 8 MP
- Sensor: 1/2.8"" CMOS
- Min. Illumination:
- Colour: 0.002 lux (F1.6, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 352°
- Tilt: 0° ~ 70°
- Rotate: 0° ~ 350°
- S/N: >56 dB
- WDR: 130 dB
- Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View:
- (H): 97.49°
- (V): 52.31°
- (D): 102.29°
- Lens Type: Fixed
- Illumination Distance (IR): 40 m (131.2 ft)
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps;4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- People Counting: Support People Flow Counting and Crowd Density Monitoring
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported (additional hardware required)
- Suppression: Supported
- Sampling Rate: 8 kHz
- Edge Storage: Micro SD, up to 512 GBNet
- work Storage: ANR, NAS (NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Audio I/O: 1 Input: impedance 35 k?, amplitude 2 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Yes
- Built-in Speaker: No
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 7.0W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø111 x 83mm (Ø4.4” x 3.3”) (Ø x H)
- Weight: 0.43kg (0.95lb)
- Material: Metal
- Working Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
Especificaciones técnicas
The Uniview 8MP 4K HD IP Fixed Dome Network Camera with LightHunter and IR packs high quality imaging and smart features alongside full-colour night/low-light recording and advanced alarm I/O outputs for integration into larger security systems. Built-in mic and 1x audio output can link the camera into a sound system for two-way addressing of trespassers and visitors alike.
LightHunter technology ensures high-precision imaging in low light environments, including colour retrieval, while built-in IR works in total darkness, capturing subjects up to 40m away. Smart features like perimeter protection, line crossing (including enter/leave area) and intrusion protection captures subjects based on target algorithms—prioritizing human and vehicle subjects, while ignoring debris and animals.
IP67 protection ensures year-round indoor/outdoor installation, while the IK10 vandal resistance makes it ideal for public installs like parking structures and stairwells. Additional smart features like intelligent people flow counting and crowd density monitoring makes it ideal for monitoring high-traffic public areas.
IPC328SS-ADF28K-I1 Specs and Features
- Max Resolution: 8 MP
- Sensor: 1/2.8"" CMOS
- Min. Illumination:
- Colour: 0.002 lux (F1.6, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 352°
- Tilt: 0° ~ 70°
- Rotate: 0° ~ 350°
- S/N: >56 dB
- WDR: 130 dB
- Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View:
- (H): 97.49°
- (V): 52.31°
- (D): 102.29°
- Lens Type: Fixed
- Illumination Distance (IR): 40 m (131.2 ft)
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps;4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- People Counting: Support People Flow Counting and Crowd Density Monitoring
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Supported (additional hardware required)
- Suppression: Supported
- Sampling Rate: 8 kHz
- Edge Storage: Micro SD, up to 512 GBNet
- work Storage: ANR, NAS (NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Audio I/O: 1 Input: impedance 35 k?, amplitude 2 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Yes
- Built-in Speaker: No
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 7.0W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø111 x 83mm (Ø4.4” x 3.3”) (Ø x H)
- Weight: 0.43kg (0.95lb)
- Material: Metal
- Working Environment: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ? 95% RH (non-condensing)
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529), IK10 (IEC 62262)
