Cámara de red IP Uniview de 4 MP, PoE, IR 30 m, 4 mm (IPC3614SR-ADF40KM-H)

Name: Cámara de red IP Uniview de 4 MP, PoE, IR 30 m, 4 mm (IPC3614SR-ADF40KM-H)
Brand: UNV Uniview
SKU: AT211889
Price: 136.99 CAD
Availability: InStock

$136.99 CAD

~~$153.99 CAD~~ $136.99 CAD

-11% OFF Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cámara de red IP Uniview de 4 MP, PoE, IR 30 m, 4 mm (IPC3614SR-ADF40KM-H)

VPN: IPC3614SR-ADF40KM-H SKU: AT211889 UPC: 810093320424

Bloque de texto

Cantidad

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Resumen de información del producto

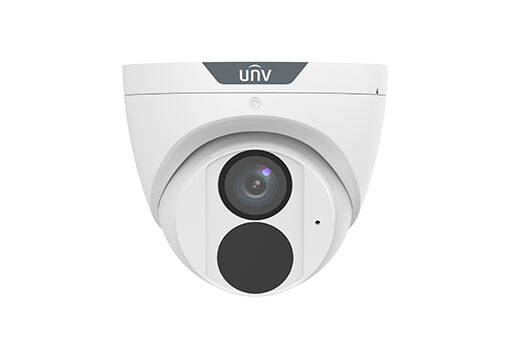

Uniview IP Network Turret Camera, 4MP, PoE, IR 30m, 4mm (IPC3614SR-ADF40KM-H)

Acerca del producto

The Uniview 4mm 4MP IP Network PoE Turret Camera delivers a high-quality 4MP image with 24/7 recording with built-in 30m automatic IR and Easystar technology for clear 0 Lux recording—day or night. IP67 ensures year-round indoor or outdoor installation.

Extra smart features like line crossing, intrusion detection and vehicle/person target classification eliminates false alarms and allows for cameras to record on event accurately, saving space on connected NVRs or edge storage on microSD (up to 512GB supported).

IPC3614SR-ADF40KM-H Specs and Features

Max Resolution: 4MP
Sensor: 1/3.0"" CMOS
Min. Illumination: Colour: 0.003 lux ( F1.6, AGC ON); 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N: >52dB
WDR: 120dB
Focal Length: 4mm
Iris Type: Fixed
Iris: F1.6
Field of View (HVD): 79.0°, 42.3°, 85.1°
Supplemental Light: IR
Illumination Distance(IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual
Video Compression: Ultra 265; H.265; H.264; MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate:
- Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
Video Bit Rate: 128 Kbps ~ 6144 Kbps
U-code: Supported
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video Stream: Dual Streams
White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
HLC: Supported
BLC: Supported
Defog: Digital Defog
Basic Detection: Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
Audio Compression: G.711U; G.711A
Audio Bitrate: 64 Kbps
Suppression: Supported
Sampling Rate: 8KHZ
Edge Storage: Micro SD, up to 512 GB
Network Storage: ANR; NAS (NFS)
Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client: UNV-Link; UNV-Link Pro; EZStation
Power: DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.4W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions: ?111 x 95mm (?4.4” x 3.7”)
Weight: 0.32kg (0.71lb)
Material: Metal
Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) 5; FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)

Datasheet

Especificaciones técnicas

IPC3614SR-ADF40KM-H Specs and Features

Max Resolution: 4MP
Sensor: 1/3.0"" CMOS
Min. Illumination: Colour: 0.003 lux ( F1.6, AGC ON); 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N: >52dB
WDR: 120dB
Focal Length: 4mm
Iris Type: Fixed
Iris: F1.6
Field of View (HVD): 79.0°, 42.3°, 85.1°
Supplemental Light: IR
Illumination Distance(IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual
Video Compression: Ultra 265; H.265; H.264; MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate:
- Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
Video Bit Rate: 128 Kbps ~ 6144 Kbps
U-code: Supported
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video Stream: Dual Streams
White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
HLC: Supported
BLC: Supported
Defog: Digital Defog
Basic Detection: Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
Audio Compression: G.711U; G.711A
Audio Bitrate: 64 Kbps
Suppression: Supported
Sampling Rate: 8KHZ
Edge Storage: Micro SD, up to 512 GB
Network Storage: ANR; NAS (NFS)
Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client: UNV-Link; UNV-Link Pro; EZStation
Power: DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.4W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions: ?111 x 95mm (?4.4” x 3.7”)
Weight: 0.32kg (0.71lb)
Material: Metal
Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) 5; FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)

Datasheet
