Uniview's OlwView Wise-ISP 5th generation night vision technology offers previously impossible full colour images at night. The technology is so impressive that it caused Internet comments claiming it was fake.

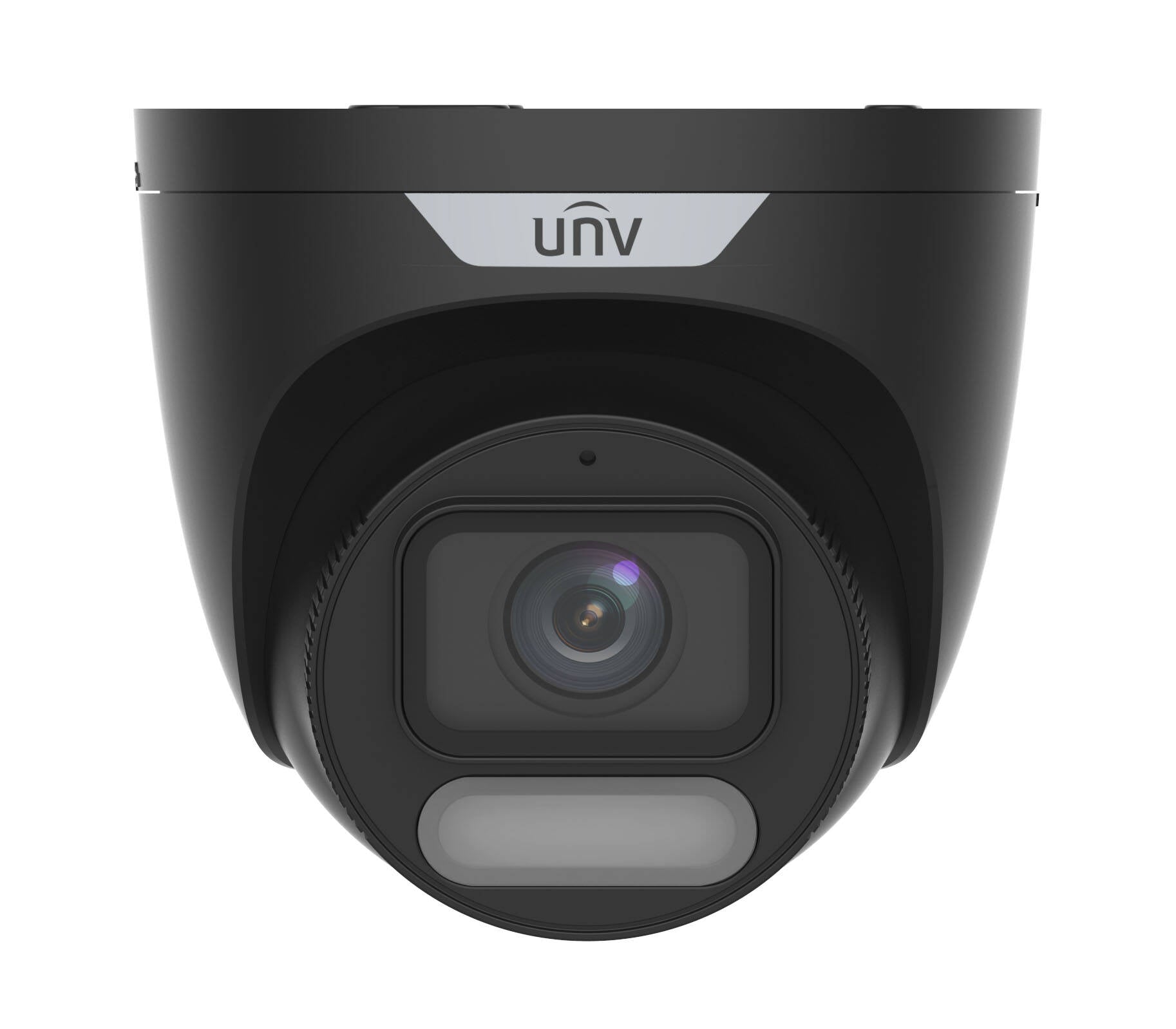

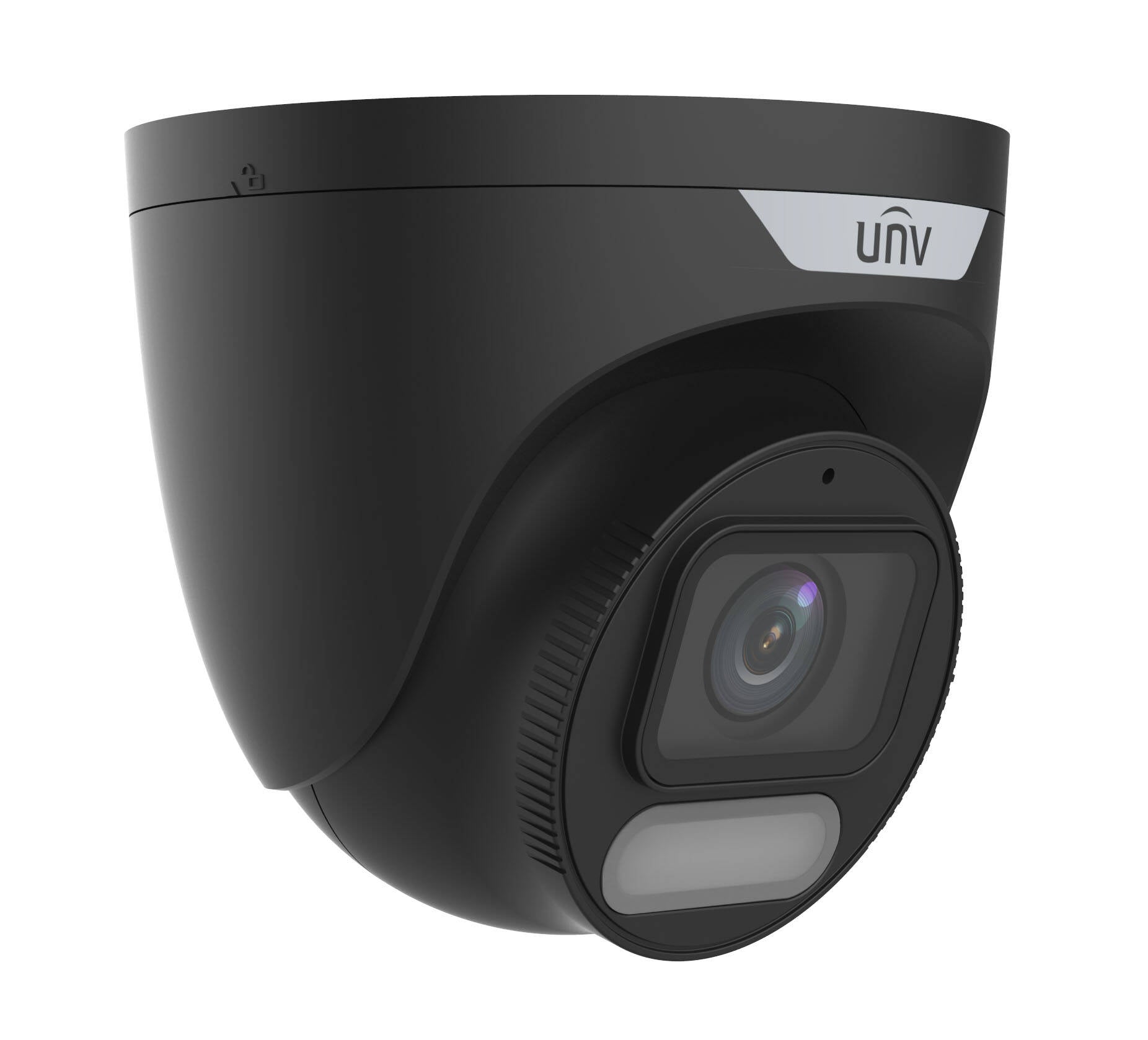

The OwlView 4MP Colorhunter Turret is a PoE-powered, 2.8mm ultra-wide camera with Colorhunter and Wise ISP technology to ensure 24/7, vivid, full-colour images, day or night. 120dB true WDR technology ensures that images are recorded with balanced light, even when the camera is facing harsh daylight, ensuring that subjects are not shadowed or missing details.
Colorhunter technology uses a wide aperture set at F1.0 to collect 4 times as much light as standard F2.0+ CCTV lenses, and state-of-the-art Wise-ISP Nightview tech provides superior clarity to other low-light colour algorithms, diminishing colour distortions, high-noise, blur and LED glare, as well as ameliorating shadowed images/subjects and automatically correcting low-brightness on output; eliminating common issues and frustrations commonly associated with night time or IR recordings.
IP67 weatherproof protection and supplemental white light allow for indoor and outdoor installation with up to 98 feet of additional, full-colour video—even in spaces with no to zero light sources like underground structures or server rooms. With up to 4MP of still-image resolution, and video resolution up to 1520p @ 25fps, the OwlView provides unparalleled quality of image in any environment or condition.
IPC3624SR-ADF28KM-WP-BK Wise-ISP Olwview BLACK Turret Specs and Features
- Still Resolution: 4MP
- Sensor: 1/1.8""CMOS
- Min. Illumination: Colour: 0.0003 lux (F1.0, AGC ON)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
- S/N: >52dB
- WDR: 120dB
- Lens type: 2.8mm fixed
- Iris: F1.0
- FOV (Horizontal, Vertical, Diagonal): 110.4°, 60.5°, 115.2°
- DORI: 43.4m, 17.4m, 8.7m, 4.3m
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- Frame Rate:
- Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
- Video Bit Rate: 128 Kbps~6144Kbps
- Basic Detection: Motion detection; Ultra motion detection; Tampering alarm; Audio detection; Cross line (based on human body detection); Intrusion (based on human body detection)
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
- Audio Compression: G.711U; G.711A
- Audio Bitrate: 64 Kbps
- Protocols: IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
- Client: UNV-Link; UNV-Link Pro; EZStation
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 2.8W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions: ?118x106mm (Ø4.6” x 4.2”)
- Weight: 0.48kg(1.06lb)
- Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
