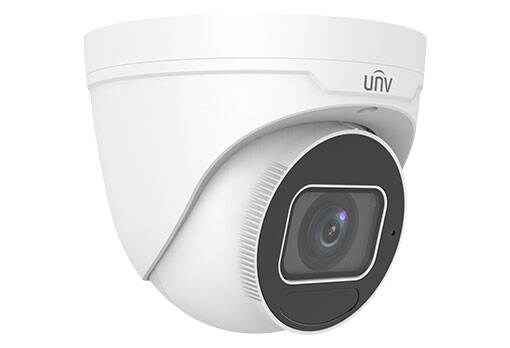

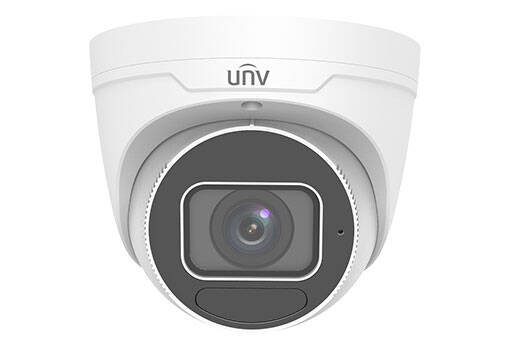

The Uniview 4MP IP Network Eyeball Camera with HD IR and Varifocal Motorized 2.8-12mm Lens is a highly flexible, zoomable network IP camera designed for front-line indoor or outdoor installation. Flexible eyeball design ball-in-socket allows for easy adjustment to suit the install.
Smart features like intrusion detection and line-cross decreases false alarm recordings and ensures high-security areas are surveilled 24/7 even without dedicated operators. The 2.8mm – 12mm zoomable lens can adjust the image to suit site needs—ie. zooming in on security doors at night, zooming out for a wide-angle of the jobsite during the day.
120dB true WDR keeps subjects fully lit, even in challenging lighting conditions like direct sunlight; preventing common recording issues like blowouts, shadowed subjects or muddy daylight recordings. Built-in Smart IR automatically illuminates subjects up to 40m away at night.
PoE-powered, optional DC 12V via Ø 5.5mm coax power option available (not included). IP67 weather protection ensures 24/7 indoor or outdoor installation.
IPC3634SR4-ADZK-H Specs and Features
- Sensor: 1/3"", 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Colour: 0.003 lux (F1.6, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s
- Adjustment angle
- Pan: 0° ~ 360°
- Tilt: 0° ~ 75°
- Rotate: 0° ~ 360°
- WDR: 120dB
- S/N: >52 dB
- Lens: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
- Iris: Fixed
- Field of View:
- (H) 86.3°~35.2°
- (V) 47.1°~17.0°
- (D) 91.9°~38.6°
- IR Range: Up to 40m (131ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 code profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
- Video Bit Rate: 128 Kbps~6 Mbps
- U-code: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Dual streams
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Basic Detection: Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Suppression: Supported
- Sampling Rate: 8KHZ
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
- Protocols: IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP,SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
- User/Host: Up to 32 users. 2 user levels: administrator and common user
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client: EZStation, EZView, EZLive
- Built-in Mic: Yes
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 7.5W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (Ø x H): ?129 x 110mm (Ø5.1” x 4.3”)
- Weight: 0.66kg(1.46lb)
- Material: Metal
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 6KV
- Reset Button: Supported
- EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035), FCC (FCC 47 CFR part15 B)
- Safety: CE LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
