Acerca del producto

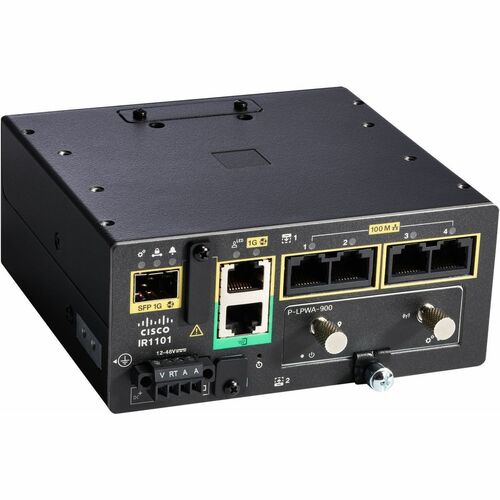

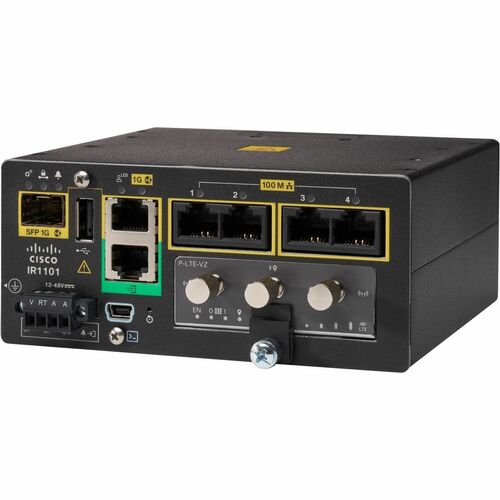

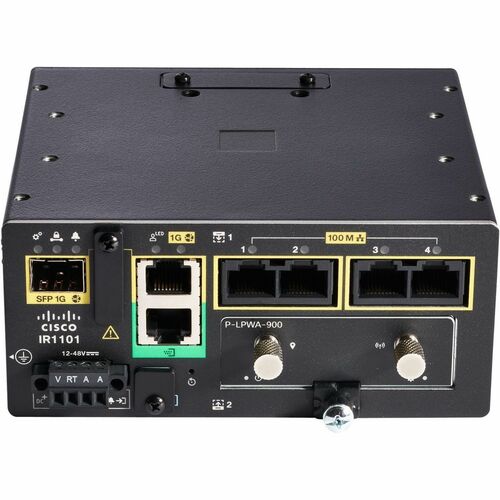

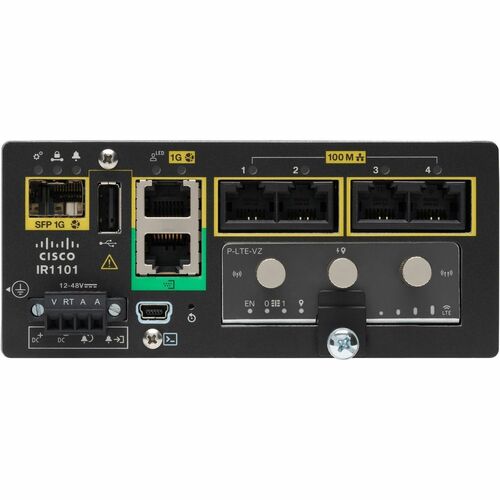

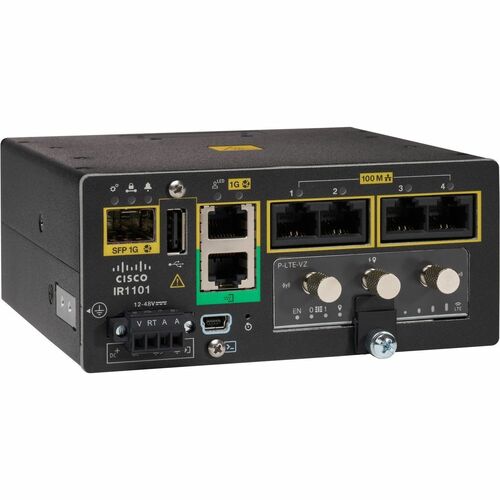

The Cisco®Catalyst IR1101 Rugged Series Router or IR1101, is Cisco's most compact, FirstNet Ready™industrial router. Designed in a highly modular form factor makes it an ideal solution for remote asset management across multiple industrial vertical markets.
The IR1101 has an integrated 9.6 to 60V DC power input and is designed to withstand hostile environments, including shock, vibration, dust, humidity and Electrostatic Discharge (ESD). The IR1101 also supports a wide temperature range: -40 to 60°C standard operation, -40 to 75°C in a forced air enclosure with 200 LFM of air, and type-tested at 85°C for 16 hours. This durability makes it ideal for harsh industrial and distributed IoT deployments such as transportation, oil and gas, distribution substations, industrial automation, and financial institutions.
- Gigabit Ethernet port for ultra-fast network speeds
- With Gigabit Ethernet, retrieve up to 10x faster than standard Ethernet connectivity and provides high-performance
- Features management port for a reliable networking
- With 1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
Especificaciones técnicas
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Memory | |
| Standard Memory | 4 GB |
| Miscellaneous | |
| Certifications & Standards |
|
| Power Description | |
| Power Source | DC |
| Power Consumption | 12 W |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 4 |
| Management Port | Yes |
| Total Number of Ports | 5 |
| Number of WAN Ports | 1 |
| Network & Communication | |
| Network Technology | 100Base-T |
| 1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Networking Standards | IEEE 802.1Q |
| IEEE 802.1D | |
| General Information | |
| Product Type | Router |
| Manufacturer Part Number | IR1101AK9DNA |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | IR1101 Router |
| Product Series | IR1101 |
| Brand Name | Cisco |
| Physical Characteristics | |
| Weight (Approximate) | 2.25 lb (1020.58 g) |
| Form Factor | Desktop |
| DIN Rail | |
| Panel Mount | |
| Wall Mountable | |
| Height | 2.36" (59.94 mm) |
| Width | 5.22" (132.59 mm) |
| Depth | 4.92" (124.97 mm) |
