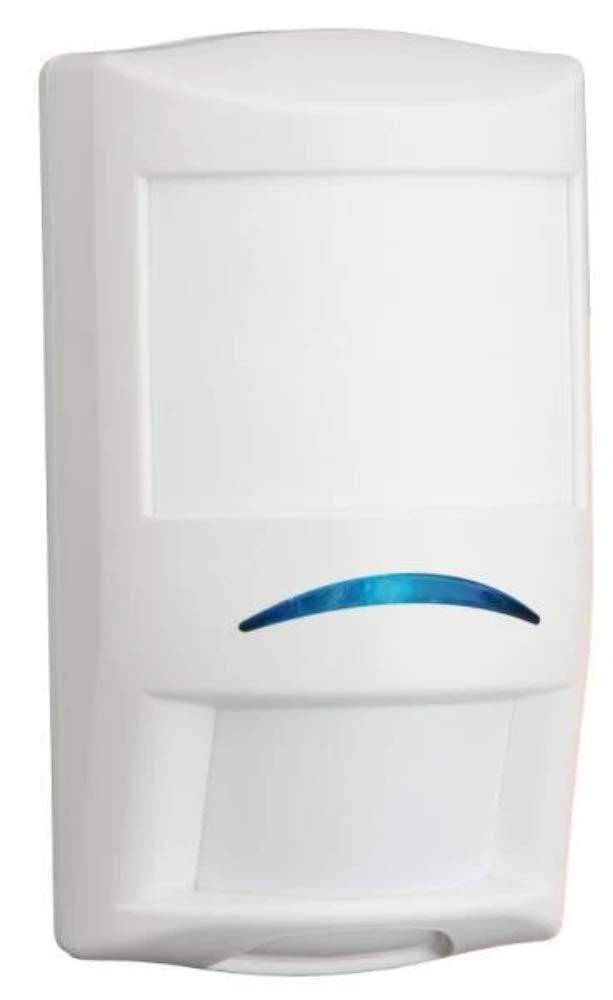

Sensor de movimiento por microondas Bosch Blue Line Gen2 TriTech PIR de 40 pies, blanco (ISC-BDL2-W12G)
Sensor de movimiento por microondas Bosch Blue Line Gen2 TriTech PIR de 40 pies, blanco (ISC-BDL2-W12G)
Sensor de movimiento por microondas Bosch Blue Line Gen2 TriTech PIR de 40 pies, blanco (ISC-BDL2-W12G)
VPN: ISC-BDL2-W12G SKU: AT249033 UPC: 4060039083876
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles
Recently Viewed
Sensor de movimiento por microondas Bosch Blue Line Gen2 TriTech PIR de 40 pies, blanco (ISC-BDL2-W12G)
Resumen de información del producto

Acerca del producto
The Bosch Blue Line Gen 2 TriTech Motion Detector is a combination PIR/microwave and FSP (First Step Processing) motion sensor for ultra-precise motion sensing without the need for manual sensitivity adjustment. First Step Processing instantly responds to human targets and automatically adjusts detector sensitivity to accurately assess other targets—preventing false alarms and eliminating the need for frustrating optimization after installation.
Dual PIR and Microwave sensors provide the ultimate coverage potential; PIR detecting background temperature gradients effectively at low temperatures, and Microwave sensors for consistent detection in spaces where temperature-based detection becomes less effective, like server rooms or greenhouses. Sealed optics and electronics prevent damage from elements and insects, and RFI/impact immunity prevents false alarms from common sources like physical impact or radio frequency ‘popcorn noise’ interference along with improved resistance to RF sabotage.
Indoor/outdoor installation. This model does not offer pet-immunity.
ISC-BDL2-W12G Specs and Features
- Wired dual PIR/microwave motion sensor with FSP target detection and optimization
- 94° coverage (horizontal)
- Vertical or horizontal mounting
- Recommended mounting height: 2.2 – 2.75m (7.5’ – 9’)
- Current (alarm/standby): 10 mA at 12 VDC
- Voltage (operating): 9 VDC to 15 VDC
- Operating conditions: -20°C to +55°C (-4°F to +131°F), 0 to 85% humidity, non-condensing
- Material: High-impact ABS plastic
- Relay Output: Solid state, supervised, Form A normally-closed (NC) contacts rated for ?100 mA, 25 VDC, 2.5 W, <20 ? closed
- Tamper Output: Normally-closed (NC) contacts (with cover on) rated for ?100 mA, 25 VDC, 2.5 W
- Dimensions: 105 mm x 61 mm x 44 mm (4.2'' x 2.4'' x 1.7'')
- Certifications:
- UL: [ISC-BDL2-W12G, ISC-BDL2-WP12G, ISC-BDL2-WP6G], UL 20190115; UL639 – Standard for Intrusion-Detection Units
- ULC: CAN/ULC S306-03 - Canadian Standard for Intrusion Detection Units
- IC: [ISC-BDL2--W12G, ISC-BDL2-WP12G, ISC-BDL2-WP6G]
Especificaciones técnicas
The Bosch Blue Line Gen 2 TriTech Motion Detector is a combination PIR/microwave and FSP (First Step Processing) motion sensor for ultra-precise motion sensing without the need for manual sensitivity adjustment. First Step Processing instantly responds to human targets and automatically adjusts detector sensitivity to accurately assess other targets—preventing false alarms and eliminating the need for frustrating optimization after installation.
Dual PIR and Microwave sensors provide the ultimate coverage potential; PIR detecting background temperature gradients effectively at low temperatures, and Microwave sensors for consistent detection in spaces where temperature-based detection becomes less effective, like server rooms or greenhouses. Sealed optics and electronics prevent damage from elements and insects, and RFI/impact immunity prevents false alarms from common sources like physical impact or radio frequency ‘popcorn noise’ interference along with improved resistance to RF sabotage.
Indoor/outdoor installation. This model does not offer pet-immunity.
ISC-BDL2-W12G Specs and Features
- Wired dual PIR/microwave motion sensor with FSP target detection and optimization
- 94° coverage (horizontal)
- Vertical or horizontal mounting
- Recommended mounting height: 2.2 – 2.75m (7.5’ – 9’)
- Current (alarm/standby): 10 mA at 12 VDC
- Voltage (operating): 9 VDC to 15 VDC
- Operating conditions: -20°C to +55°C (-4°F to +131°F), 0 to 85% humidity, non-condensing
- Material: High-impact ABS plastic
- Relay Output: Solid state, supervised, Form A normally-closed (NC) contacts rated for ?100 mA, 25 VDC, 2.5 W, <20 ? closed
- Tamper Output: Normally-closed (NC) contacts (with cover on) rated for ?100 mA, 25 VDC, 2.5 W
- Dimensions: 105 mm x 61 mm x 44 mm (4.2'' x 2.4'' x 1.7'')
- Certifications:
- UL: [ISC-BDL2-W12G, ISC-BDL2-WP12G, ISC-BDL2-WP6G], UL 20190115; UL639 – Standard for Intrusion-Detection Units
- ULC: CAN/ULC S306-03 - Canadian Standard for Intrusion Detection Units
- IC: [ISC-BDL2--W12G, ISC-BDL2-WP12G, ISC-BDL2-WP6G]
