Acerca del producto

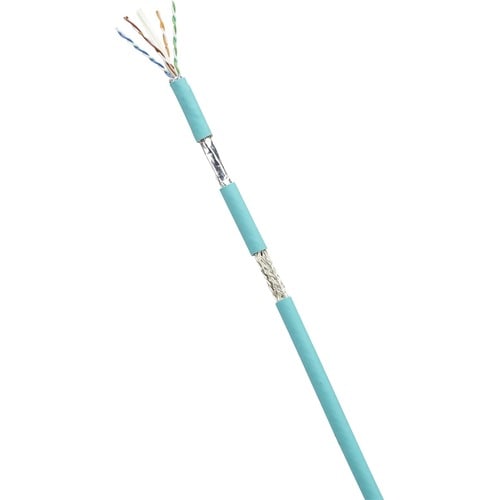

The Cat 6A SF/UTP copper cable is constructed of 26/7 AWG stranded copper conductors with a High Density Polyethylene (HDPE) insulation. The twisted pair copper conductors are wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal jacketing.
- Features Stranded
- Allows you to access all of the networked data, swiftly and securely
- Features Category 6a cable type
Especificaciones técnicas
| Miscellaneous | |
| Compatibility | Panduit Patch Panels:
Panduit CADIN1IG-S Rack Equipment |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | ISFCH6X04BTL-UG |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1000 |
| Manufacturer | PANDUIT CORP |
| Product Name | Industrial Copper Cable, Cat 6A, SF/UTP, 26 AWG, TL |
| Brand Name | IndustrialNet |
| Physical Characteristics | |
| Material Details |
|
| Insulation Material | High-density Polyethylene (HDPE) |
| Shielding Material | Foil |
| Product Color | Teal |
| Color Family | Green |
| Product Material | Thermoplastic Elastomer (TPE) |
| Copper | |
| Technical Information | |
| Cable Length | 1000.7 ft |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Control Panel |
| Rack Equipment | |
| Patch Panel | |
| Network Device | |
| Jacket Type | CMX |
| CM | |
| Shielding | Yes |
| Features | PoE |
| Oil Resistant | |
| Flame Retardant | |
| UV Resistant | |
| Bendable | |
| Abrasion Resistant | |
| PoE+ | |
| Stranded | |
| Sunlight Resistant | |
| Chemical Resistant | |
| Weld Splatter Protection | |
| Cable Type | Category 6a |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| American Wire Gauge | 26/7 AWG |
| Connector on First End Details | Bare Wire |
| Connector on Second End Details | Bare Wire |
