Acerca del producto

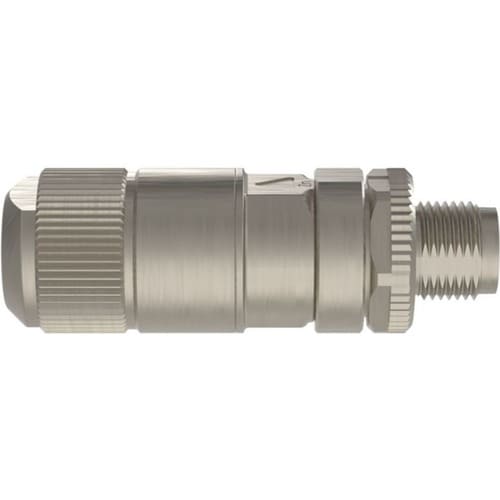

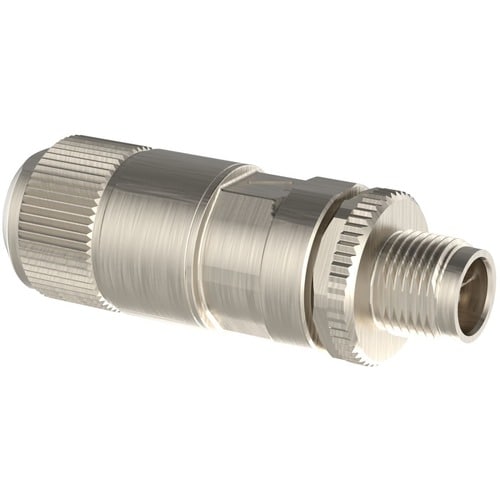

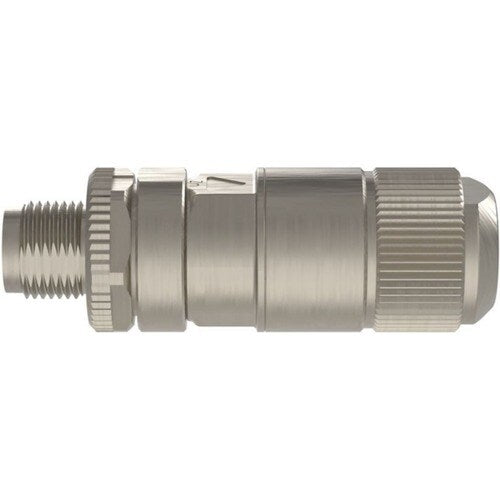

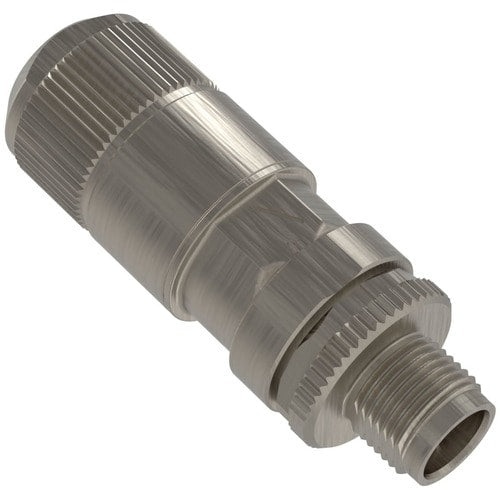

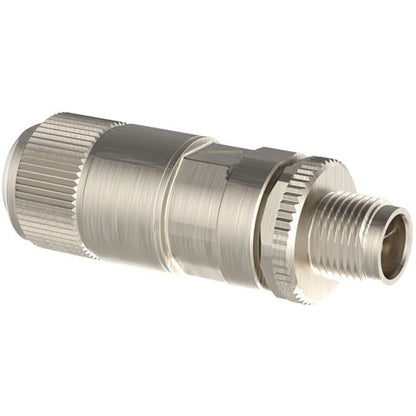

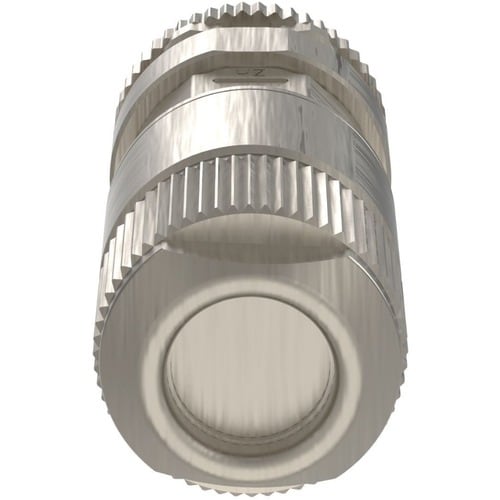

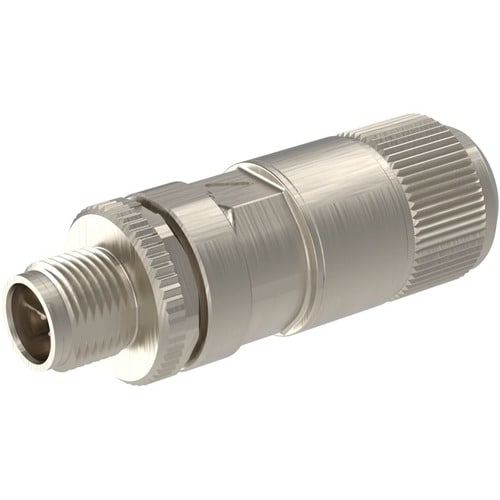

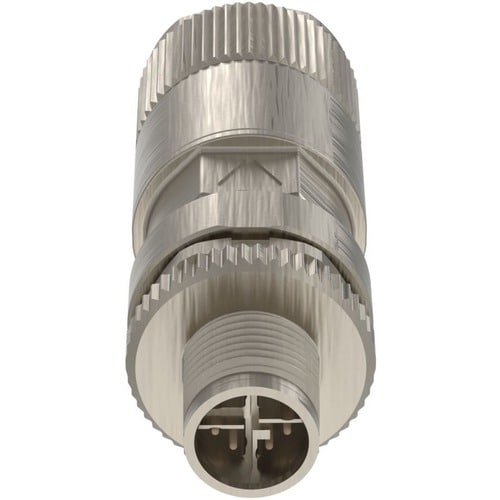

The M12 X-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 6A, UTP or shielded copper cable. This plug is constructed of a zinc cast housing with a 360° shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable.
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Network Connector |
| Manufacturer Part Number | ISPS6A88MFA |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | IndustrialNet M12 X-Code Field Terminable Plug |
| Product Line | IndustrialNet |
| Brand Name | Panduit |
| Physical Characteristics | |
| Height | 0.78" (19.81 mm) |
| Width | 0.59" (14.99 mm) |
| Depth | 2.32" (58.93 mm) |
| Contact Material | Brass |
| Product Color | Metallic |
| Color Family | Other |
| Product Material | Die-cast Zinc |
| Nickel Chrome Plated | |
| Plastic | |
| Technical Information | |
| Connector Details | 1 x M12-X Network Male |
| Shielding | Yes |
| Connector Type | M12-X Network - Male |
| Features | EMI/RF Protection |
| Dust Protection | |
| Chemical Resistant | |
| PoE | |
| Water Resistant | |
| Vibration Resistant | |
| Temperature Resistant | |
| Contact Plating | Gold |
| Ingress Protection (IP) Rating | IP67 |
| IP65 |
