Acerca del producto

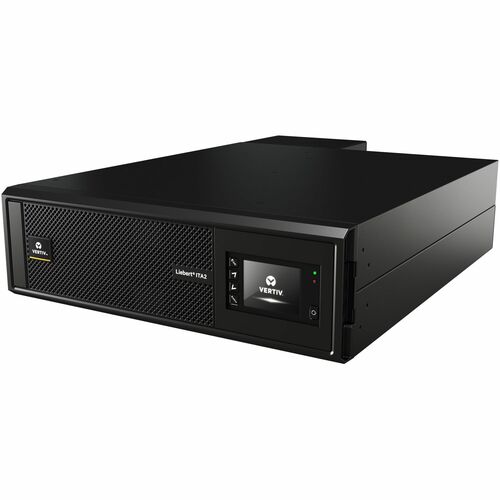

The Vertiv Liebert ITA2 is a compact, rack-tower convertible uninterruptible power system (UPS) that employs true on-line, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. The Liebert ITA2 UPS offers economical, efficient, and reliable three-phase power for critical loads up to 8kVA. This intelligent UPS has scalable battery runtimes, output distribution options, a high-power factor (0.9) and an optimized maintenance bypass cabinet option for enhanced availability and flexibility. It is easy to install and operate. It provides intuitive control panel, network connectivity communications card and optional software monitoring for visibility, control, and peace of mind for manned or unmanned locations. It has Energy Star 2.0 certification. It comes with a 2-year warranty.
- Reliable 3-phase power protection for critical systems
- Online Double Conversion UPS Technology
- High operating efficiency (>93% in double conversion mode, 99% in eco mode)
- Advanced battery monitoring
- 0.9 Output Power Factor rating, Energy Star 2.0 certification
Especificaciones técnicas
| Management | |
| Network Management | SNMP/Modbus/TCP/BacNet IP |
| Warranty | |
| Additional Warranty Information | 1 & 3 Additonal years optional |
| Environmental Conditions | |
| Thermal Dissipation | 1819 BTU/h |
| Maximum Operating Temperature | 122°F (50°C) |
| Sound Emission (A-Weighted) | 58 dB(A) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 33 Minute |
| Backup/Run Time (Full Load) | 13 Minute |
| Battery Characteristics | Hot-swappable/Valve-regulated |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 5.60 Hour |
| Technical Information | |
| Application/Usage | IT Infrastructure |
| Overload Protection | Yes |
| Plug/Connector Type | Hardwired |
| Phase | Three Phase |
| Receptacle Type | Hardwired |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 0 ns |
| Interfaces/Ports | |
| Modular Slots | Intellislot |
| USB | Yes |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| Parallel Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | ITA2-08KRT208C |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 Pack |
| Manufacturer | Vertiv |
| Product Model | Liebert ITA2 |
| Product Name | ITA2-08KRT208C UPS |
| Product Series | ITA2 |
| Brand Name | Vertiv Liebert |
| Physical Characteristics | |
| Weight (Approximate) | 50.70 lb (22997.13 g) |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Height | 5.10" (129.54 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 19.70" (500.38 mm) |
| Product Color | Black |
| Gray | |
| Color Family | Dual Color |
| Miscellaneous | |
| Additional Information |
|
| Package Contents | |
| Certifications & Standards | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR 2.0 |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) 2 | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Power Description | |
| Input Voltage | 220 V AC |
| 208 V AC | |
| 127 V AC | |
| 120 V AC | |
| Output Voltage | 220 V AC |
| 208 V AC | |
| 127 V AC | |
| 120 V AC | |
| Input Current | 24 A |
| Surge Energy Rating | 80 J |
| Waveform Type | Pure Sine Wave |
| Output Current | 22 A |
| Input Voltage Range | 166 V AC - 249 V AC |
| Input Frequency | 50 Hz |
| Load Capacity (VA) | 8 kVA |
| Load Capacity (Watt) | 7.20 kW |
