Acerca del producto
La serie de switches Aruba Instant On 1830 ofrece una solución cableada fácil de usar y asequible para redes que admiten aplicaciones de TI, móviles y en la nube. Esta serie de switches de gestión inteligente, asequible y fácil de implementar, es ideal para pequeñas empresas que buscan una infraestructura cableada rentable para adaptarse a las cambiantes demandas de la red. Estos switches de gama básica con gestión inteligente ofrecen capacidades de conmutación de Capa 2, conectividad Gigabit y modos de gestión flexibles, todo a un precio asequible. Con un panel de control de gestión flexible, opciones de alimentación a través de Ethernet (PoE) y funciones de eficiencia energética, estos switches ofrecen una red empresarial sólida para pymes con presupuestos limitados.
Especificaciones técnicas
| Primary Information | |

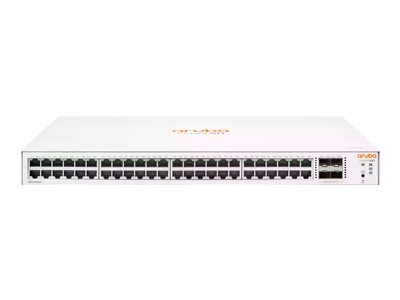

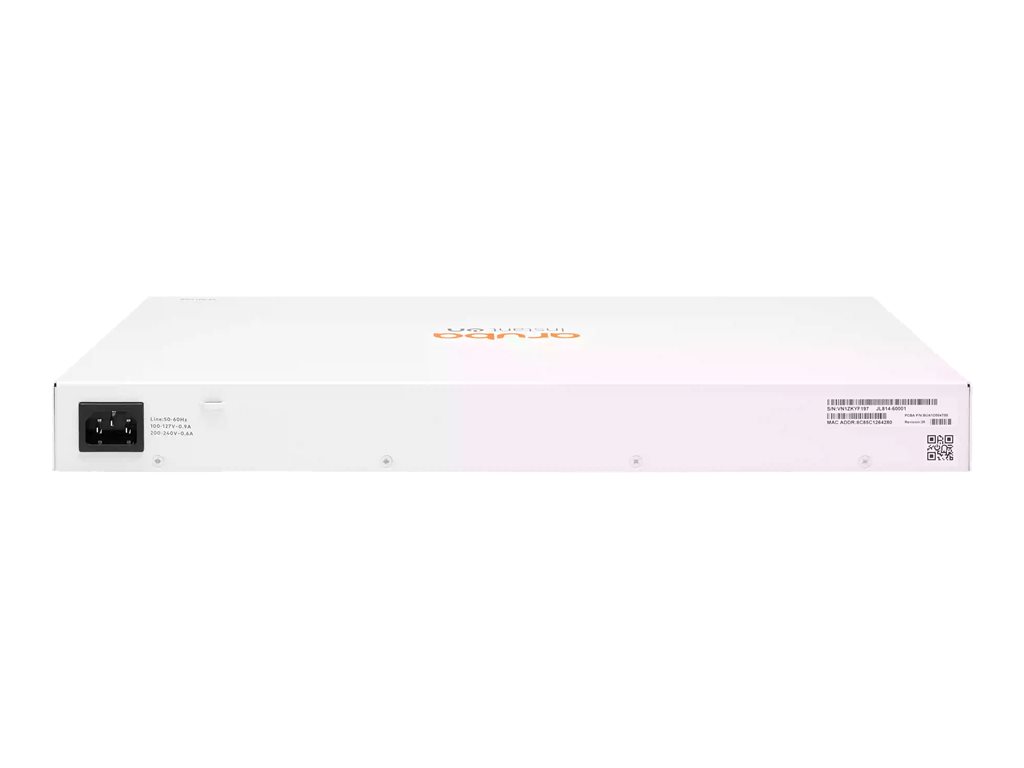

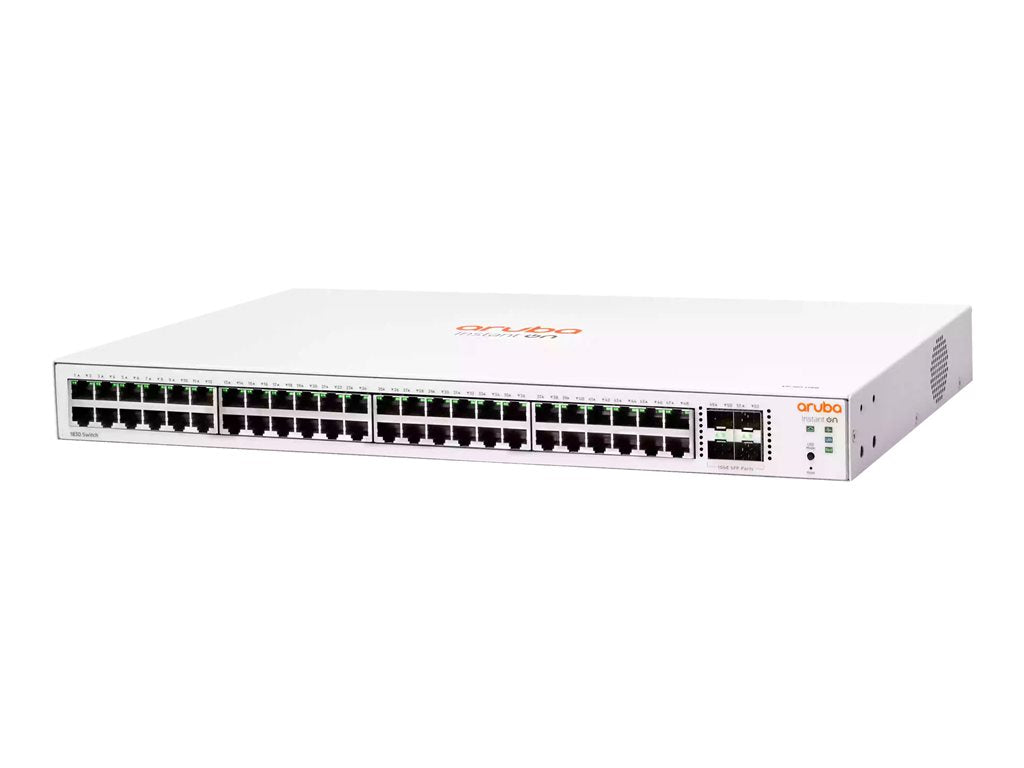

| Product Description: | HPE Networking Instant On 1830 48G 4SFP Switch - switch - 48 ports - smart - rack-mountable |
| Device Type: | Switch - 48 ports - smart |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance: | Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 77.37 Mpps ¦ Switching capacity: 104 Gbps |
| MAC Address Table Size: | 16000 entries |
| Jumbo Frame Support: | 9216 bytes |
| Routing Protocol: | IGMPv2, IGMP |
| Remote Management Protocol: | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Features: | Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, STP support, event log, QoS, TPM, Cable Diagnostics Function, LLDP support, DHCP client, CoS, cloud managed, 1.5MB packet buffer, SCP, Link Aggregation, dual image support, DoS protection, EEE, BPDU Filter, loop protection, Global Storm Control, Port Scheduling |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Power: | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH): | 17.4 in x 10 in x 1.7 in |
| Weight: | 7.8 lbs |
| Localization: | English / United States |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Device Type: | Switch - 48 ports - smart |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance: | Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 77.37 Mpps ¦ Switching capacity: 104 Gbps |
| MAC Address Table Size: | 16000 entries |
| Jumbo Frame Support: | 9216 bytes |
| Routing Protocol: | IGMPv2, IGMP |
| Remote Management Protocol: | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Encryption Algorithm: | SSL |
| Features: | Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, STP support, event log, QoS, TPM, Cable Diagnostics Function, LLDP support, DHCP client, CoS, cloud managed, 1.5MB packet buffer, SCP, Link Aggregation, dual image support, DoS protection, EEE, BPDU Filter, loop protection, Global Storm Control, Port Scheduling |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Processor: | 1 x ARM: 800 MHz |
| RAM: | 512 MB SDRAM |
| Flash Memory: | 256 MB |
| Status Indicators: | Port status, port duplex mode, link/activity, speed |
| Expansion / Connectivity | |
| Interfaces: | 48 x 1000Base-T RJ-45 ¦ 4 x Gigabit LAN SFP |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational: | 40.2 Watt |
| Miscellaneous | |
| MTBF: | 144.4 years |
| Compliant Standards: | IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032:2015, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 60825-1:2014 Class 1, CISPR 32 Class A, EN 55035, CISPR 35, IEC 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018 |
| Localization: | English / United States |
| Dimensions & Weight | |
| Width: | 17.4 in |
| Depth: | 10 in |
| Height: | 1.7 in |
| Weight: | 7.8 lbs |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase |
