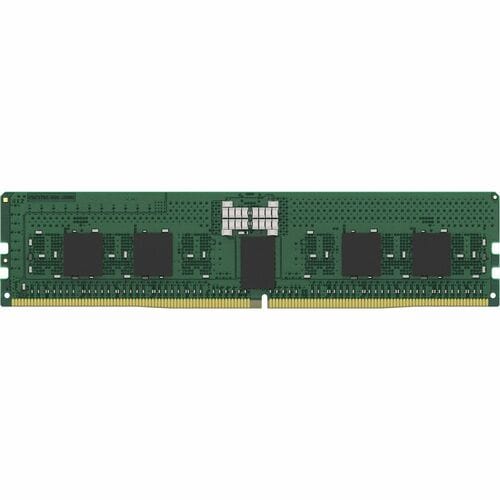

Kingston's KSM56R46BS8PMI-16MDI is a 2G x 80-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
- DIMM 16 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- 5600 MHz of memory speed skillfully manages the variety of apps and computational tasks
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
Especificaciones técnicas
| Physical Characteristics | |
| Number of Pins | 288-pin |
| Thickness | 0.15" (3.85 mm) |
| Form Factor | DIMM |
| Length | 5.25" (133.35 mm) |
| Width | 1.23" (31.25 mm) |
| General Information | |
| Product Type | RAM Module |
| Manufacturer Part Number | KSM56R46BS8PMI-16MDI |
| Manufacturer Website Address | http://www.kingston.com |
| Manufacturer | Kingston Technology Company |
| Product Name | 16GB DDR5 5600MT/s ECC Registered DIMM |
| Brand Name | Kingston |
| Miscellaneous | |
| Compatibility |
https://www.kingston.com/en/memory/search/systemdevices?partid=KSM56R46BS8PMI-16MDI |
| Environmentally Friendly | Yes |
| Environmental Certification | Hazard Assessment of Perfluorooctane Sulfonate (PFOS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Technical Information | |
| CAS Latency | CL46 |
| Device Supported | Server |
| Motherboard | |
| Error Checking | ECC |
| Signal Processing | Registered |
| Memory Speed | 5600 MHz |
| Memory Size | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Memory Voltage | 1.10 V |
| Memory Rank | Single-rank |
