Acerca del producto

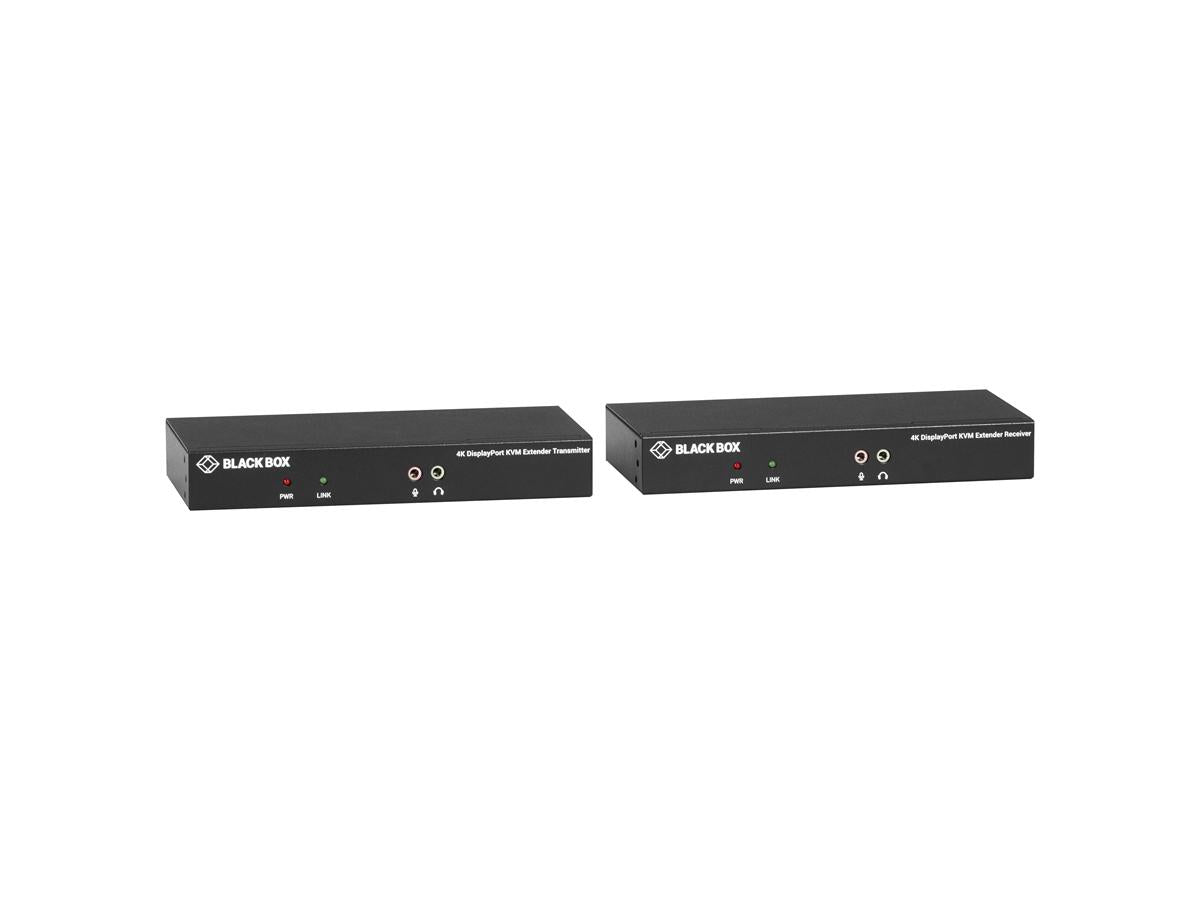

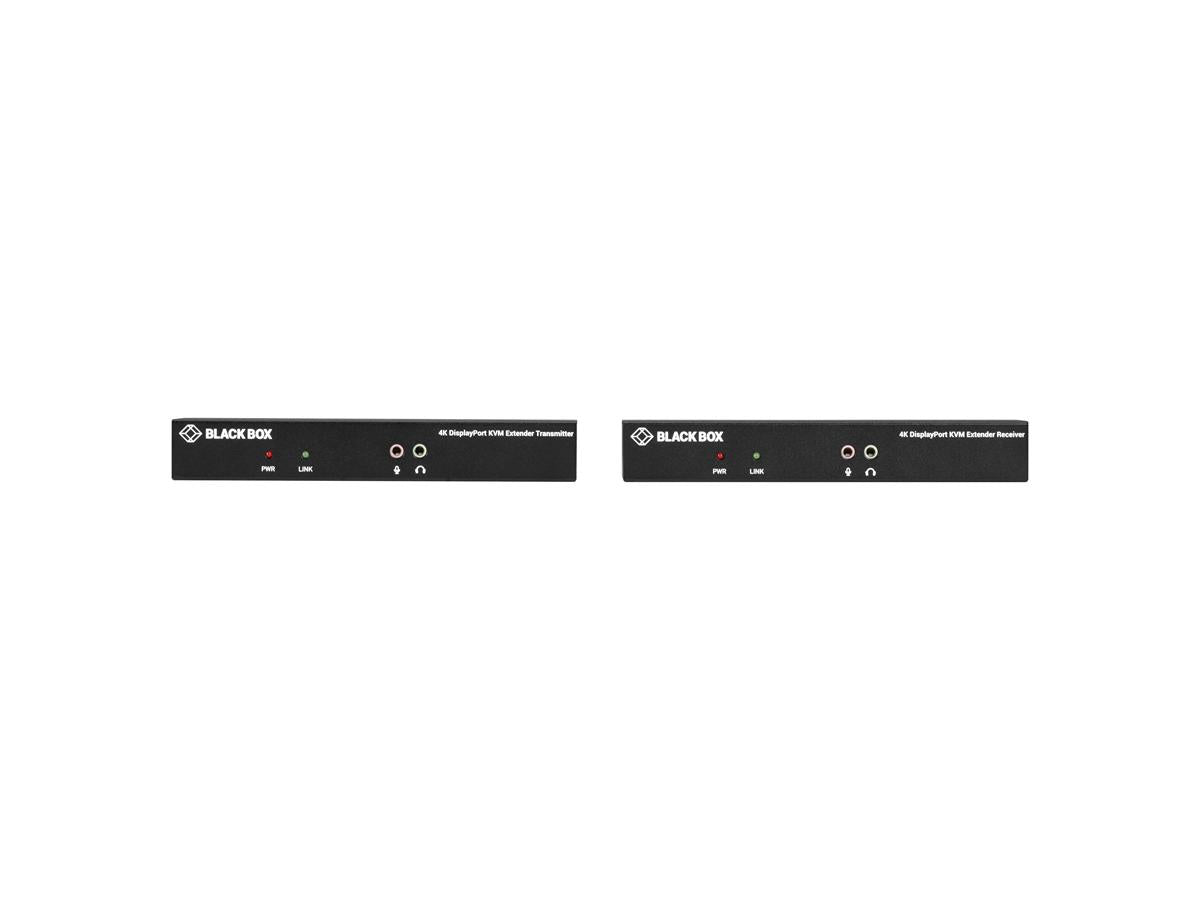

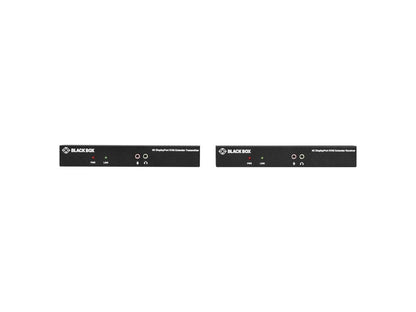

Extienda señales KVM hasta 100 m mediante cable CATx.
Especificaciones técnicas
| Primary Information | |
| Device Type: | KVM Extender |
| Networking Type: | Ethernet |
| Connectivity Technology: | Wired |

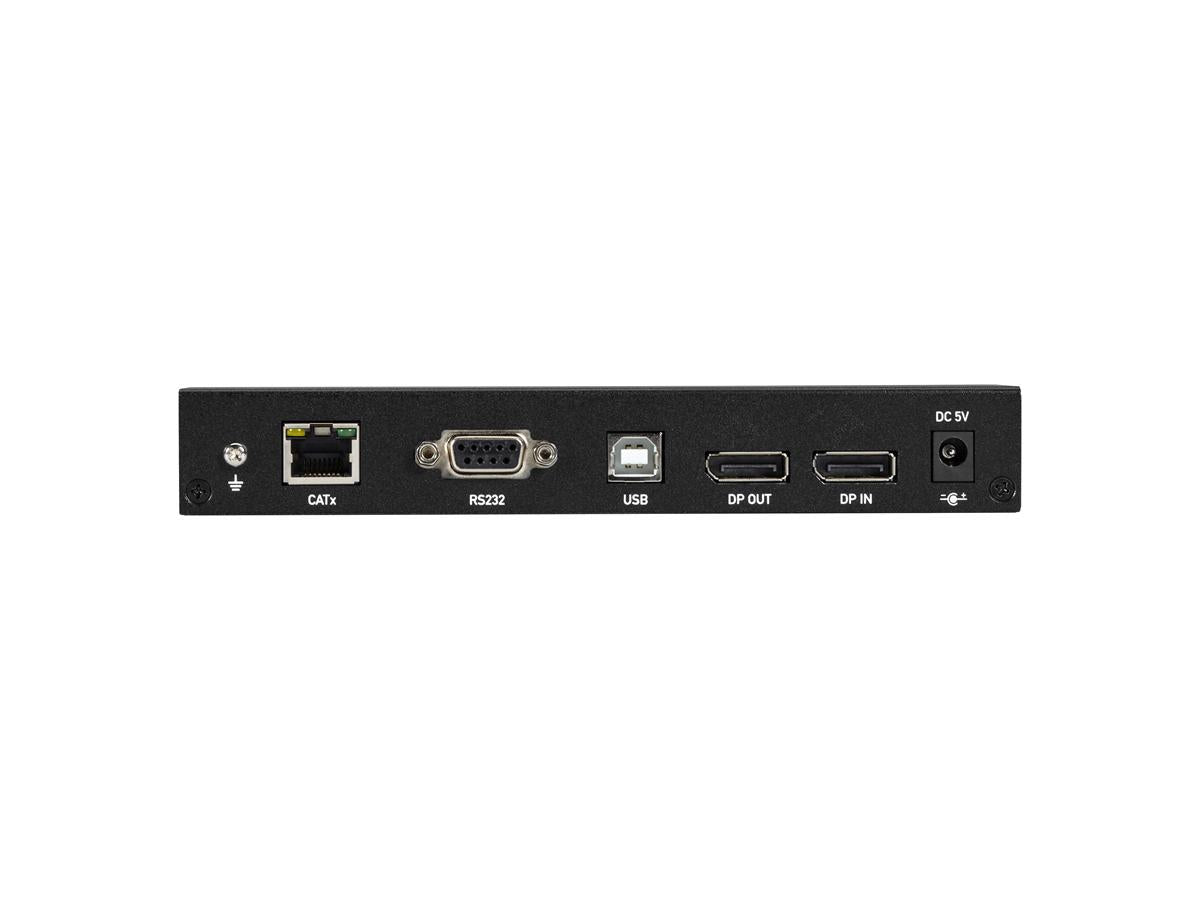

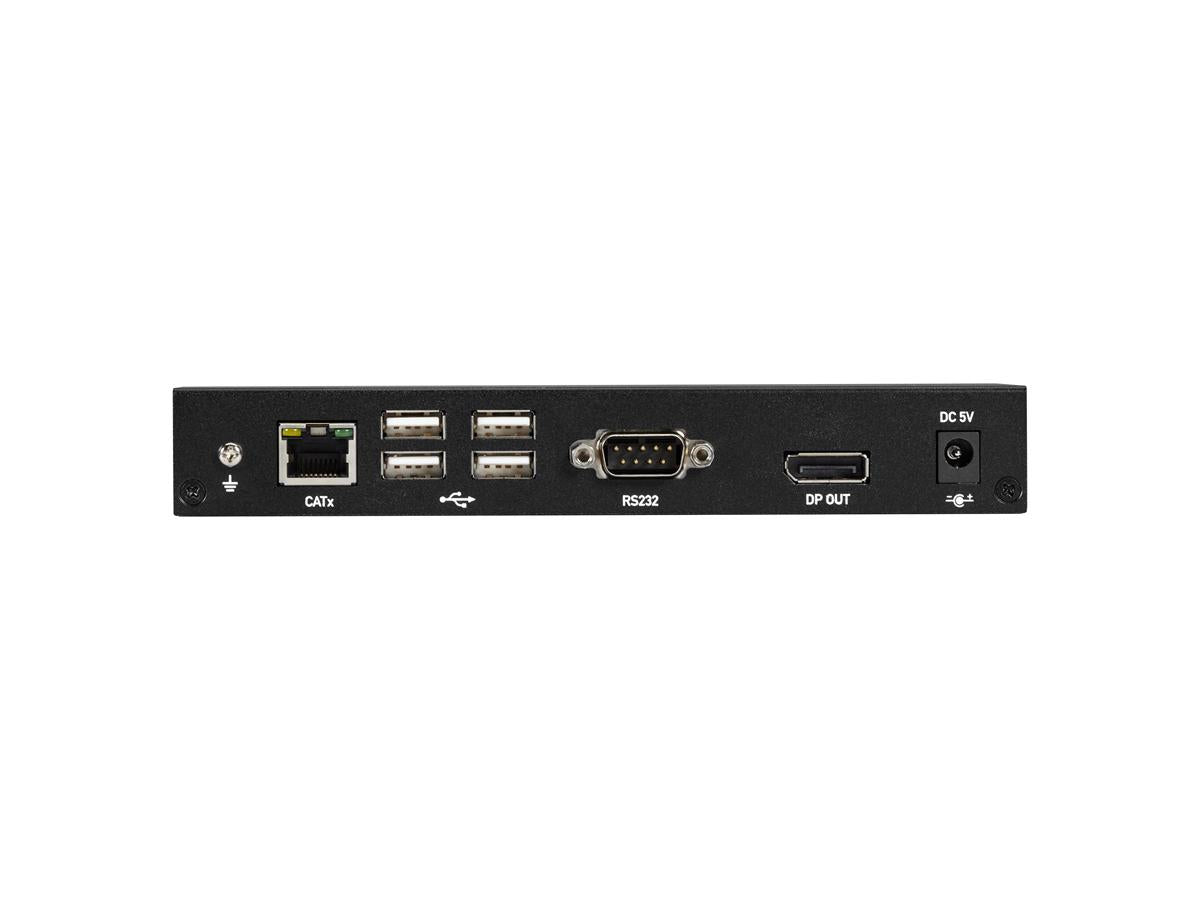

| Interfaces: | TRANSMITTERHost Connection:Video Input: (1) DisplayPort (Female);Serial Control Port: (1) DB9 (Female);Link Port: (1) RJ45 (Female);USB: (1) USB Type-B (Female);Audio: (1) Line in; (1) Line out;Local Video Output: (1) DisplayPort (Female)RECEIVERConsole Connection: ;Video Output: (1) DisplayPort (Female);Serial Control Port: (1) DB9 male;Link Port: (1) RJ45 (Female);USB: (4) USB Type-A (Female);Audio: (1) Mic In; (1) Speaker Out |
| Connections: | RJ-45 |
| Max Resolution (external): | 3840x2160 |
| Data Link Protocol: | Gigabit Ethernet |
| Width: | 3.27 Inch |
| Depth: | 7.09 Inch |
| Height: | 0.83 Inch |
| Service & Support Type: | 2 Year Double Diamond Warranty (Standard) |
| Model: | KVXLCDP-100 |
| What's Included: | (1) Transmitter(1) Receiver(2) 5V, 2A Power Supplies (includes US, EU, AU & UK Plug types)(1) or (2) DisplayPort Cables 1.2m (4 ft.)(1) USB Type A To B Cable, Male/Male 1.8m (6 ft.)(1) 3.5-mm Dual Audio/Mic Cable, Male/Male 1.8m (6 ft.)(2) Deskmounting Brackets (with Screws) |
| Features: | DisplayPort 4K transmission up to 100m over standard CATx cableLocal and remote units connect at distances of up to 330 feet (100m) using two CAT5e cablesSupports DisplayPort UHD video resolution up to 3840x2160 at 30HzTransparent USB 2.0 extension supports HID devices, mass storage devicesSupports RS-232 peripheral (serial) devicesBi-directional audio via speaker/mic connectionLocal video port loopback for monitoring on transmitter (TX) unit |
| Special Feature | |
| COO: | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code: | 43211604 |
