Acerca del producto

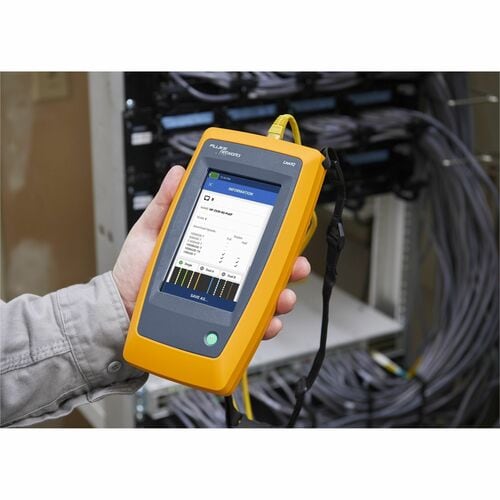

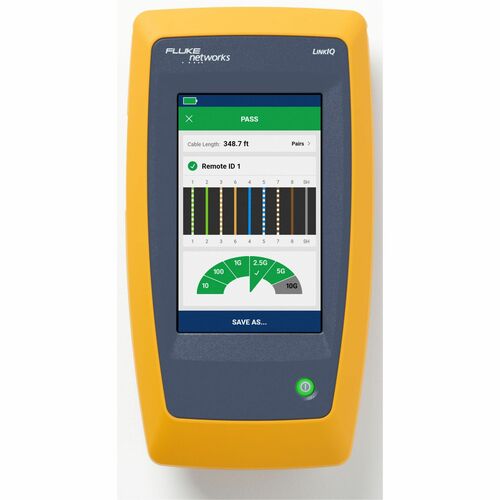

The LinkIQ Industrial Ethernet Cable+Network Tester measures lengths up to 1000 feet (305 m) and provides the distance to faults such as opens, shorts, and unterminated cable.

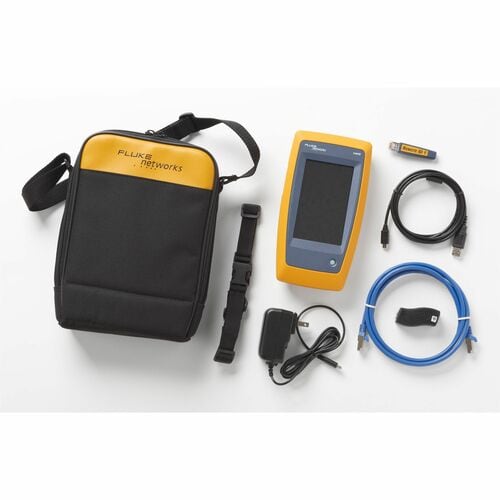

The included MS-IE Remote Adapter identifies miswires and split pairs on RJ45, M12X, M12D, and M8D terminated cables.
LinkIQ qualifies cabling performance from 10 Mb/s to 10 Gb/s for EtherNet/IP, PROFINET, EtherCAT, and other Industrial Ethernet protocols. It performs ping tests to verify connectivity, and also provides nearest switch diagnostics, including advertised data rate, switch name and port number, VLAN information, plus PoE and load testing up to Class 8 (90W). Ethernet Alliance PoE Certified for reliable multivendor interoperability.
LinkIQ supports multiple languages, and its keyboard includes extended alpha characters and symbols.
The included MS-IE Remote Adapter identifies miswires and split pairs on RJ45, M12X, M12D, and M8D terminated cables.
LinkIQ qualifies cabling performance from 10 Mb/s to 10 Gb/s for EtherNet/IP, PROFINET, EtherCAT, and other Industrial Ethernet protocols. It performs ping tests to verify connectivity, and also provides nearest switch diagnostics, including advertised data rate, switch name and port number, VLAN information, plus PoE and load testing up to Class 8 (90W). Ethernet Alliance PoE Certified for reliable multivendor interoperability.
LinkIQ supports multiple languages, and its keyboard includes extended alpha characters and symbols.
- Validates EtherNet/IP, PROFINET, EtherCAT cable to 10 Gb/s
- Speeds troubleshooting with IP ping
- Includes adapters for RJ45, M12X, M12D, and M8D cables
- Performs cable diagnostics, including length
Especificaciones técnicas
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Network & Communication | |
| Network Standard | 10GBase-T |
| Ethernet Technology | 10 Gigabit Ethernet |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Miscellaneous | |
| Application/Usage | Network |
| Package Contents |
|
| Country of Origin | United States |
| Physical Characteristics | |
| Weight (Approximate) | 1.38 lb (624 g) |
| Height | 8.50" (215.90 mm) |
| Width | 4.50" (114.30 mm) |
| Battery Information | |
| Battery Life | 8 Hour |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size Supported | 3.6V |
| Battery Rechargeable | Yes |
| General Information | |
| Product Type | Cable/Network Tester |
| Manufacturer Part Number | LIQ100IE |
| Manufacturer Website Address | http://www.flukenetworks.com |
| Manufacturer | Fluke Networks |
| Product Model | LIQ-100-IE |
| Product Name | LinkIQ Industrial Ethernet Cable+Network Tester |
| Product Line | LinkIQ |
| Brand Name | Fluke Networks |
| Technical Information | |
| Device Function | IP Testing |
| Crossed Pair Testing | |
| Cable Testing | |
| Cable Fault Testing | |
| Mismatched Wiring Testing | |
| Network Testing | |
| Open Circuit Testing | |
| PoE Testing | |
| Short Circuit Testing | |
| Split Pair Testing | |
| Tone Detection | |
| Twisted Pair Cable Testing | |
| Wiremap | |
| Maximum Length Measurement | 1000.7 ft |
