Acerca del producto

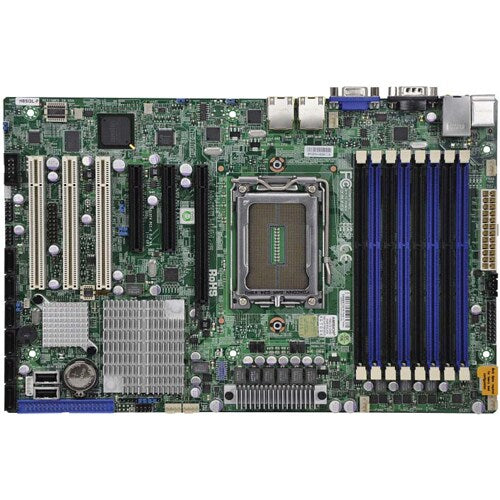

The H8SGL(-F) serverboard is based on the AMD SR5650/SP5100 chipset and supports one AMD Socket G34 type processor with up to 128 GB of DDR3- 1333/1066/800 registered ECC SDRAM or 32 GB of DDR3-1333/1066/800 MHz unbuffered ECC/non-ECC SDRAM. The H8SGL serverboard does not have IPMI capability, whereas the H8SGL-F serverboard does.
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- DDR3 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- With 2 USB 2.0 ports, connect devices for a quick data movement
- Supported 0 RAID levels provide data reliability and fault tolerance
- Compatible Opteron Octa-core processor lets you perform all your computational tasks at a swift pace
Especificaciones técnicas
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 4 |
| Onboard LEDs Header | Yes |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 8" (203.20 mm) |
| Video | |
| Graphics Controller Model | G200 |
| Graphics Controller Memory | 16 MB |
| Onboard Video | On-board Video Chipset |
| I/O Controller | |
| RAID Levels | 1+0 |
| 0 | |
| 1 | |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of PCI Slots | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 2 |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 2 |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-H8SGL-F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | H8SGL-F |
| Product Name | H8SGL-F Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Processor & Chipset | |
| Processor Supported | Opteron Dodeca-core |
| Opteron Octa-core | |
| Total Processor Supported | 1 |
| Processor Socket | Socket G34 LGA-1944 |
| Processor Technology | HyperTransport Technology |
| 64-bit Processing | Yes |
| Chipset Manufacturer | AMD |
| Chipset Model | SR5650 |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1333/PC3-10600 |
| DDR3-800/PC3-6400 | |
| DDR3-1066/PC3-8500 | |
| Number of Memory Slots | 8 |
| Memory Speed Supported | 1066 MHz |
| 800 MHz | |
| 1333 MHz |
