Acerca del producto

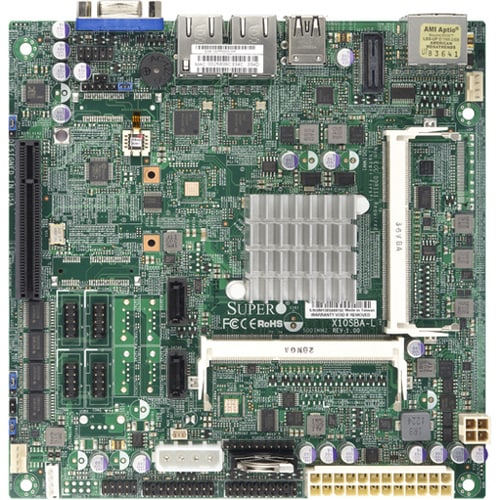

J1900 Series BOARDS (System-on-Chip)
Supermicro's motherboards based on Intel® Celeron™ processor J1000 series System-on-Chip (formerly Bay Trail - D) are well-suited for server, storage, networking, and embedded appliance market.
Supermicro's motherboards based on Intel® Celeron™ processor J1000 series System-on-Chip (formerly Bay Trail - D) are well-suited for server, storage, networking, and embedded appliance market.
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DDR3 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
Especificaciones técnicas
| Audio | |
| Sound Controller Model | ALC888S-VD2 |
| I/O Controller | |
| Controller Type | Serial ATA/300 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Processor & Chipset | |
| Processor Socket | Socket BGA-1170 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Miscellaneous | |
| Compatibility | Supermicro SuperChassis 1U Chassis:
|
| Certifications & Standards | ACPI 5.0 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
| I/O Expansions | |
| Number of PCI Express x8 Slots | 1 |
| PCI Express Standard | PCI Express 2.0 |
| Total Number of PCI Express Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Integrated Processor | |
| Integrated Processor Type | Celeron |
| Integrated Processor Model | J1900 |
| Integrated Processor Speed | 2.42 GHz |
| Integrated Processor Cache | 2 MB |
| Integrated Processor Core | Dual-core (2 Core) |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Total Number of Onboard USB Ports | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Onboard LEDs Header | Yes |
| Onboard Serial Header | Yes |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X10SBA-L-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X10SBA-L |
| Product Name | X10SBA-L Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1333/PC3-10600 |
| DDR3-1066/PC3-8500 | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| DIMM | |
| Memory Speed Supported | 1066 MHz |
| 1333 MHz |
