Acerca del producto
Xeon® E5 Family Boards / Socket R3 (LGA 2011)
The new Supermicro's X10 UP Serverboards offer the latest Xeon E5-2600/1600 v4/v3 technology solutions with the highest levels of performance in different form factors to meet various application needs. X10SRL-F, with 7x PCIe (up to 5x PCIe 3.0 x8) slots onboard, is the best choice to maximize your I/O intensive application demand. On the other hand, X10SRi-F offers the latest virtualization support at low cost. For customers who need multiple I/O solutions in a 1U chassis, X10SRW-F (up to 3x AOC) and X10SRG-F (up to 5x AOC) provide the ultimate solutions. Supermicro's first UP Storage serverboard, X10SRH-CF/-CLN4F, brings the latest SAS3 (12Gb/s data rate) technology to the market with the best performance per dollar value.
The new Supermicro's X10 UP Serverboards offer the latest Xeon E5-2600/1600 v4/v3 technology solutions with the highest levels of performance in different form factors to meet various application needs. X10SRL-F, with 7x PCIe (up to 5x PCIe 3.0 x8) slots onboard, is the best choice to maximize your I/O intensive application demand. On the other hand, X10SRi-F offers the latest virtualization support at low cost. For customers who need multiple I/O solutions in a 1U chassis, X10SRW-F (up to 3x AOC) and X10SRG-F (up to 5x AOC) provide the ultimate solutions. Supermicro's first UP Storage serverboard, X10SRH-CF/-CLN4F, brings the latest SAS3 (12Gb/s data rate) technology to the market with the best performance per dollar value.
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX server motherboard
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- RAID supported levels provide data reliability and fault tolerance
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
Especificaciones técnicas
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Miscellaneous | |
| Compatibility | Supermicro SuperChassis(s) 1U Chassis:
|
| Environmentally Friendly | Yes |
| Video | |
| Graphics Controller Model | AST2400 |
| Onboard Video | On-board Video Chipset |

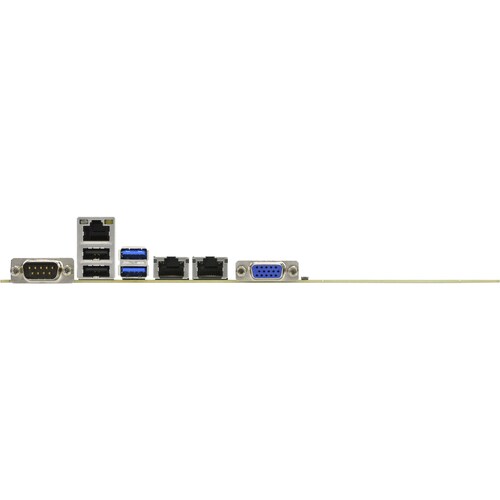

| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 10 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 3.0 Ports | 3 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| I/O Expansions | |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |
| I/O Controller | |
| RAID Levels | 10 |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Processor & Chipset | |
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA 2011-v3 |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| General Information | |

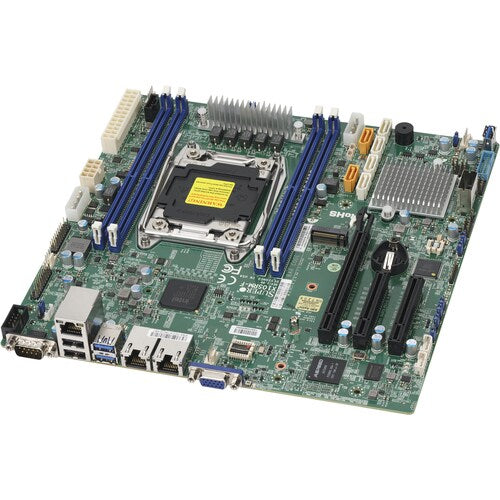

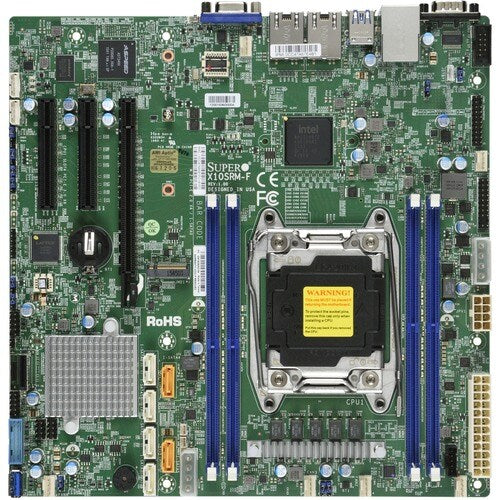

| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X10SRM-F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X10SRM-F |
| Product Name | X10SRM-F Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | LRDIMM |
| RDIMM | |
| DIMM | |
| Memory Speed Supported | 2400 MHz |
| 1866 MHz | |
| 1600 MHz | |
| 2133 MHz |
