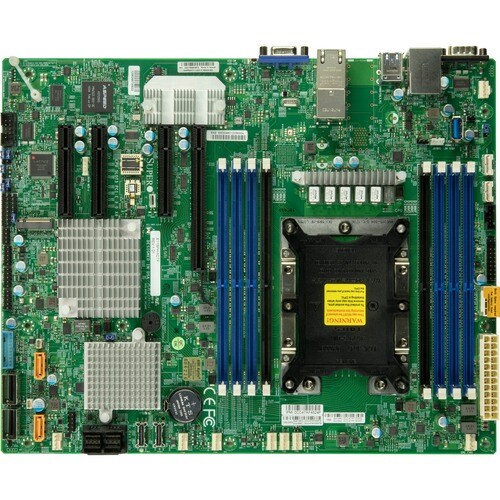

UP Xeon® Motherboards - Socket P (LGA 3647)
BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)
Supermicro's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX server motherboard
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- RAID supported levels provide data reliability and fault tolerance
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
Especificaciones técnicas
| Audio | |
| Audio Channels | 7.1 |
| Miscellaneous | |
| Compatibility | SuperServer:
|
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| Video | |
| Graphics Controller Model | AST2500 |
| Onboard Video | On-board Video Chipset |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Onboard Interfaces | |
| Number of SATA Interfaces | 10 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 3.0 Ports | 3 |
| Number of M.2 Interfaces | 1 |
| I/O Expansions | |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 4 |
| Total Number of Expansion Slots | 4 |
| Processor & Chipset | |
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket P LGA-3647 |
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
| I/O Controller | |
| RAID Levels | 0 |
| 10 | |
| 5 | |
| 1 | |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X11SPH-NCTF-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SPH-NCTF |
| Product Name | X11SPH-NCTF Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Memory | |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 8 |
| Memory Form Factor | DIMM |
| LRDIMM | |
| RDIMM | |
| Memory Speed Supported | 2400 MHz |
| 2133 MHz | |
| 1866 MHz | |
| 1600 MHz | |
| 2666 MHz |
