Q170/H110 chipset / Socket H4 Boards
Supermicro's single processor Socket H4 designs feature the Intel® Q170/H110 embedded chipset which support the Intel® 7th/6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0, PCI-E 3.0 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, VGA and DVI ports. Designed with performance, reliability, manageability and long life in mind Supermicro's single processor motherboards are the perfect solution for ATM, Kiosk, NVR/DVR Surveillance, Medical, Storage or Server appliance and many other embedded applications.
Supermicro's single processor Socket H4 designs feature the Intel® Q170/H110 embedded chipset which support the Intel® 7th/6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0, PCI-E 3.0 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, VGA and DVI ports. Designed with performance, reliability, manageability and long life in mind Supermicro's single processor motherboards are the perfect solution for ATM, Kiosk, NVR/DVR Surveillance, Medical, Storage or Server appliance and many other embedded applications.
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Compatible Intel Core i5 processor provides you with the solid performance to watch videos and play games, while its adaptability makes you more productive
Especificaciones técnicas
| Audio | |
| Audio Channels | 7.1 |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Miscellaneous | |
| Compatibility | Supermicro SuperChassis: 2U
|
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Video | |
| Graphics Controller Model | HD Graphics |
| Onboard Video | CPU Dependent Video |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |
| Interfaces/Ports | |
| HDMI | Yes |
| DVI | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 2133 MHz |
| 1866 MHz | |
| 1600 MHz | |
| General Information | |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | MBD-X11SSQ-L-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |

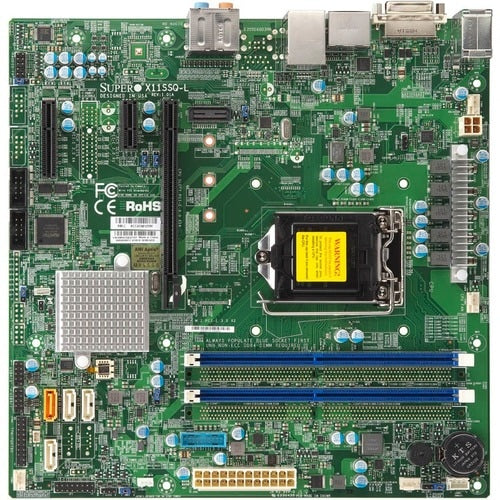

| Product Model | X11SSQ-L |
| Product Name | X11SSQ-L Desktop Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Processor & Chipset | |
| Processor Supported | Core i3 |
| Core i5 | |
| Core i7 | |
| Pentium | |
| Celeron | |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Chipset Manufacturer | Intel |
| Chipset Model | H110 |
