Acerca del producto
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX workstation motherboard
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- With 2 USB 2.0 ports, connect devices for a quick data movement
- With the compatible Intel Pentium processor, experience splendid PC performance; enjoy songs, movies and get your work completed concurrently
Especificaciones técnicas
| Miscellaneous | |
| Compatibility | Chassis 1U:
|
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Video | |
| Graphics Controller Model | AST2600 |
| Onboard Video | On-board Video Chipset |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| I/O Expansions | |
| Number of PCI Express x4 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 1 |
| Number of Onboard USB 3.2 Ports | 3 |
| I/O Controller | |
| RAID Levels | 5 |
| 10 | |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Processor & Chipset | |
| Processor Supported | Pentium |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Manufacturer | Intel |
| Chipset Model | C256 |
| Processor Generation Supported | 10th Gen |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 2666 MHz |
| 2933 MHz | |
| 3200 MHz | |
| General Information | |

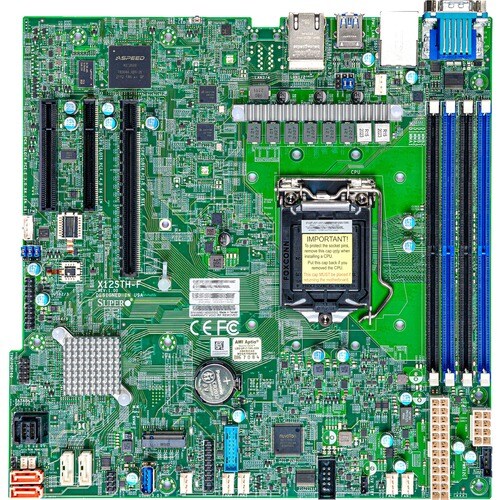

| Product Type | Workstation Motherboard |
| Manufacturer Part Number | MBD-X12STH-F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X12STH-F |
| Product Name | X12STH-F Workstation Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
