Major Benefits from Supermicro's in-house Design Superiority
Supermicro motherboard advantages:
- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
- Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Extended ATX server motherboard
- DDR3 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- With 4 USB 2.0 ports, connect devices for a quick data movement
- Supported 0 RAID levels provide data reliability and fault tolerance
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
Especificaciones técnicas
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Power Description | |
| Power Supply Supported | EPS12V |
| Video | |
| Graphics Controller Model | G200 |
| Onboard Video | On-board Video Chipset |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 13" (330.20 mm) |
| Depth | 12" (304.80 mm) |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | ACPI 2.0 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| I/O Expansions | |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 3.0 |
| Total Number of PCI Express Slots | 6 |
| Total Number of Expansion Slots | 6 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of SAS Interfaces | 8 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 7 |
| Onboard LEDs Header | Yes |
| Onboard Serial Header | Yes |
| Processor & Chipset | |
| Processor Supported | Xeon |
| Total Processor Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C606 |
| QuickPath Interconnect | 8 GT/s |
| I/O Controller | |
| RAID Levels | 5 |
| 1+0 | |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| Serial ATA/300 | |
| Serial Attached SCSI (SAS) | |
| RAID Supported | Yes |
| General Information | |

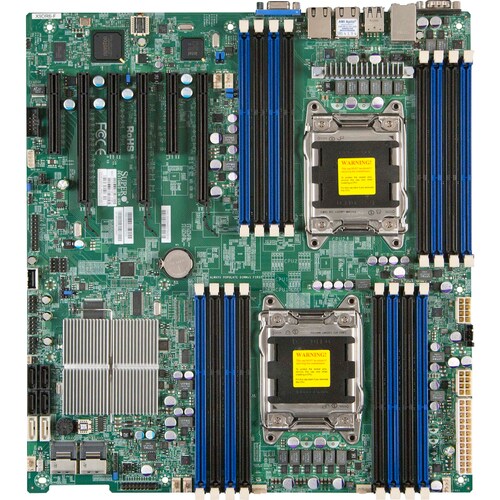

| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X9DR3-F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X9DR3-F |
| Product Name | X9DR3-F Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Audio Line In | No |
| Audio Line Out | No |
| Serial Port | Yes |
| Microphone Port | No |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 4 |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| DDR3-1333/PC3-10600 | |
| DDR3-800/PC3-6400 | |
| DDR3-1066/PC3-8500 | |
| Number of Memory Slots | 16 |
| Memory Form Factor | RDIMM |
| UDIMM | |
| Memory Speed Supported | 800 MHz |
| 1333 MHz | |
| 1066 MHz | |
| 1600 MHz |
