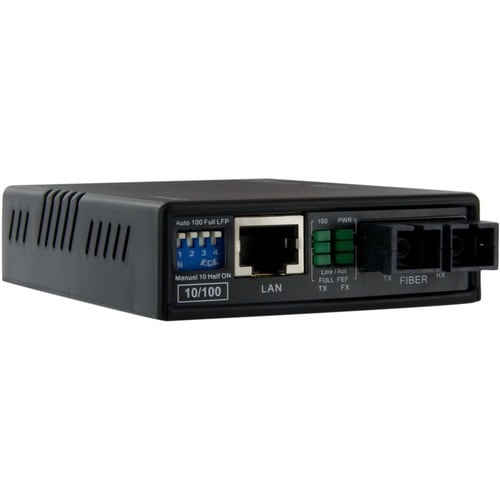

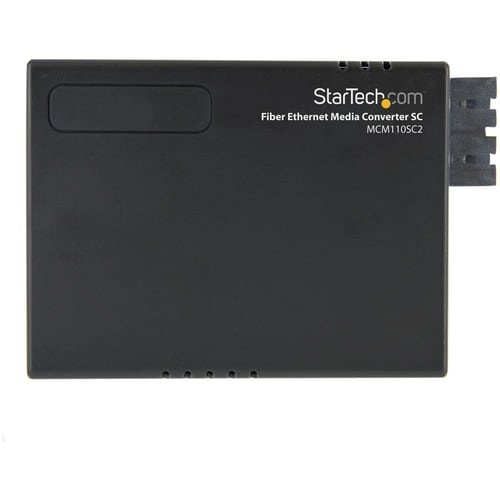

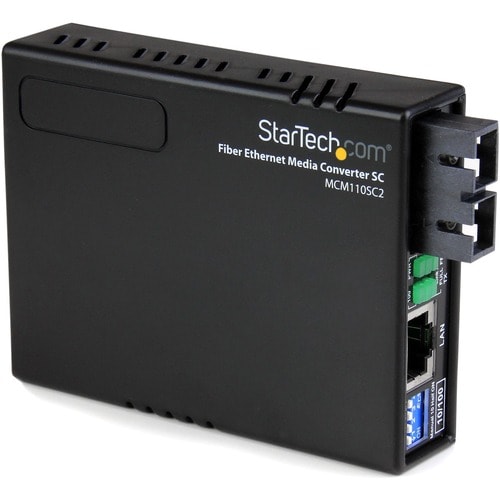

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Supports a maximum multi mode fiber optic cable distance of 2 km
- Compatible with most 3com, Cisco, Lucent and Nortel networks
- Compact design
- Supports transparent Q-in-Q double tagged frames
- Supports Link Fault Pass through (LFP)
- Supports IEEE 802.1q Tag VLAN pass thru
- Supports flow control (Pause)
- Provides switch configuration of half/full duplex transfer mode for FX port
- LED Indicators for simple Ethernet/Fiber network link monitoring
- Forward 9K jumbo packets in converter mode
Especificaciones técnicas
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 2.40 W |
| Plug/Connector Type | Type M |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
| Miscellaneous | |
| Additional Information |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Network & Communication | |
| Network Technology | 10Base-T |
| 100Base-TX | |
| 100Base-FX | |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Physical Characteristics | |
| Weight (Approximate) | 3 oz (85.05 g) |
| Form Factor | External |
| Height | 0.80" (20.32 mm) |
| Width | 3" (76.20 mm) |
| Depth | 3.70" (93.98 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | MCM110SC2 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km |
| Brand Name | StarTech.com |
