Acerca del producto
A cost-effective extension and flexible performance

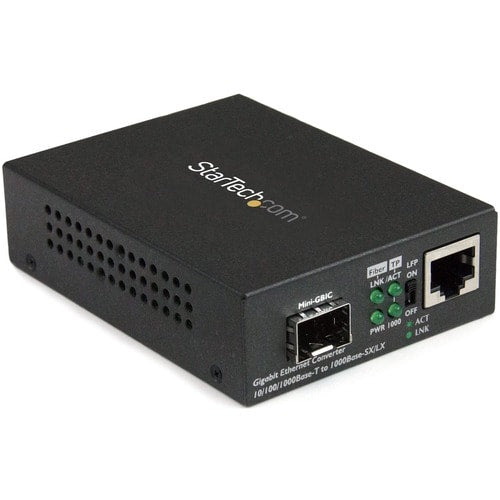

The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.
A versatile way to connect different networks
Fully compatible with10/100/1000Base-T Ethernet networks, thefiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network.It provides versatile connectivity to your existing networks and devices, allowing you tomaximize the usage and performance of legacy equipment.
Installation is fast and easy
The unmanagedfiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.
The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer

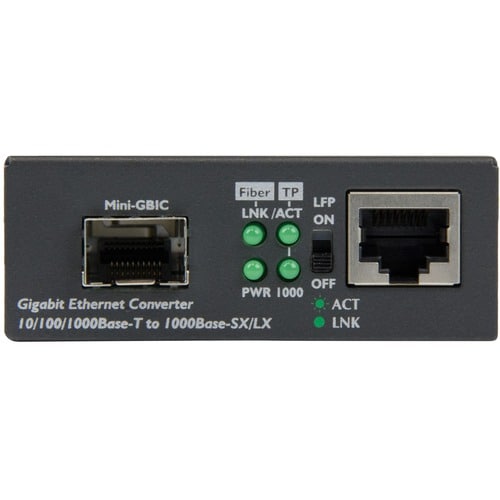

- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver
- 10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
- Compact standalone design and wall mounting option for easy and convenient installation
- Link Fault Pass (LFP) supported
- Durable metal housing
- Auto MDIX
- Supports IEEE 802.1q Tag VLAN pass through
- 9K Jumbo Frame supported
Especificaciones técnicas
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Power Description | |

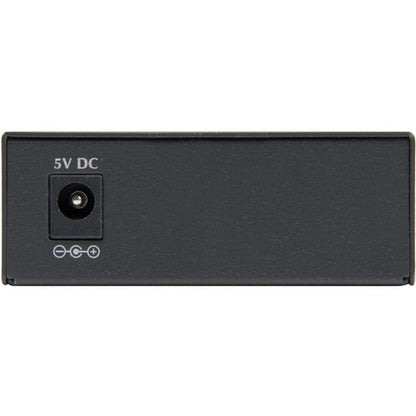

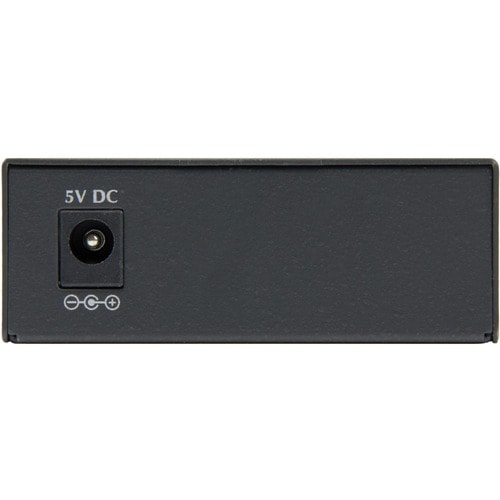

| Power Source | AC Adapter |
| Power Consumption | 10 W |
| Plug/Connector Type | Type N |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Single-mode |
| Multi-mode | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | No |
| Total Number of Ports | 1 |
| Network & Communication | |
| Network Technology | 1000Base-LX |
| 1000Base-SX | |
| 10Base-T | |
| 1000Base-T | |
| 100Base-TX | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 6.50 oz (184.27 g) |
| Form Factor | Wall Mountable |
| Desktop | |
| Height | 1" (25.40 mm) |
| Width | 2.80" (71.12 mm) |
| Depth | 3.70" (93.98 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | MCM1110SFP |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Gigabit Ethernet Fiber Media Converter with Open SFP Slot |
| Brand Name | StarTech.com |
